FNIRSI MRT-1050 Insulation Resistance Tester 1000V 20G Ω Megohmmeter With AC/DC Voltage Measurement Capability
FNIRSI MRT-1050 Insulation Resistance Tester 1000V 20G Ω Megohmmeter With AC/DC Voltage Measurement Capability
Couldn't load pickup availability
FNIRSI MRT-1050 Insulation Resistance Tester – Specifications
General
-
Model: FNIRSI MRT-1050
-
Type: Digital Insulation Resistance Tester (Megohmmeter)
-
Certification: CE
Power Supply
-
8 × AA 1.5V batteries
-
External DC 12V power input
Display
-
Digital Display

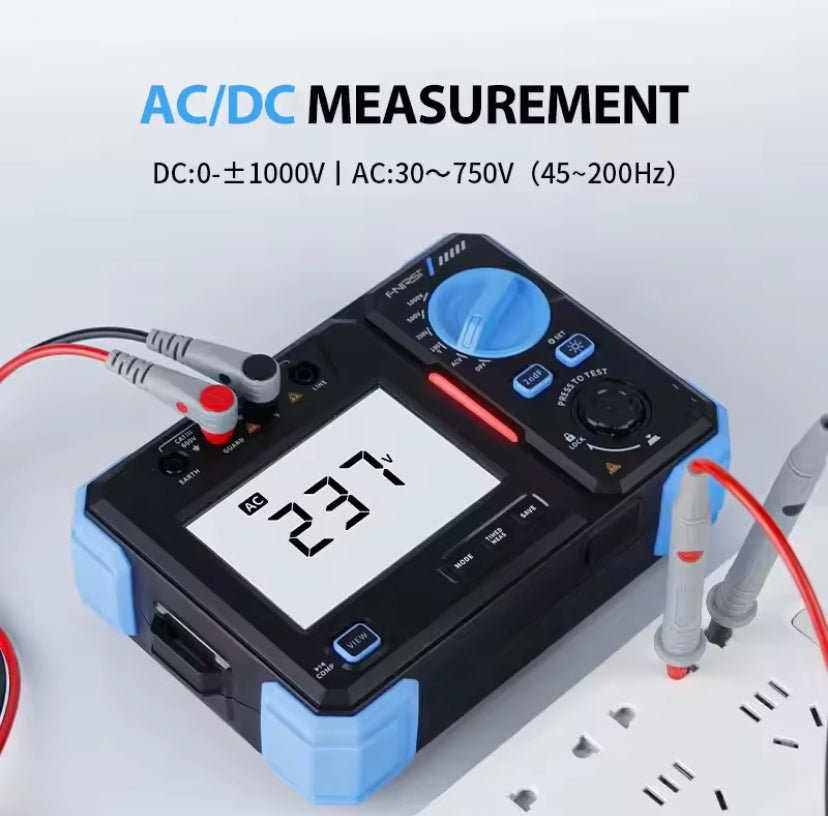

Voltage Measurement
-
DC Voltage Range: 0 – 1000 V
-
AC Voltage Range: 30 – 750 V (45 – 200 Hz)
-
Resolution: 1 V
-
Accuracy: ±(2% + 3 digits)
Insulation Resistance Measurement
| Test Voltage | Measurement Range | Accuracy |
|---|---|---|
| 100 V | 0.1 MΩ – 200 MΩ | ±(5% + 3 digits) |
| 250 V | 0.1 MΩ – 2 GΩ | ±(5% + 3 digits) |
| 500 V | 0.5 MΩ – 5 GΩ | ±(5% + 3 digits) |
| 1000 V | 3 MΩ – 20 GΩ | ±(5% + 3 digits) |
Features
-
Multiple insulation test voltages (100V / 250V / 500V / 1000V)
-

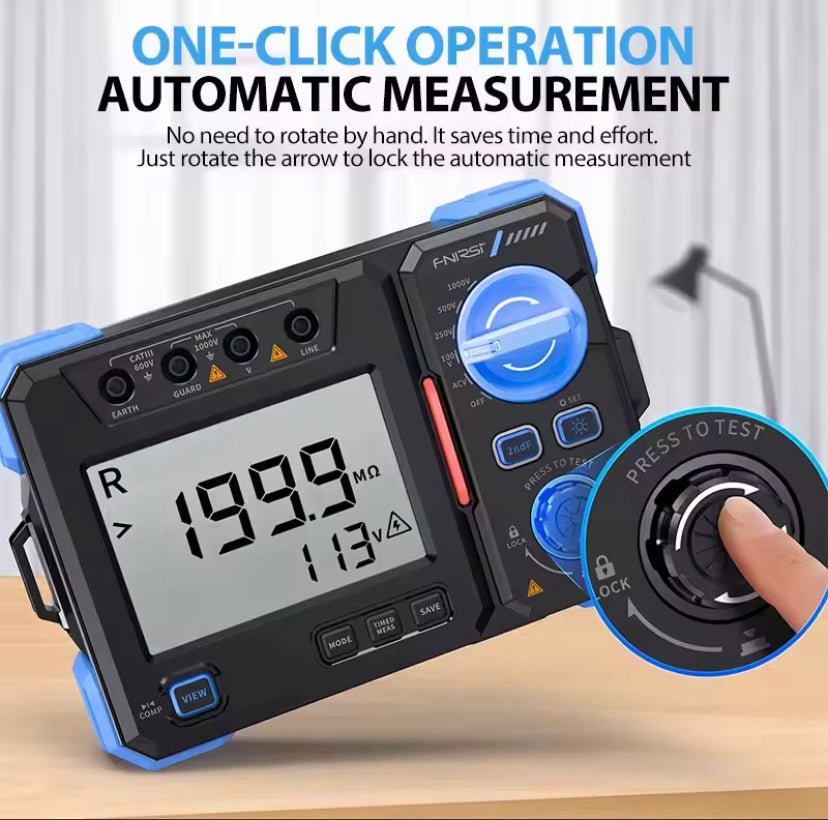

One-button automatic measurement
-

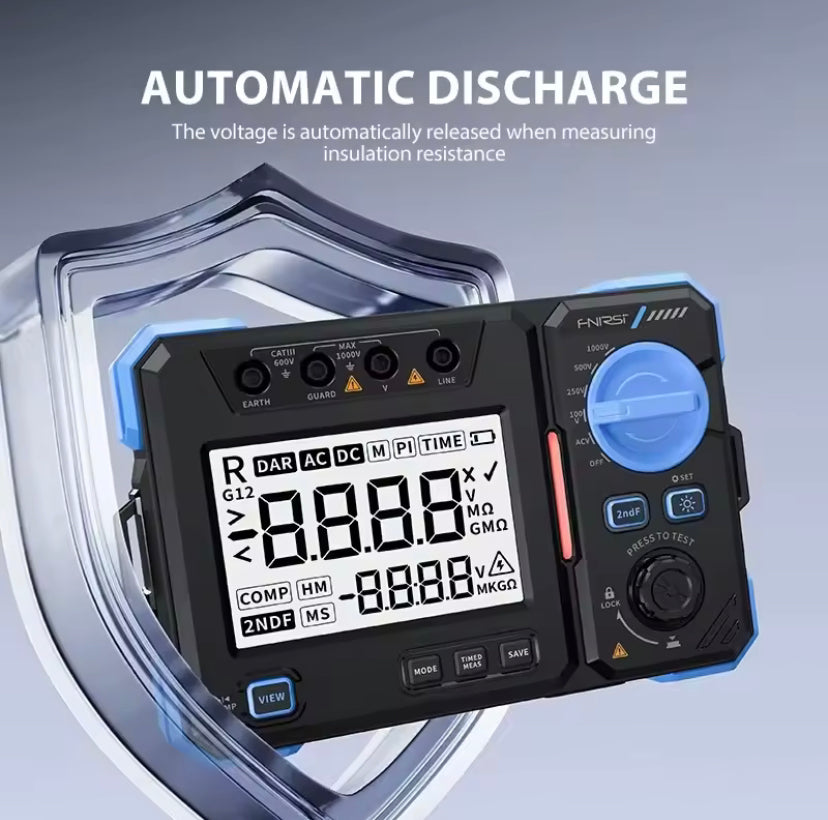

Automatic voltage discharge after testing
-
Over-range indication
-
High-voltage warning
-
Low battery indication
-
Backlight display
Physical Specifications
-
Dimensions: 182 × 124 × 66 mm
-
Weight: Approximately 684 g
