HoldPeak 6013L Handheld Digital capacimetro Electronics Capacitance Meter Electronic Electronica Capacitor Tester Capacimetro Digital Meter

HoldPeak DM6013L Specifications

Display & Basic Info

• Display: 3½ digit LCD
• Max count: 1999
• Backlight: Yes
• Data hold: Yes
• Auto polarity: Yes
• Auto zero: Yes
• Low battery indication: Yes

Measurement (Capacitance)

• Range: 0.1 pF to 20,000 µF (20 mF)

Accuracy

• 200 pF to 200 µF: ±(0.5% + 20 digits)
• 2000 µF: ±(2.0% + 20 digits)
• 20 mF: ±(4.0% + 20 digits)

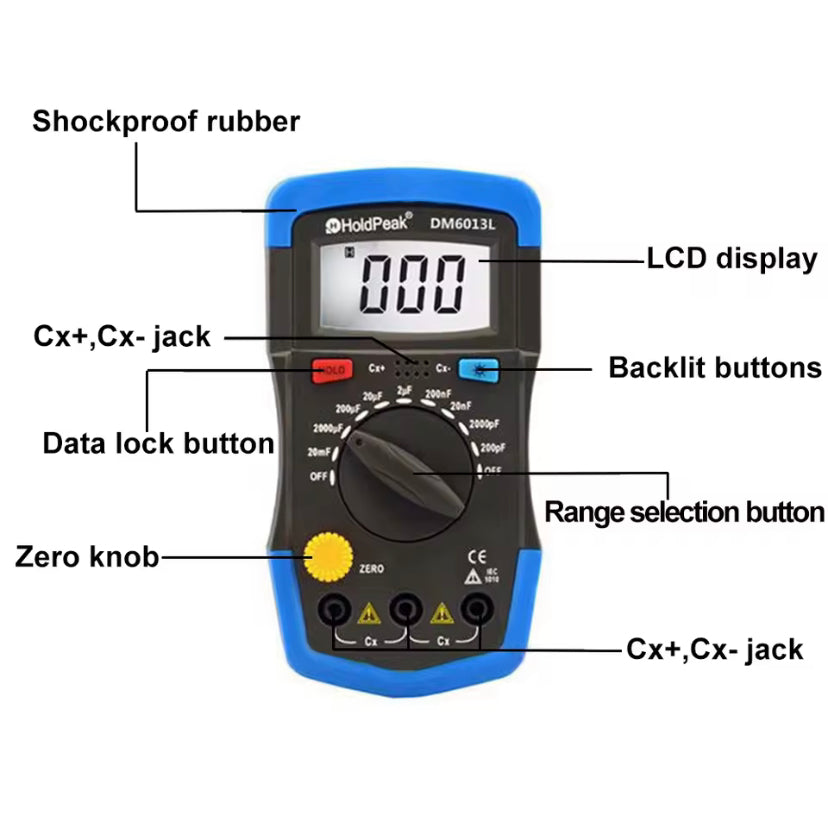

Features

• 9 measurement ranges

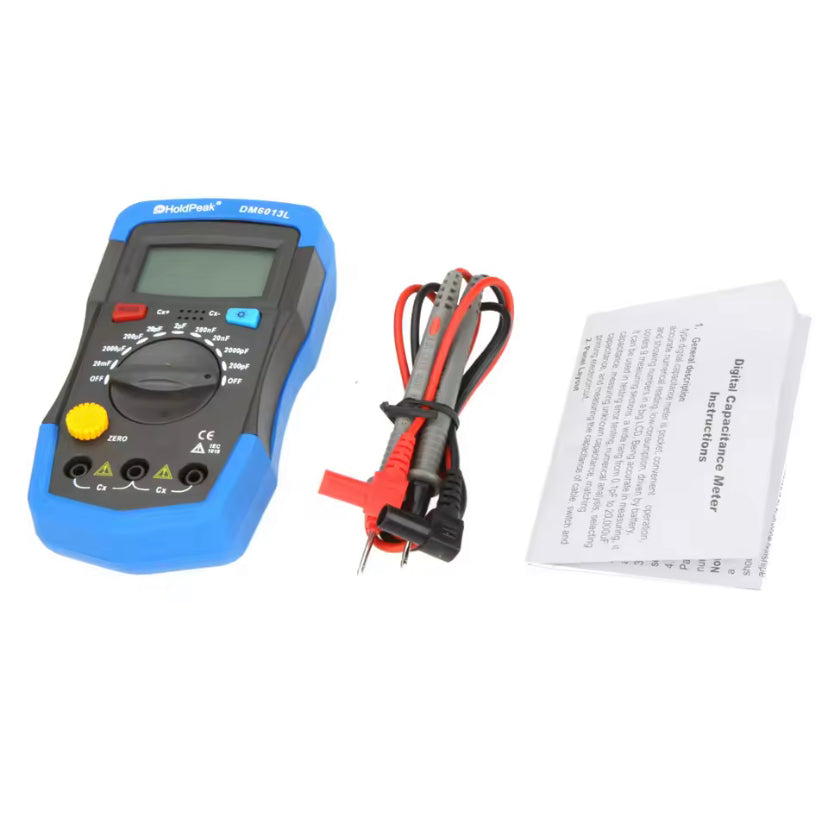

• Test leads and capacitor test socket
• Over-range indication
• Portable handheld design
• Protective casing

Power

• 9V battery (6F22)

Physical

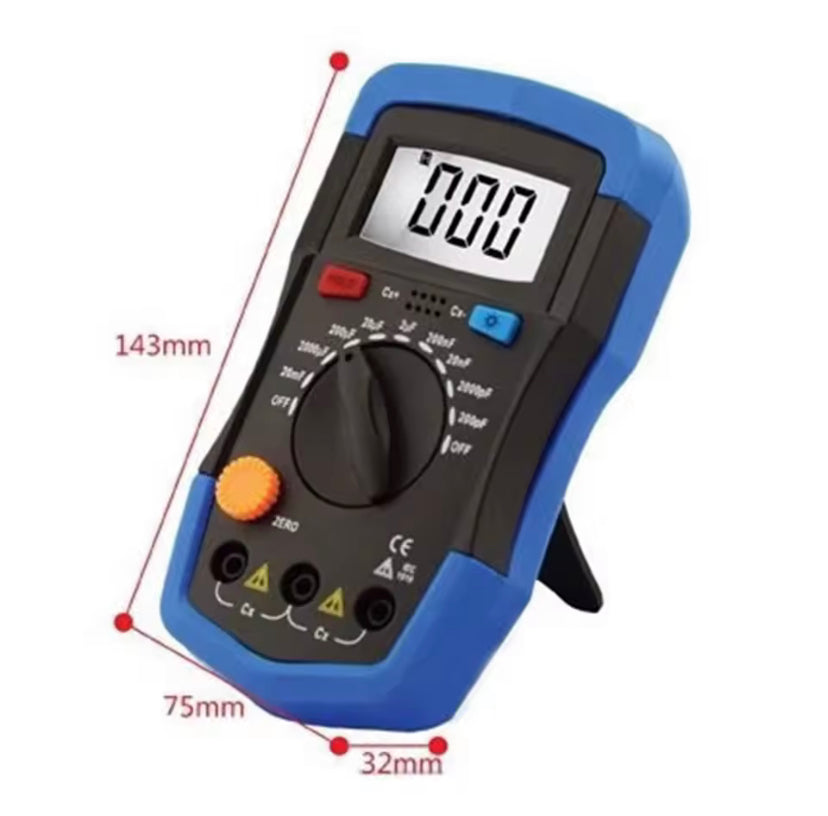

• Size: approx. 143 × 75 × 32 mm
• Weight: approx. 150–200 g
