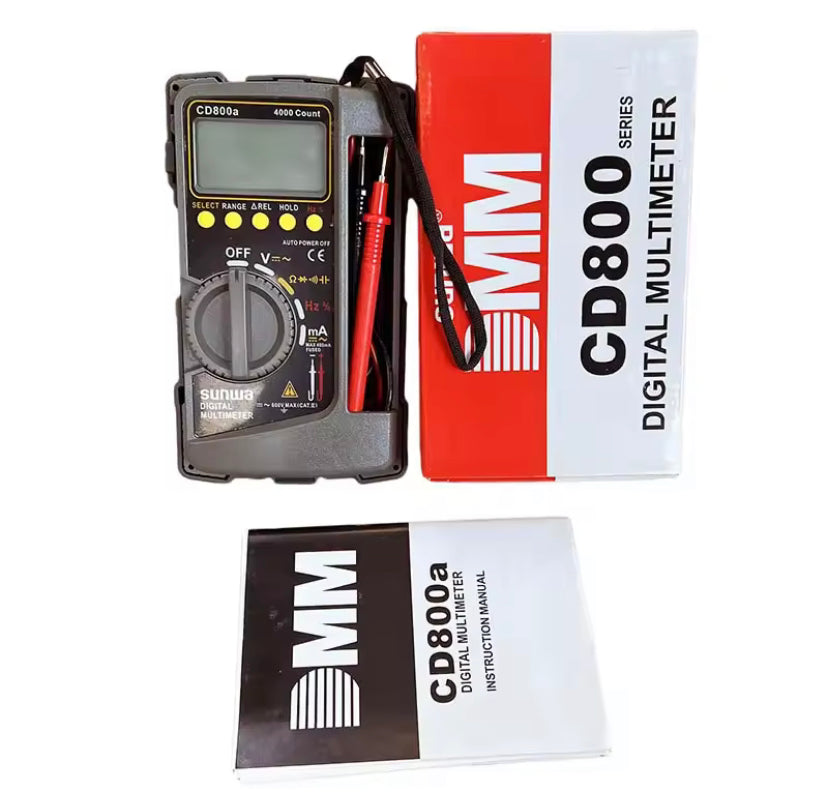

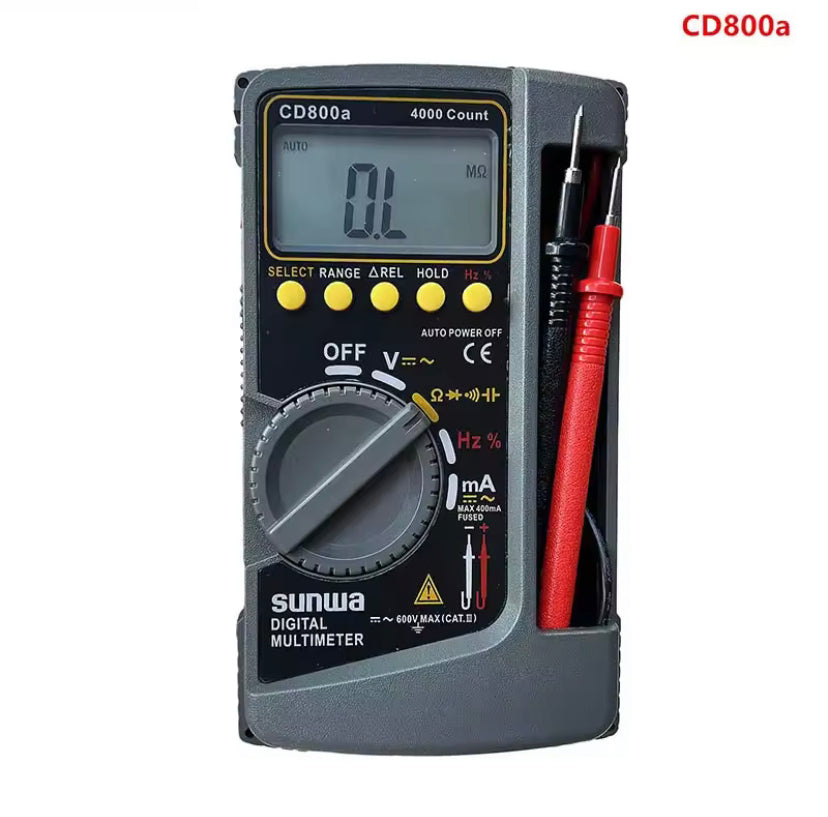

🔧 CD800a Digital Multimeter – Electrical Capacitance & Frequency Measurement
✅ Key Features
-
4000-count high-contrast LCD display
-
Measures DC/AC voltage and current, resistance, frequency, duty cycle, capacitance, diode, and continuity
-
Auto-ranging and manual range selection
-
Data-Hold, Relative Zero, and Auto Power-Off (30 min)
-
Fast-response continuity buzzer and low-voltage resistance testing for semiconductor safety
-

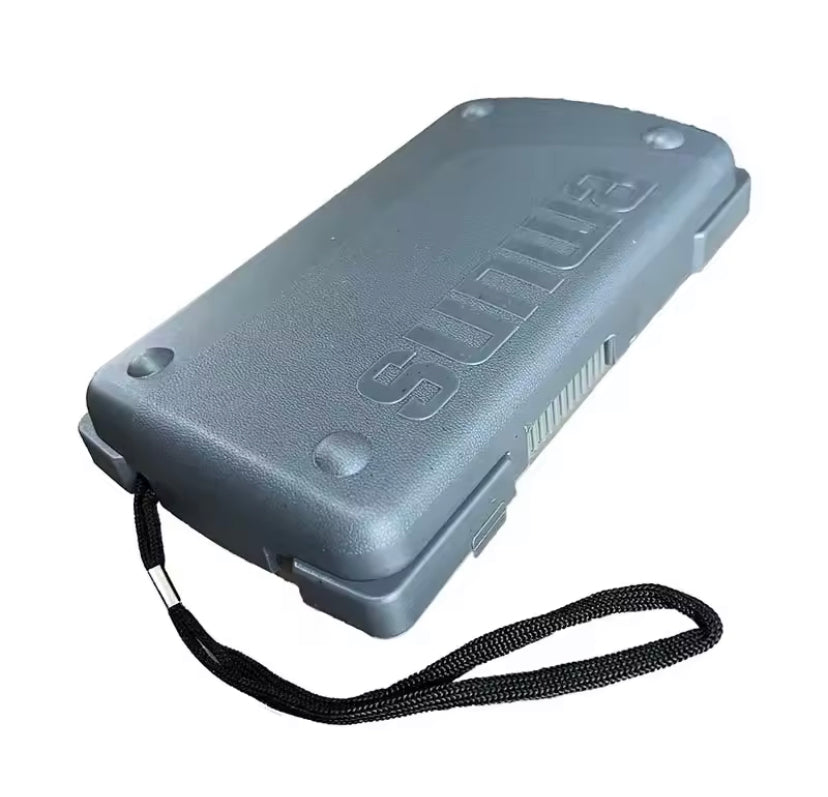

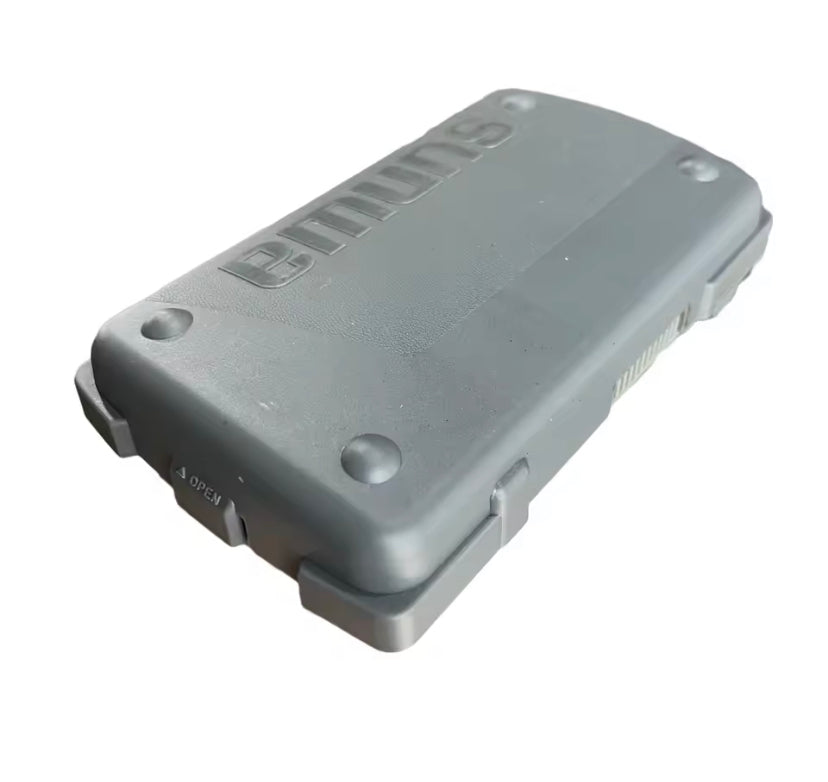

Protective hard case with tilt-stand and included hand strap
-
Built-in chip holder for small component testing
-
CAT III 600V safety rating
📊 Technical Specifications
Function | Range | Accuracy | Resolution |
---|---|---|---|
DC Voltage | 0.4V – 600V | ±(0.7% + 3 digits) | 0.1mV |
AC Voltage | 4V – 600V | ±(1.6% + 5 digits) | 0.001V |
DC Current | 40mA / 400mA | ±(2.2% + 5 digits) | 0.01mA |
AC Current | 40mA / 400mA | ±(2.8% + 5 digits) | 0.01mA |
Resistance | 400Ω – 40MΩ | ±(1.2% + 5 digits) | 0.1Ω |
Capacitance | 50nF – 100μF | ±(5% + 10 digits) | 0.01nF |
Frequency | 5Hz – 100kHz | ±(0.5% + 3 digits) | 1Hz |
Duty Cycle | 20% – 80% | ±(0.5% + 5 digits) | 0.1% |
⚙️ Physical & Power
-
Display: 4000 counts, 17.5 mm digit height
-
Dimensions: 176 × 104 × 46 mm
-
Weight: Approx. 340 g
-
Power Supply: 2 × AA batteries
-
Battery Life: Up to 500 hours
-

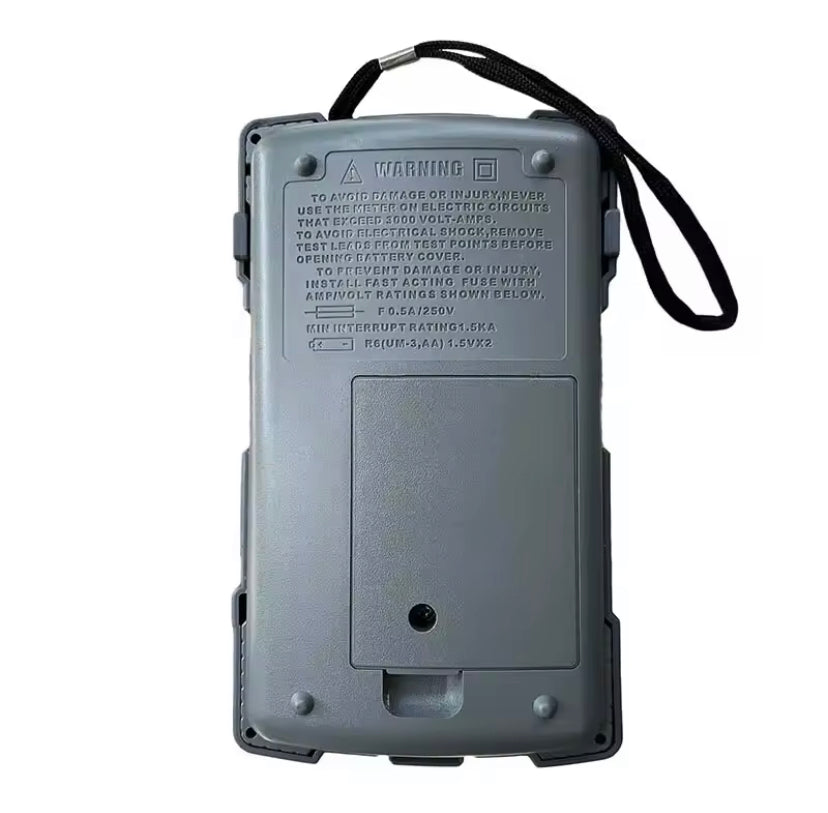

Fuse: 0.5A / 250V ceramic fuse
-
AC Frequency Range: 40 – 400Hz
-
Overload Protection: Yes
-
Operating Temp: 0°C to 40°C
