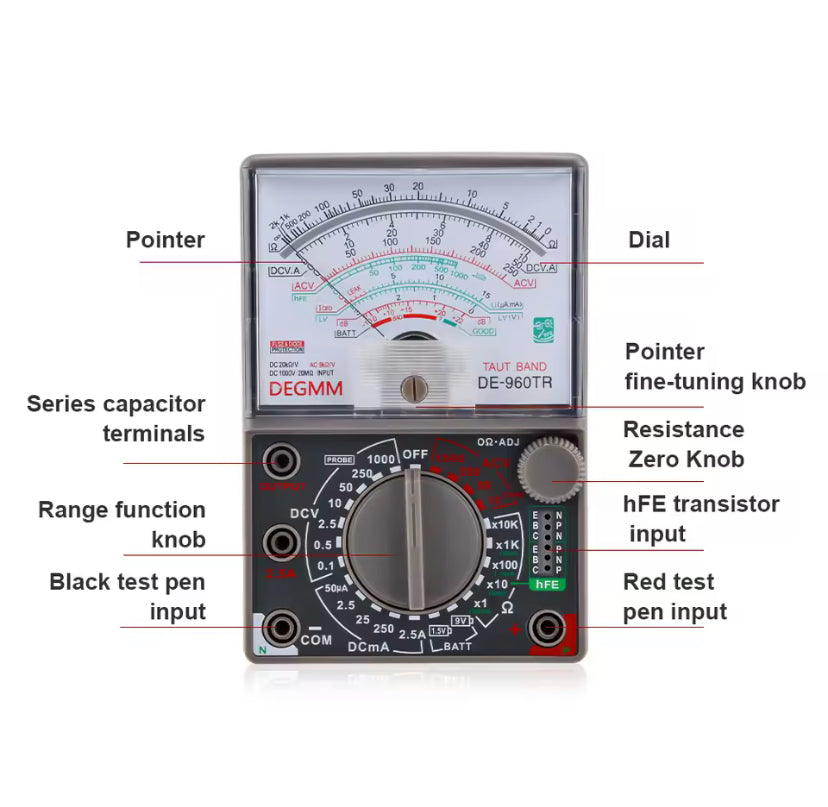

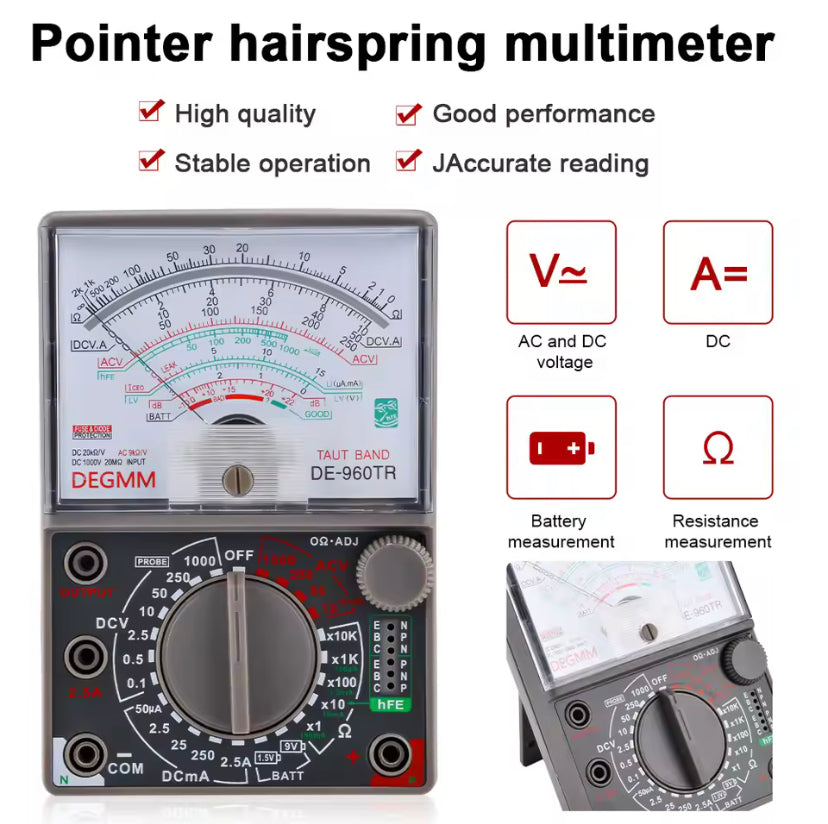

DE-960TR Pointer Mechanical Analog Multimeter Multi-Function AC DC Volt Ohm Current Electrician Maintenance Universal Test Meter

General Features

• Model: DE-960TR

• Type: Analog (pointer) multimeter for AC/DC voltage, current, resistance measurement.

• Body material: Plastic + metal components.

• Dimensions: approx. 152 mm (L) × 100 mm (W) × ~32-38 mm (H).

• Weight: around 250-312 g depending on version.

• Power supply: 2 × AA (1.5 V) batteries or 1 × 9 V battery (depending on variant).

Measurement Ranges

DC Voltage (V dc):

• 0.1 V, 0.5 V, 2.5 V, 10 V, 50 V, 250 V, 1000 V

AC Voltage (V ac):

• 10 V, 50 V, 250 V, 1000 V

DC Current (A dc):

• 50 μA, 2.5 mA, 25 mA, 250 mA

Resistance (Ω):

• Ranges: ×10, ×1K, ×10K etc (e.g., 0-2 kΩ, 0-20 kΩ, 0-200kΩ, 0-2 MΩ, 0-20 MΩ)

Accuracy & Other Specs

• DC voltage accuracy (typical): ±3% of full scale (for many ranges)

• AC voltage accuracy: ±4% of full scale (typical)

• Input impedance for DC voltage: approx. 20 kΩ/V

• Input impedance for AC voltage: approx. 9 kΩ/V

• Operating temperature: 0 °C to 40 °C (at ≤80% RH, no condensation)

• Storage temperature: –10 °C to +50 °C (at ≤80% RH, no condensation)
