ET8102 Handheld Digital 6000 Counts Multimeter 750~1000V AC/DC Smart True Rms Multimeter Electrician Measurement Repair Tools

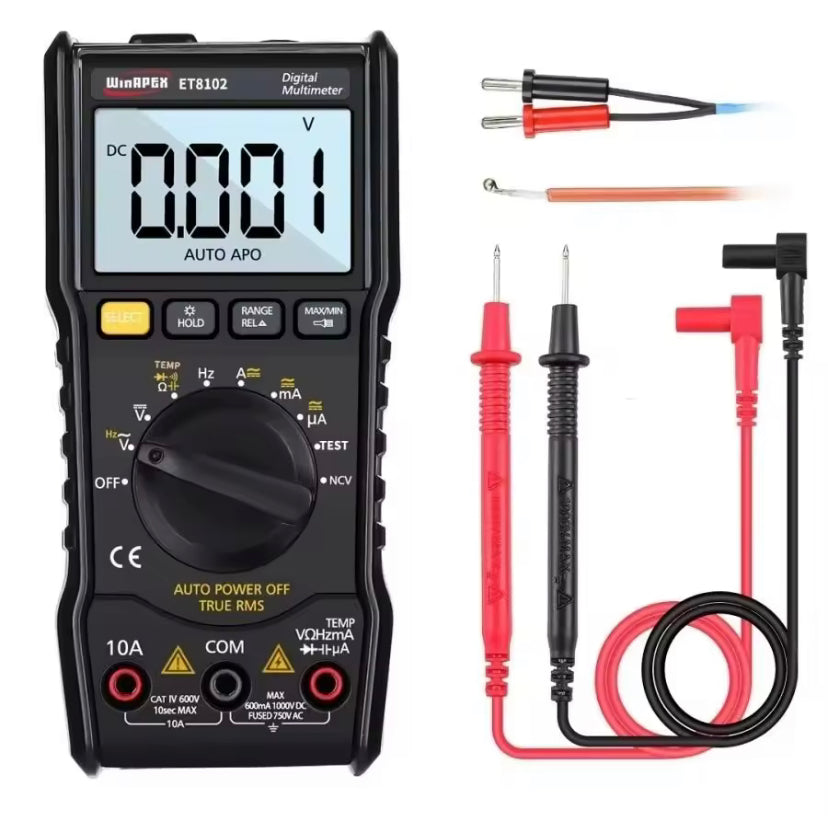

ET8102 Handheld Digital Multimeter — 6000 Counts

General

• 6000-count LCD display with backlight

• True RMS

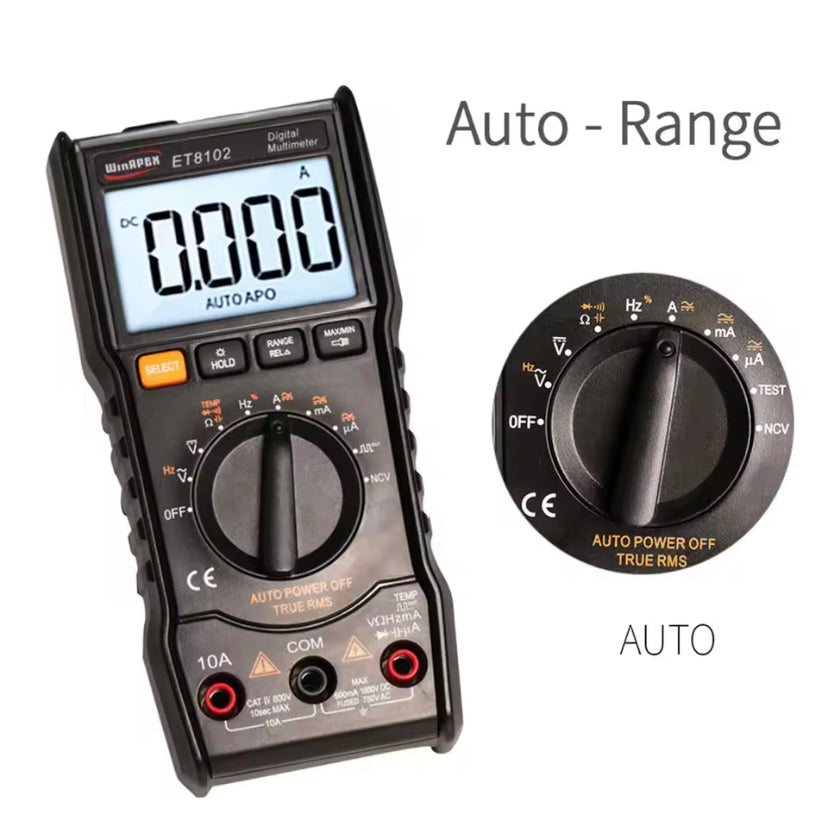

• Auto-range with manual range option

• Data Hold

• MAX / MIN recording

• Auto power-off

• Low battery indication

• Over-range indication

• Continuity buzzer

• Diode test

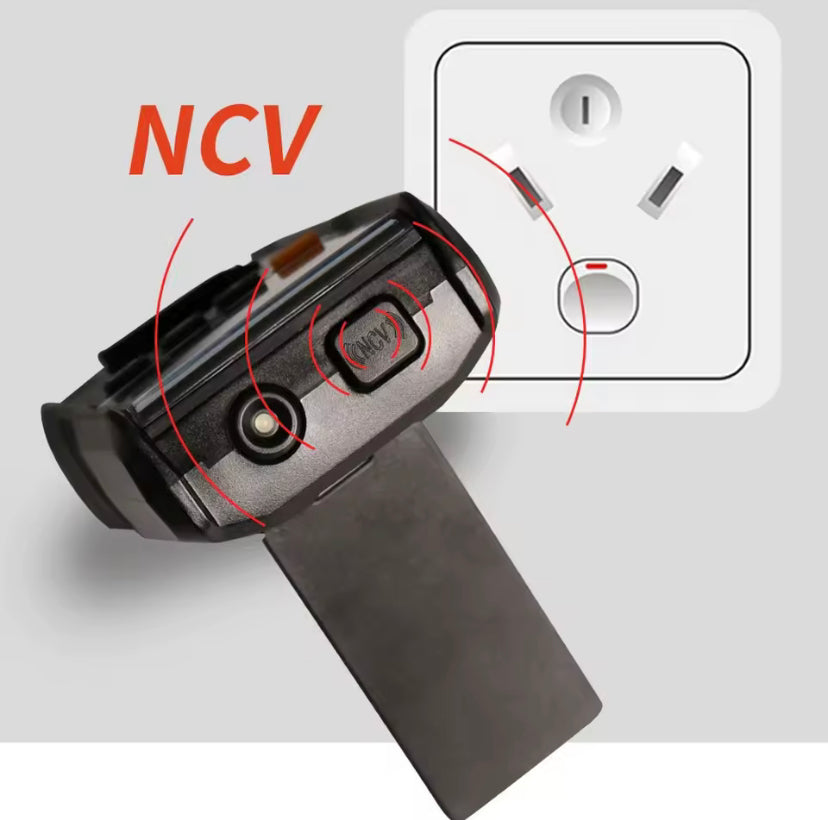

• Non-Contact Voltage (NCV) detection

• Live wire (line/neutral) detection

• Built-in LED flashlight

• Square-wave output function

• Safety rating: CAT III 600 V (typical)

Voltage

• DC Voltage: up to 1000 V
  Resolution down to 0.001 V

• AC Voltage: up to 750 V

Current

• DC Current: µA / mA ranges up to 10 A

• AC Current: µA / mA ranges up to 10 A

Resistance

• 600 Ω – 40 MΩ

Capacitance

• 60 nF – 30 mF

Frequency & Duty Cycle

• Frequency: 10 Hz – 10 MHz

• Duty cycle: 0.1 % – 99 %

Temperature

• −20 °C to 1000 °C (with probe)

Accuracy (Typical)

• DC Voltage: ±(0.5% + 3)

• AC Voltage: ±(1.0% + 3)

• DC Current: ±(1.2% + 10)

• AC Current: ±(1.5% + 10)

• Resistance: ±(0.8% + 5)

• Capacitance: ±(3% to 5%)

• Frequency: ±(0.1% + 3)

Power & Physical

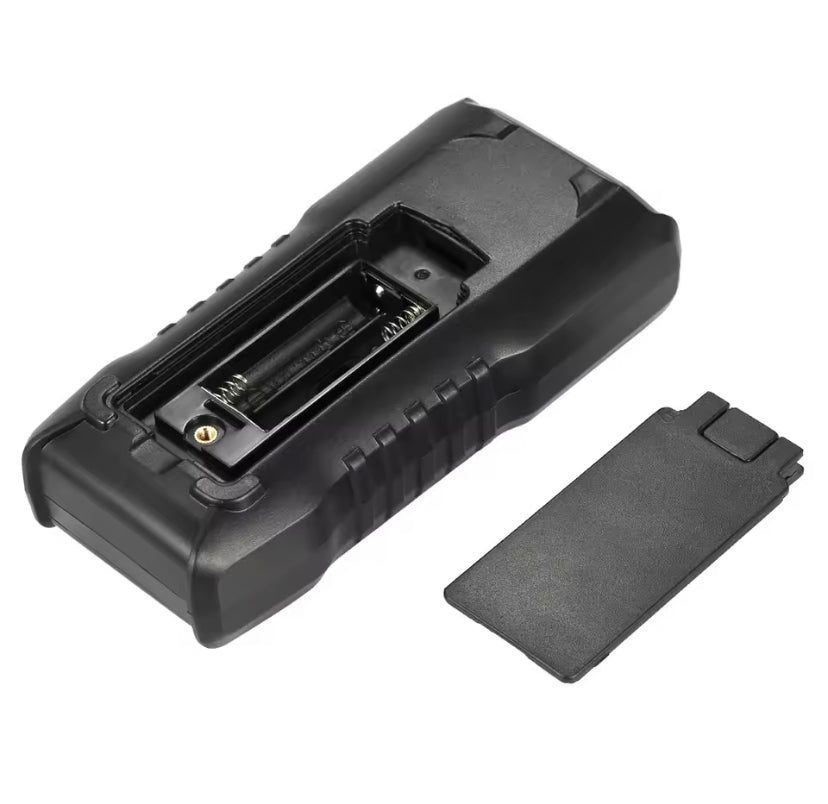

• Power: 2 × AAA batteries

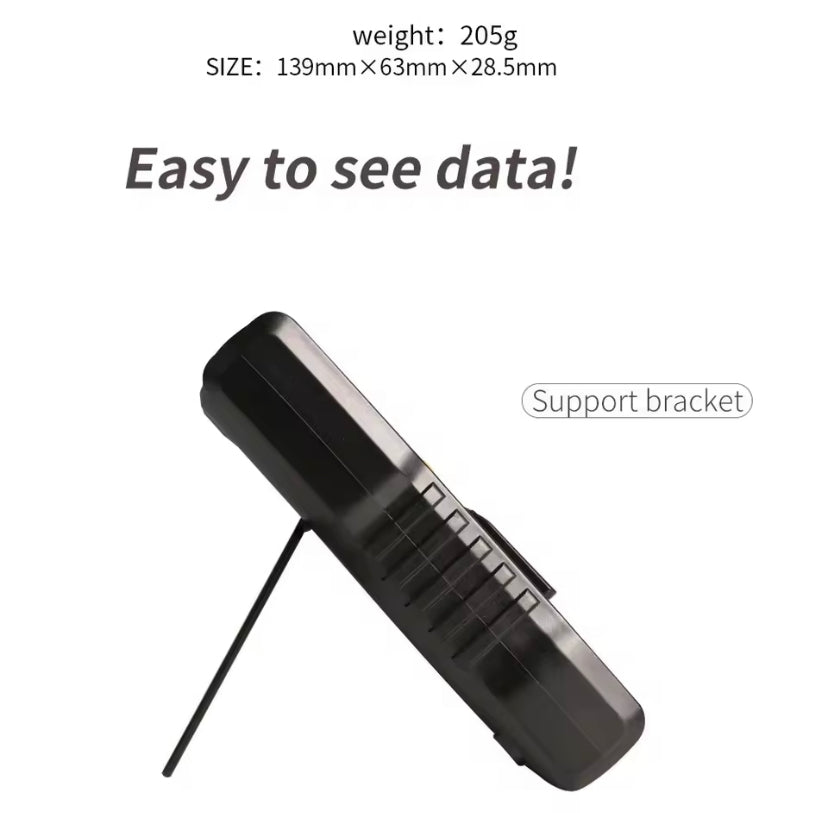

• Size: approx. 142 × 70 × 32 mm

• Weight: approx. 180–210 g

• ABS plastic housing with protective sleeve
