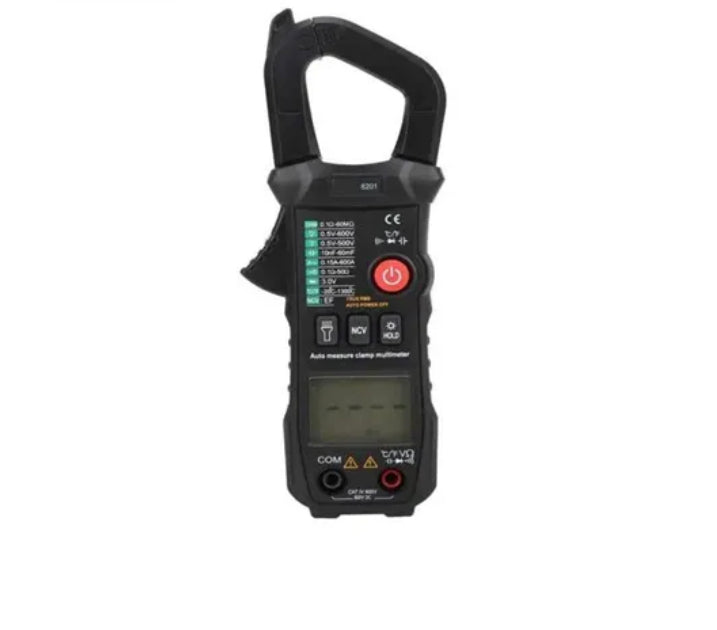

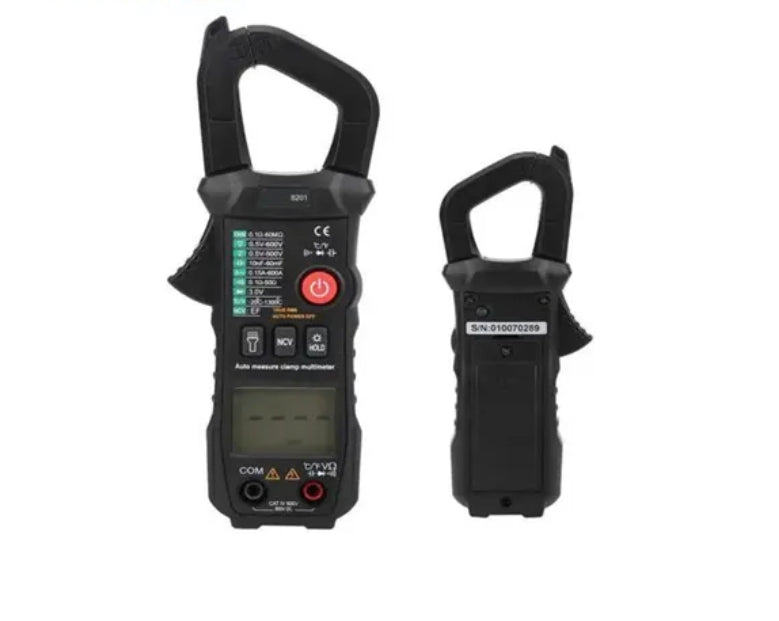

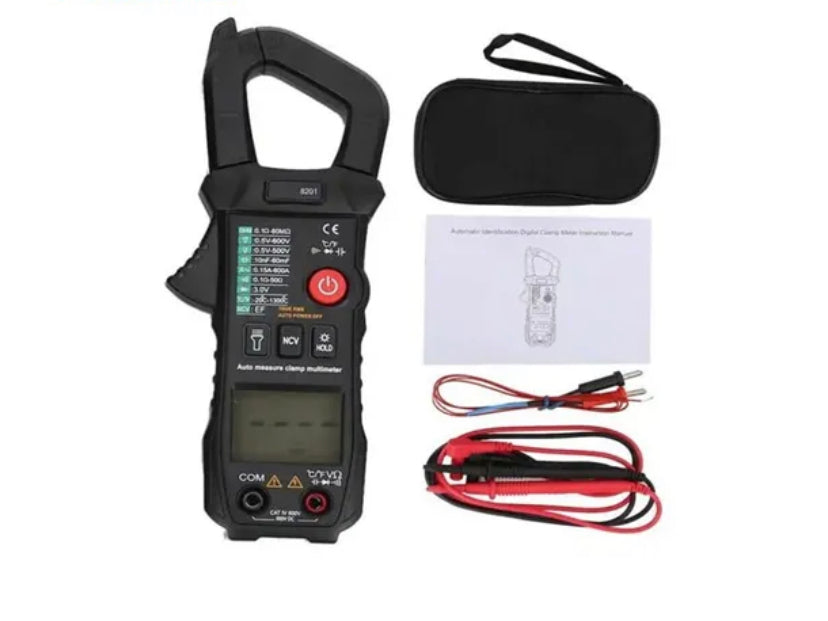

WINAPEX ET8201 600A 600V AC Clamp Meter Intelligent Automatic Identification High Accuracy Multimeter Ammeter
WINAPEX ET8201 600A 600V AC Clamp Meter Intelligent Automatic Identification High Accuracy Multimeter Ammeter
Regular price
Rs.7,500.00 PKR
Regular price
Sale price
Rs.7,500.00 PKR
Unit price
per
Couldn't load pickup availability
General Features
-
Digital clamp meter with auto-range capability.
-
Display: 5999-count resolution.
-
Measurement mode: True RMS.
-
Jaw opening (for clamp): approx. 55 mm.
-
Power supply: 2 × AAA batteries (1.5 V each).
-
Dimensions: approx. 176 × 67 × 33 mm.
-
Weight: approx. 300 g.
Measurement Ranges & Accuracy
| Parameter | Range | Accuracy |
|---|---|---|
| DC Voltage | 0.1 mV – 700 V | ±(0.5% + 3) |
| AC Voltage | 0.1 mV – 750 V | ±(0.8% + 10) |
| DC Current | 0.1 A – 600 A | ±(2.5% + 30) |
| AC Current | 0.1 A – 600 A | ±(2.5% + 30) |
| Resistance | 0.1 Ω – 60 MΩ | ±(1.2% + 3) |
| Capacitance | 1 nF – 60 mF | ±(4.0% + 5) |
| Temperature (with probe) | –20 °C to 1000 °C | ±(1.0% + 3 °C) |
| Diode Test | Yes | — |
| Continuity Test | Yes (buzzer if < 50 Ω) | — |
Additional Features
-
Non-contact voltage (NCV) detection is included.
-
Backlight display.
-
Flashlight/torch function built-in.
-
Auto power-off when idle.
-
Low‐battery indicator.
-
Overload protection.
