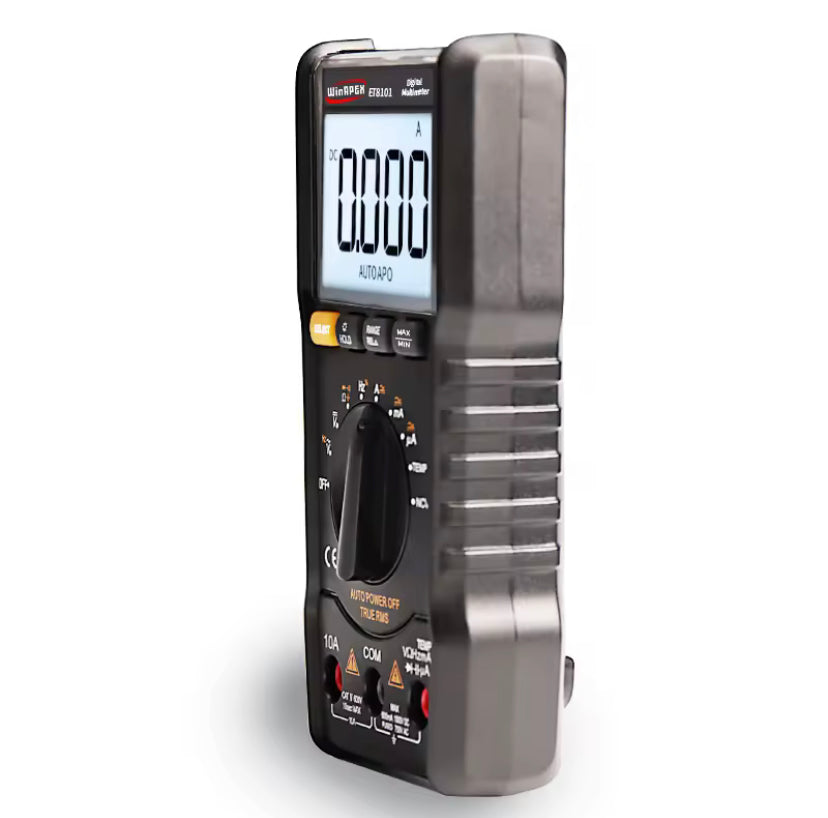

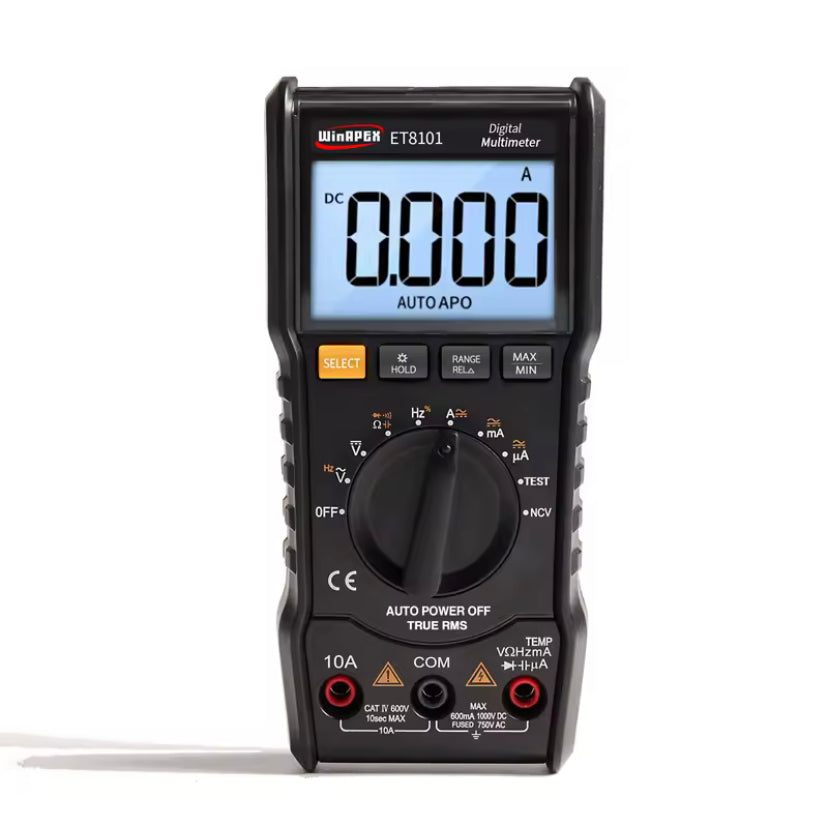

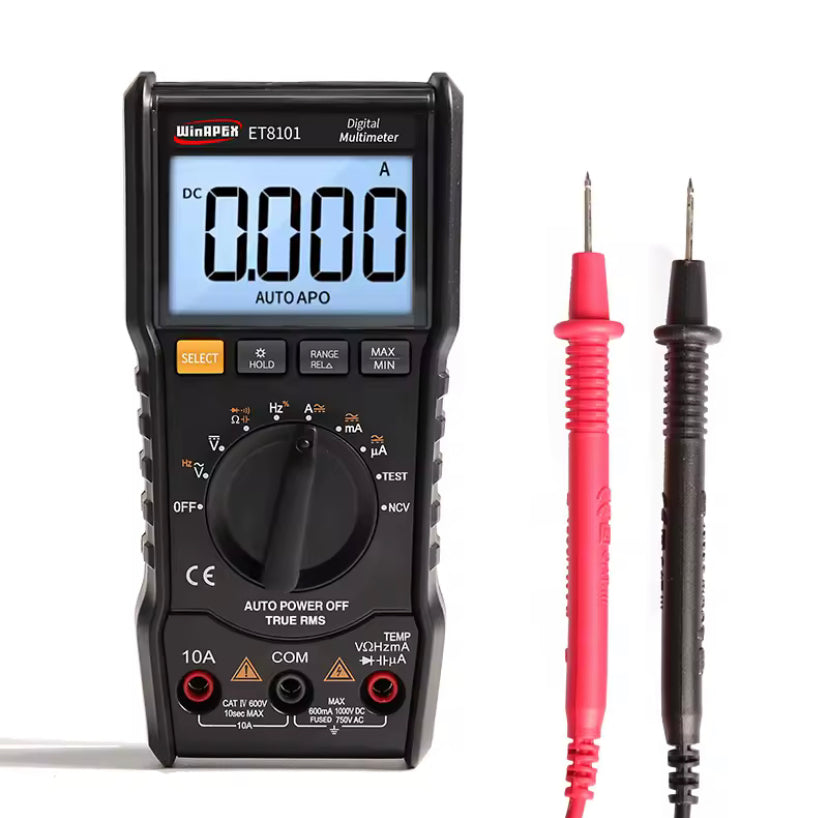

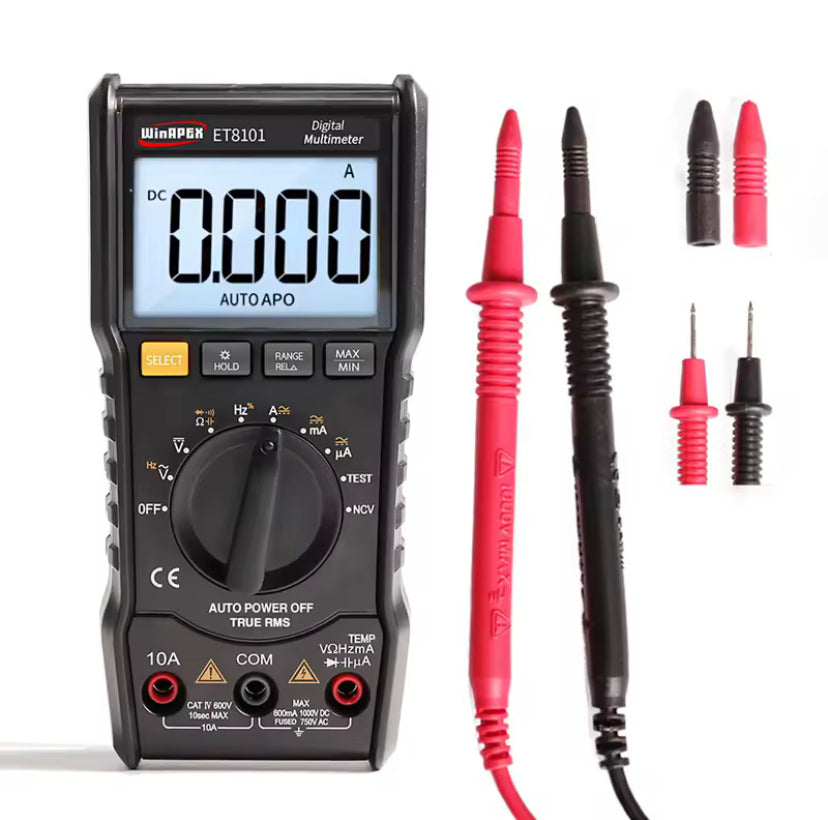

ET8101 AutoRange Digital Multimeter 6000 Counts True RMS LCD Digital Voltmeter 1000V 10A AC/DC Smart Ammeter Pocket Multimeters Buzzer

ET8101 Auto-Range Digital Multimeter — Specifications

General

• 6000-count LCD display with backlight

• Auto-range and manual range

• True RMS

• Data hold

• MAX / MIN measurement

• Auto power-off

• Low battery indicator

• Overload protection

• Continuity buzzer

• Diode test

• Non-Contact Voltage (NCV) detection

• Live wire (line/neutral) detection

• Sampling rate: approx. 3 readings/sec

• Safety rating: CAT III 600 V (typical)

Voltage

• DC Voltage: up to 1000 V
  Resolution down to 0.001 V

• AC Voltage: up to 750 V

Current

• DC Current: µA / mA ranges up to 10 A

• AC Current: µA / mA ranges up to 10 A

Resistance

• 600 Ω to 40 MΩ

Capacitance

• 60 nF to 30 mF

Frequency & Duty Cycle

• Frequency: approx. 10 Hz to 10 MHz

• Duty cycle: approx. 0.1 % to 99 %

Accuracy (Typical)

• DC Voltage: ±(0.5% + 3)

• AC Voltage: ±(1.0% + 3)

• DC Current: ±(1.0% + 3)

• AC Current: ±(1.5% + 5)

• Resistance: ±(1.0% + 3)

• Capacitance: ±(3.0% + 5)

• Frequency: ±(0.1% + 2)

Power & Physical

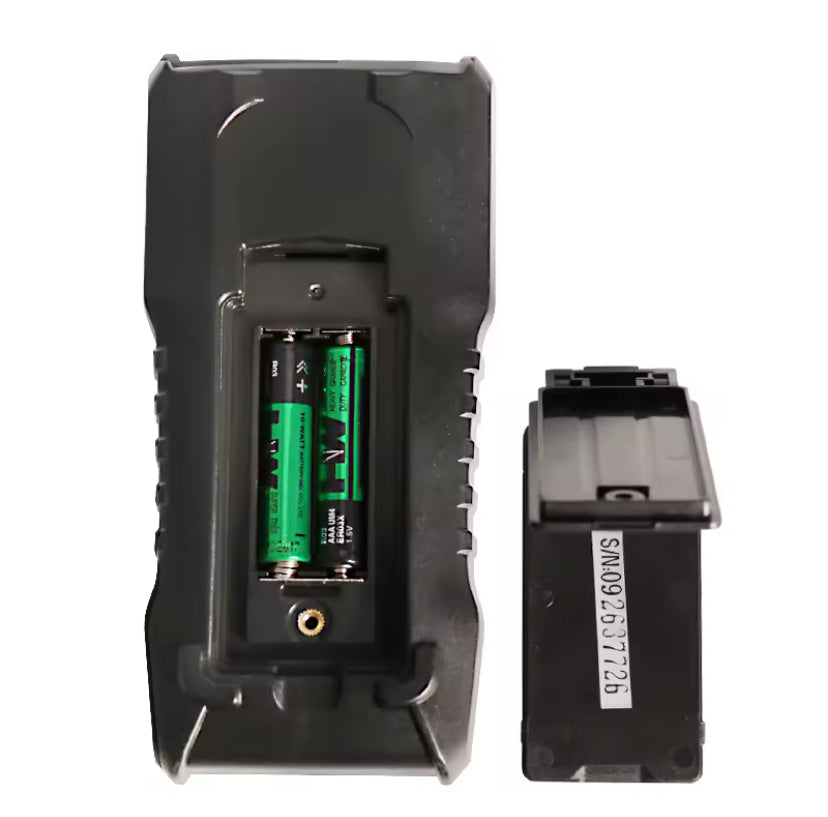

• Power supply: 2 × AAA batteries

• Size: approx. 145 × 70 × 32 mm

• Weight: approx. 180–200 g

• ABS plastic housing with protective case
