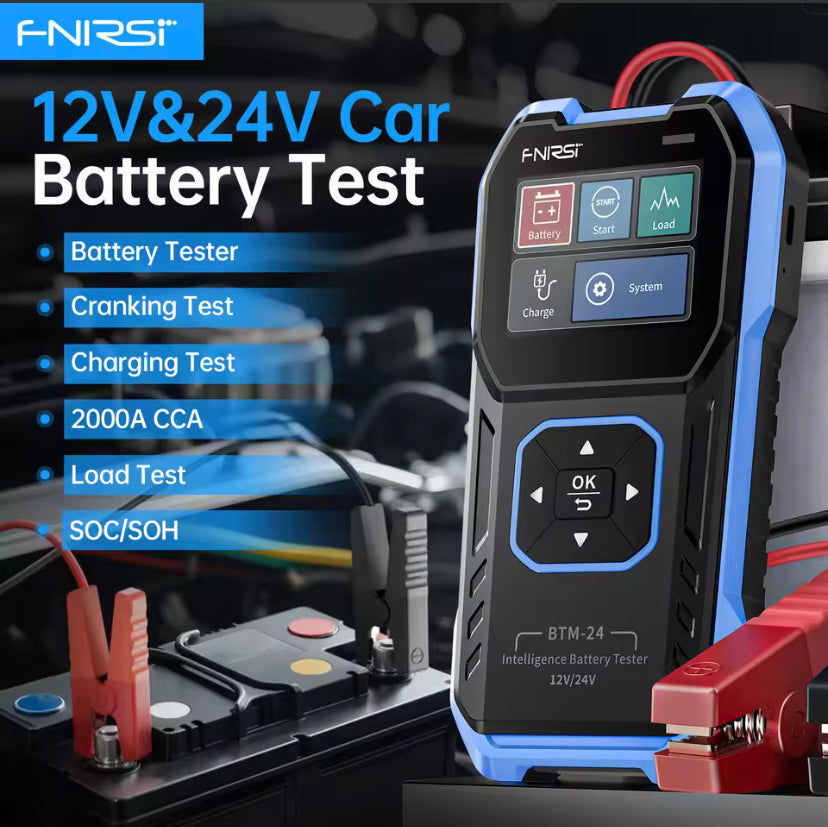

FNIRSI BTM-24 12V/24V Car Battery Tester 0-2000 CCA Automotive Battery Load Tester Cranking Charging Circut Diagnostic Tools

FNIRSI BTM-24 12V/24V Car Battery Tester – Specifications

General

• Model: FNIRSI BTM-24

• Type: Automotive Battery Analyzer / Tester

• Supported Battery Voltage: 12V and 24V

• Power Supply: Powered directly from the tested battery

Display

• Screen: 2.4-inch TFT Color Display

• Interface Language: English, Chinese

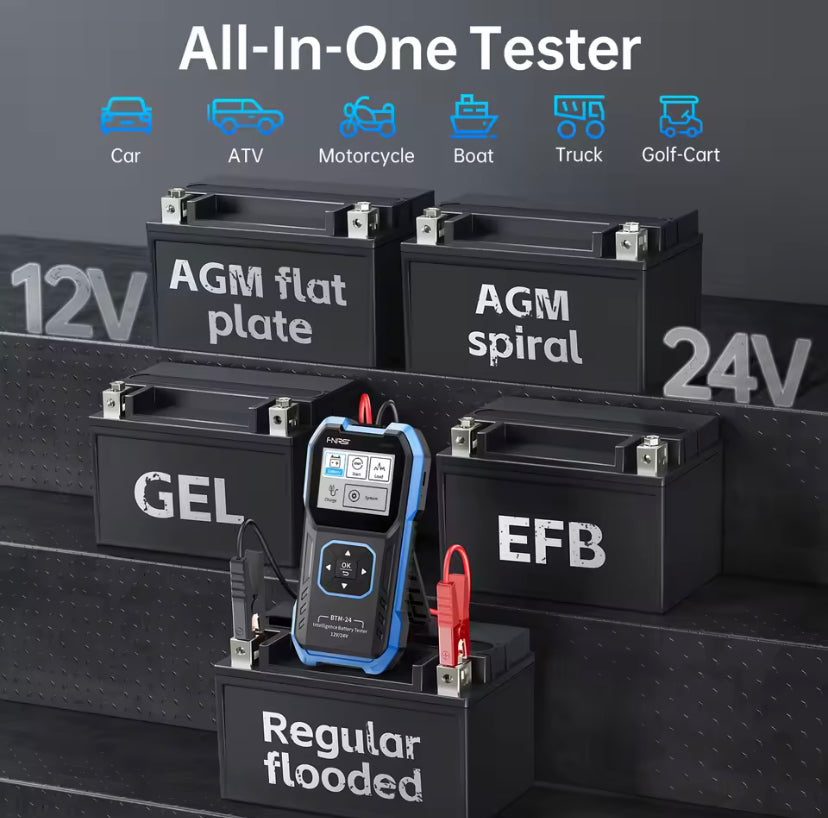

Battery Compatibility

• Flooded Lead-Acid (FLA)

• VRLA (Valve Regulated Lead-Acid)

• AGM (Absorbent Glass Mat)

• GEL Battery

• Automotive Starting Batteries

Testing Standards Supported

• CCA (Cold Cranking Amps)

• IEC

• EN

• DIN

• JIS

• GB

Measurement Range

• CCA Test Range: 0 – 2000 CCA

• Peak Current Measurement: Up to 2000A

Functions

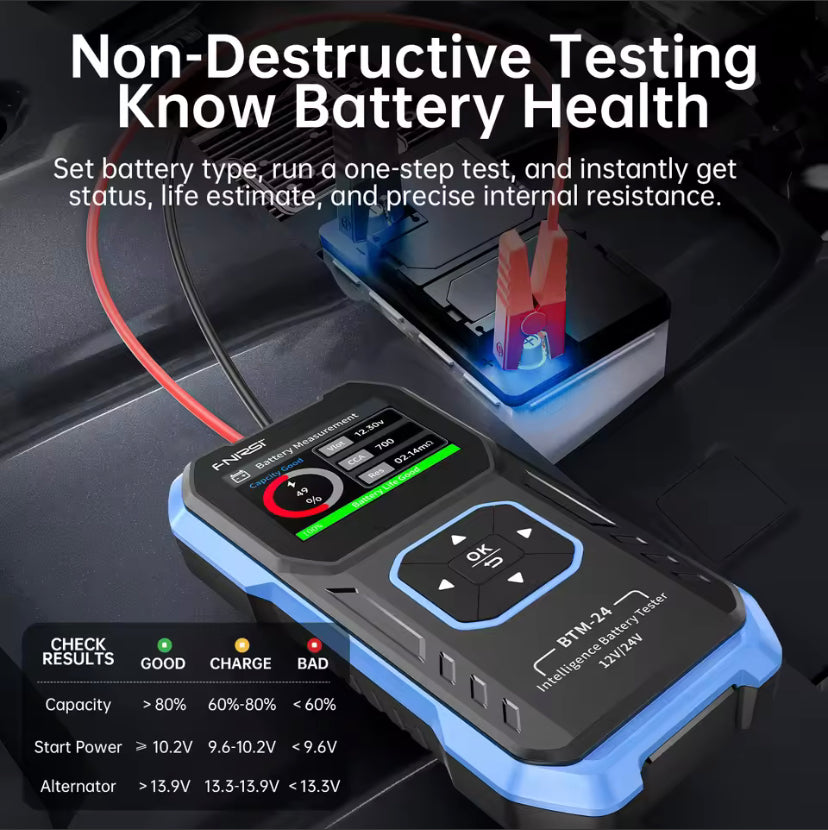

• Battery Health Test

• Battery Capacity Test

• Internal Resistance Measurement

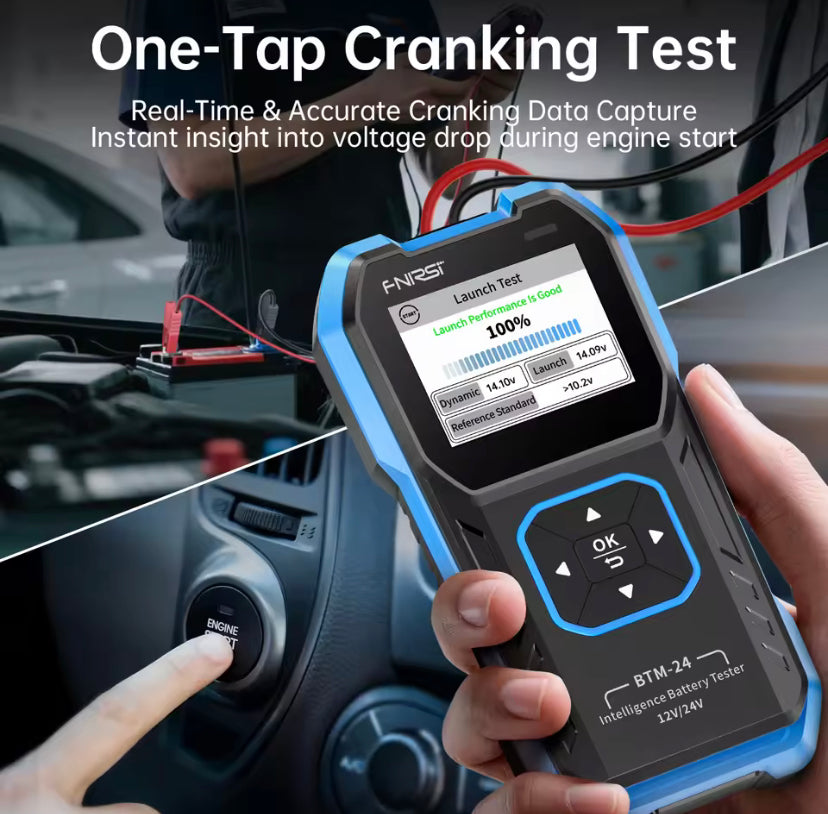

• Engine Start Test

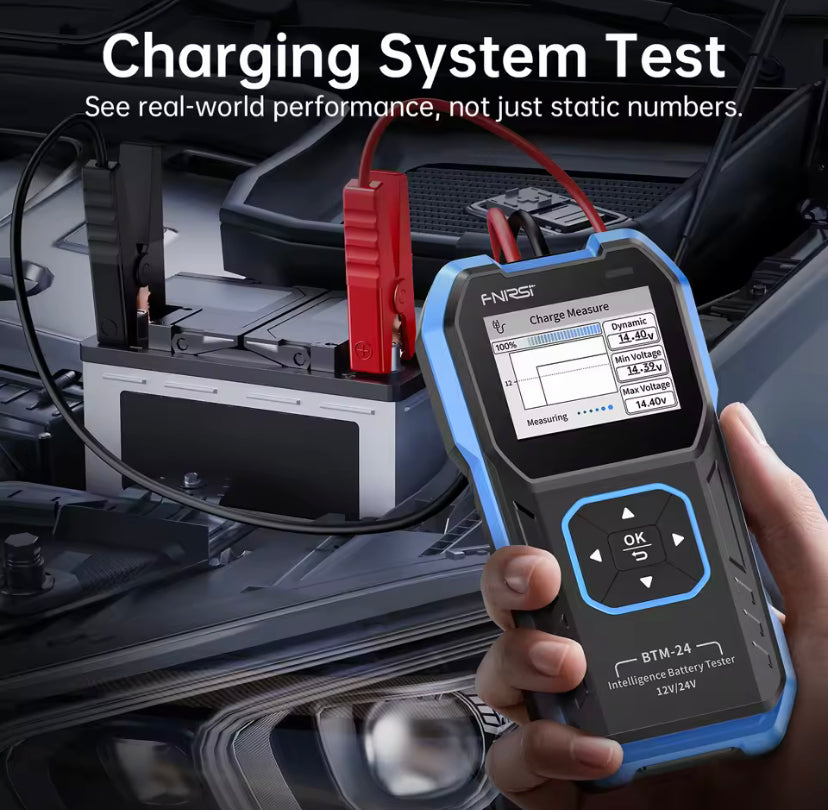

• Charging System Test

• Voltage Test

Voltage Test Range

• 12V System Charging Test: 13.3V – 15V

• 24V System Charging Test: 26.6V – 30V

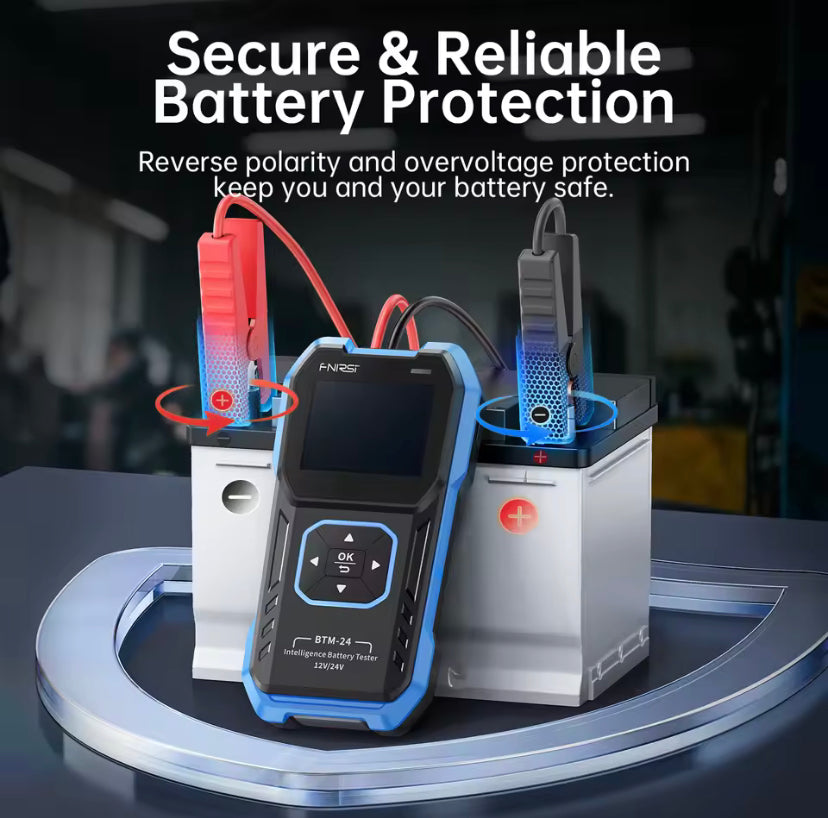

Protection Features

• Reverse Polarity Protection

• Over-Voltage Protection

• Insulated Test Clamps

Operating Conditions

• Operating Temperature: −20°C to +60°C

Physical Specifications

• Dimensions: 80.5 × 155.7 × 28.1 mm

• Weight: Approximately 479 g
