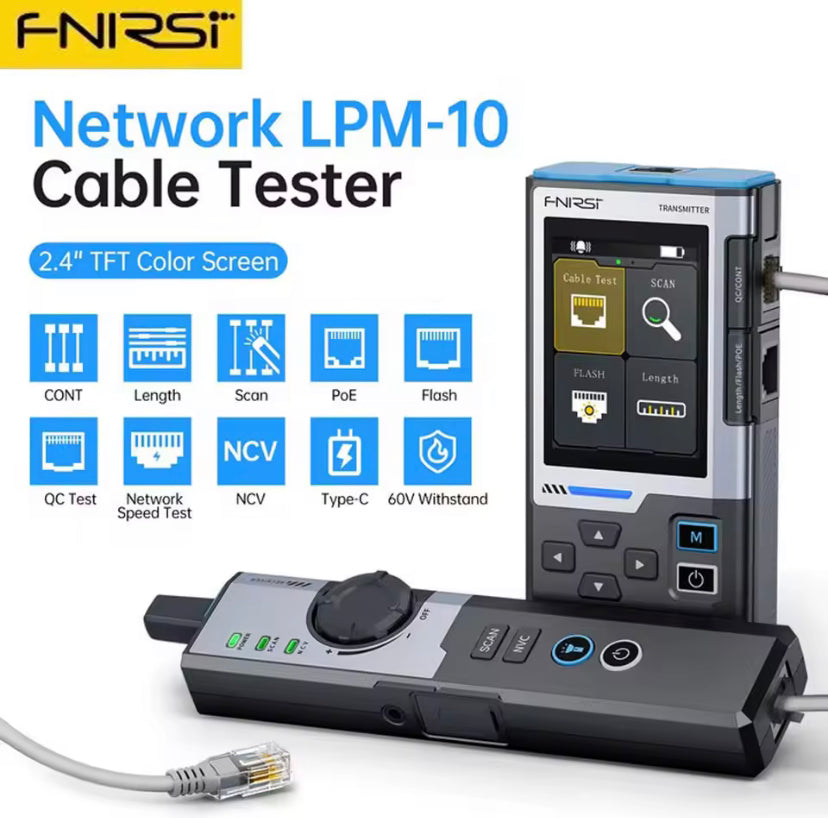

FNIRSI LPM-10A Smart Cable Locator RJ45 RJ11 LAN Tracker Anti-Interference Length Test for Ethernet Repair Network Maintenance

FNIRSI LPM-10A Smart Cable Locator – Specifications

General

• Brand: FNIRSI

• Model: LPM-10A

• Type: Smart Cable Locator / Network Cable Tester

• Certification: CE

Display

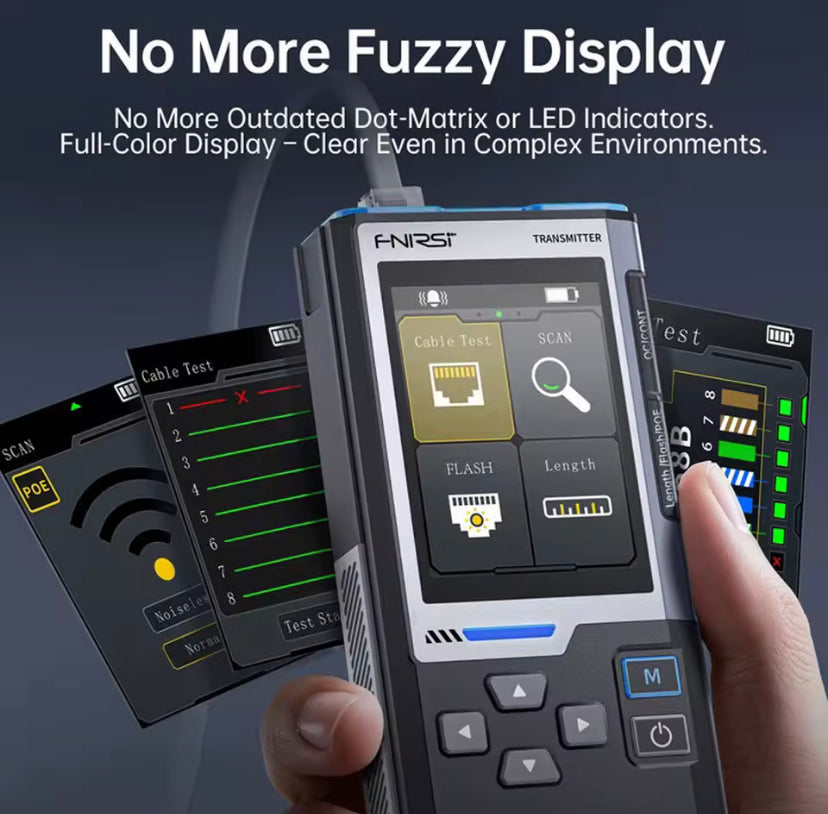

• Screen Size: 2.4-inch TFT Color Display

• Backlight: Adjustable Brightness

Power

• Power Supply: USB Type-C (5V / 1A)

• Battery Type: Built-in Lithium Battery

• Battery Capacity: 1500 mAh

• Working Time: Up to 10 hours

Cable & Network Testing

• Supported Cables: RJ45, RJ11

• Cable Core Test: Up to 8-core cable detection

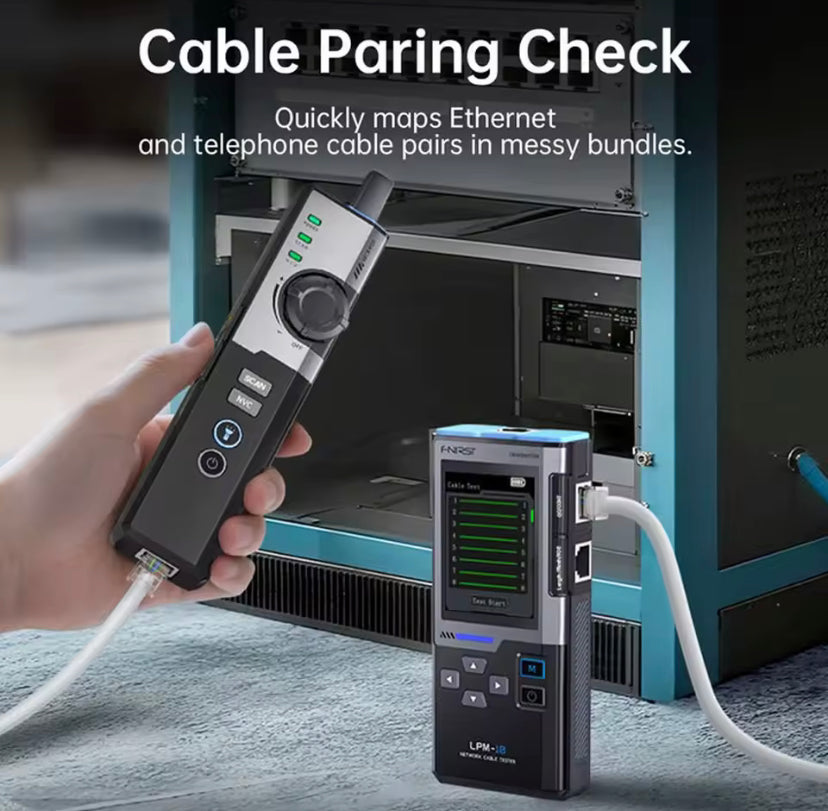

• Wiremap Test: Open, Short, Cross, and Fault Detection

• Crimp Test: RJ45 Connector Pin Detection

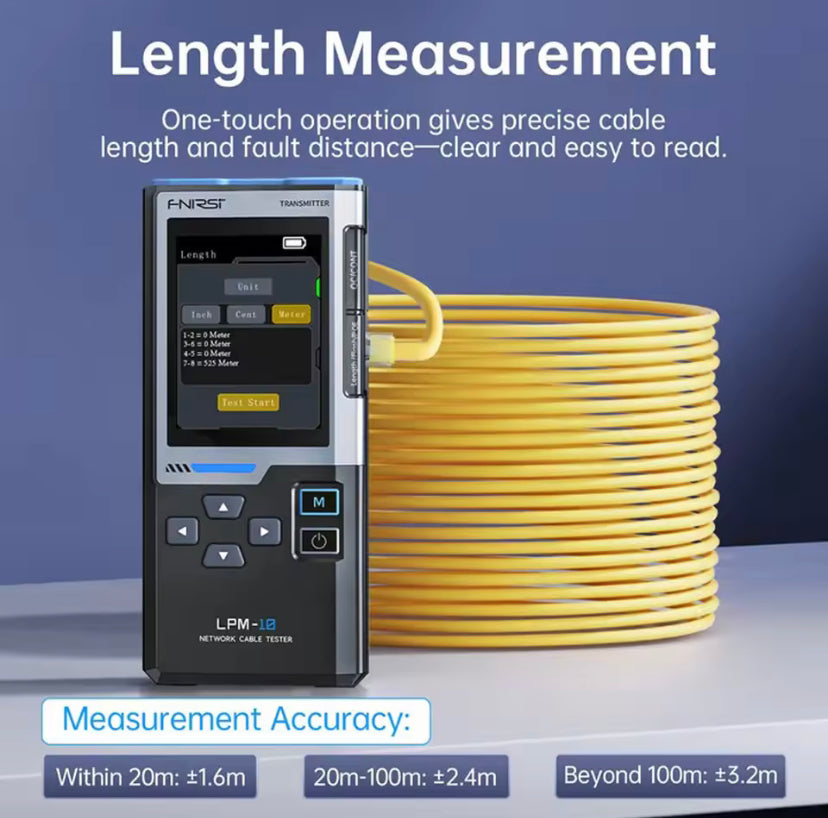

• Cable Length Measurement:

  • < 20 m: ±1.6 m

  • 20 – 100 m: ±2.4 m

  • 100 m: ±3.2 m

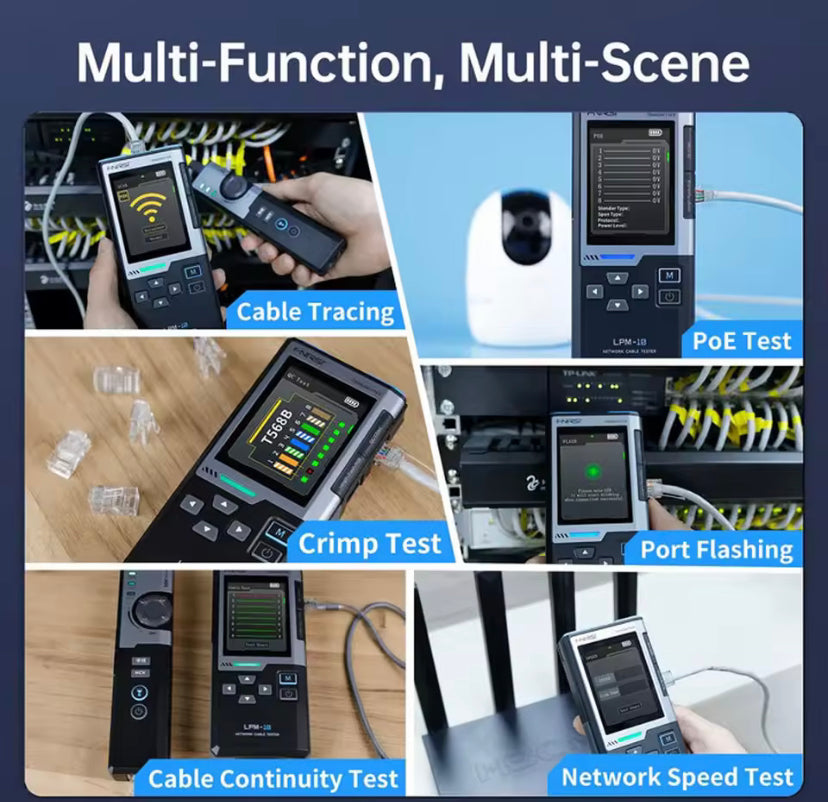

Wire Tracing

• Normal Wire Tracing Mode

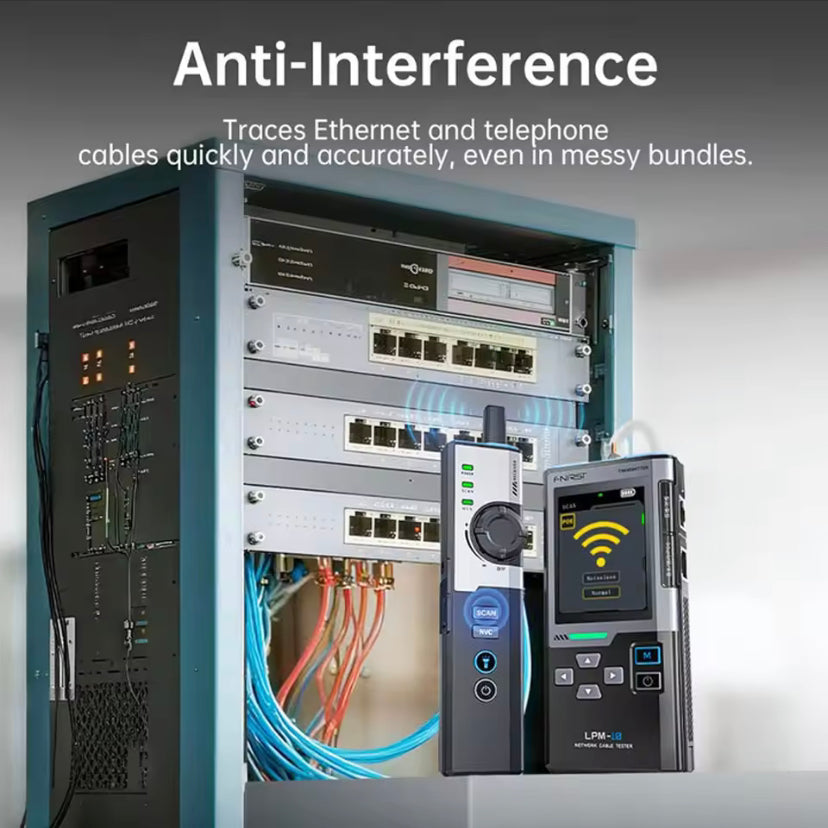

• Anti-Interference Tracing Mode

• Adjustable Signal Sensitivity

Network Functions

• Port Flashing / Port Identification

• Network Speed Detection: 10M / 100M / 1000M

• Duplex Mode Detection: Full Duplex / Half Duplex

PoE Testing

• PoE Standard Detection: IEEE 802.3af / 802.3at / 802.3bt

• Power Mode Detection: End-Span / Mid-Span

• Automatic Voltage and Power Identification

Additional Features

• NCV (Non-Contact Voltage) Detection

• Wiring Sequence Comparison

• Built-in LED Flashlight

• Headphone Monitoring Function

• Low Battery Warning

Operating Conditions

• Operating Temperature: −5°C to +40°C

• Operating Humidity: ≤ 80% RH

Physical Specifications

• Dimensions: 152 × 68 × 31 mm

• Weight: Approximately 186 g
