GT5105A Digital Earth Resistance Tester 2000 Megohm Meter Megohmmeter Voltmeter Ground Tester Battery Detection

GT5105A Digital Earth Resistance Tester 2000 Megohm Meter Megohmmeter Voltmeter Ground Tester Battery Detection

Rs.35,000.00 PKR
Rs.35,000.00 PKR
Sale Sold out

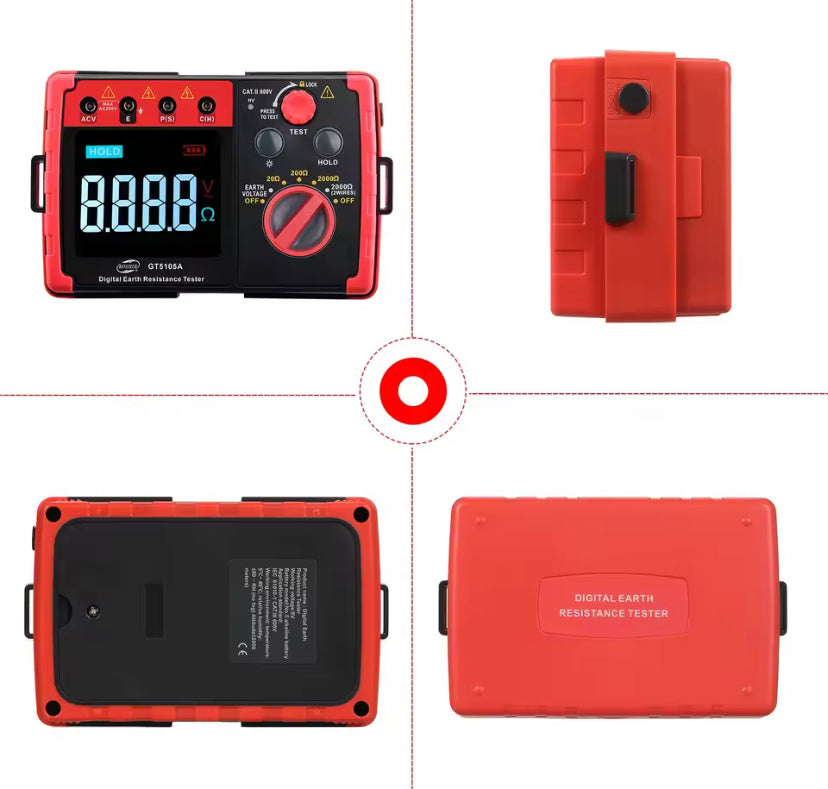

🌍 GT5105A Digital Earth Resistance & Ground Voltage Tester

✅ Key Features:

  • Measures ground resistance up to 2000 Ω and earth voltage up to 200 V AC

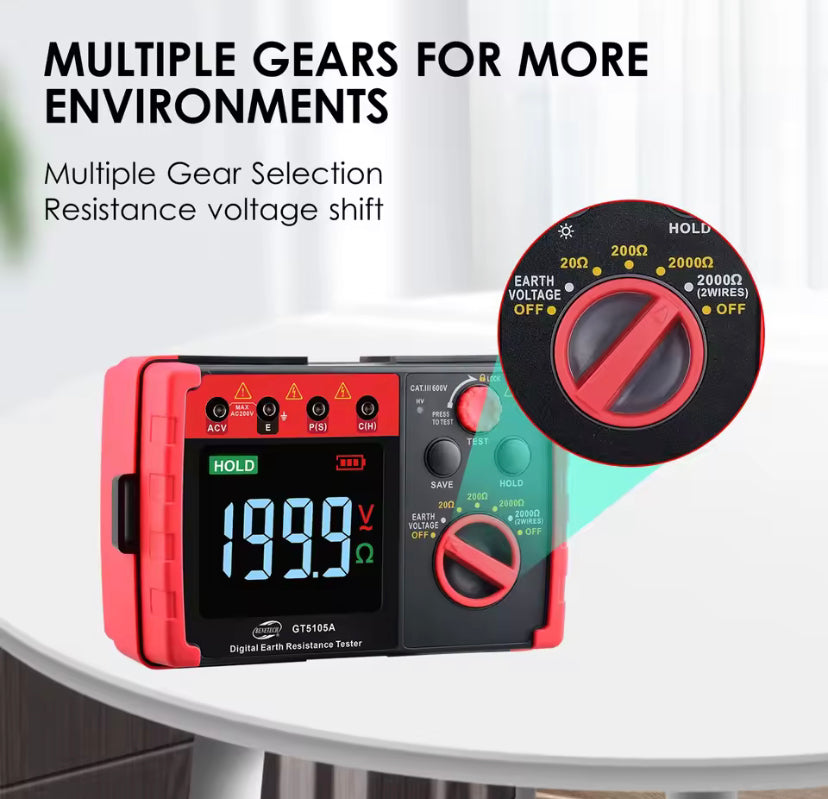

  • Dual measurement modes: 2-wire quick test and 3-wire accurate test

  • Large backlit LCD with data‑hold and low‑battery indicator

  • Displays “OL” on over-range and “----” for poor probe contact

  • CAT III 600 V safety rating with double/reinforced insulation and IP40 casing

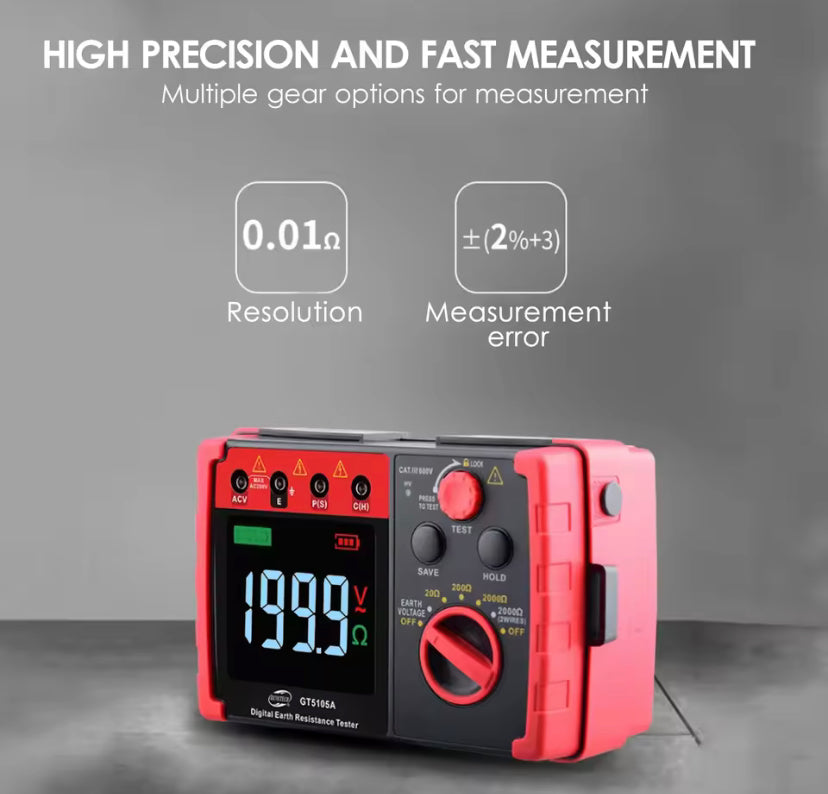

🧪 Technical Specifications

Measurement Range Accuracy Resolution
Ground Resistance 0 – 20 Ω ±(2% + 10 digits) 0.01 Ω
0 – 200 Ω ±(2% + 3 digits) 0.1 Ω
0 – 2000 Ω ±(2% + 3 digits) 1 Ω
(2-wire mode) 0 – 2000 Ω ±(2% + 5 digits) 1 Ω
Ground Voltage (AC) 0 – 200 V ±(2% + 5 digits) 0.1 V

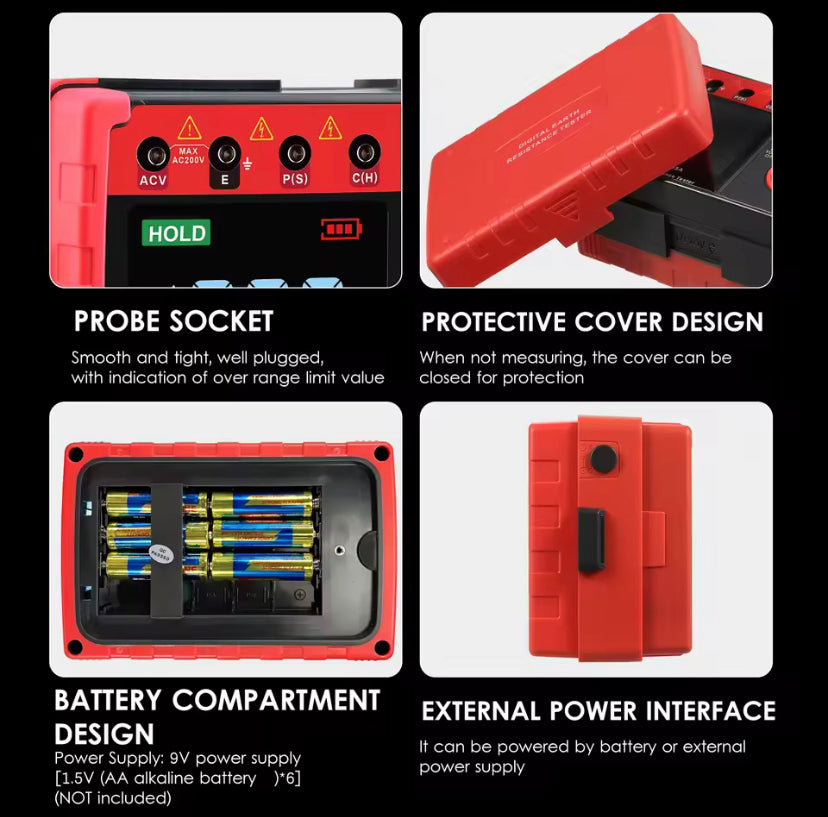

🔋 Power & Protection:

  • Powered by 6 × AA batteries (9 V total)

  • Resistance test protected to 200 V AC (10 s)

  • Voltage test protected to 400 V AC (30 s)
