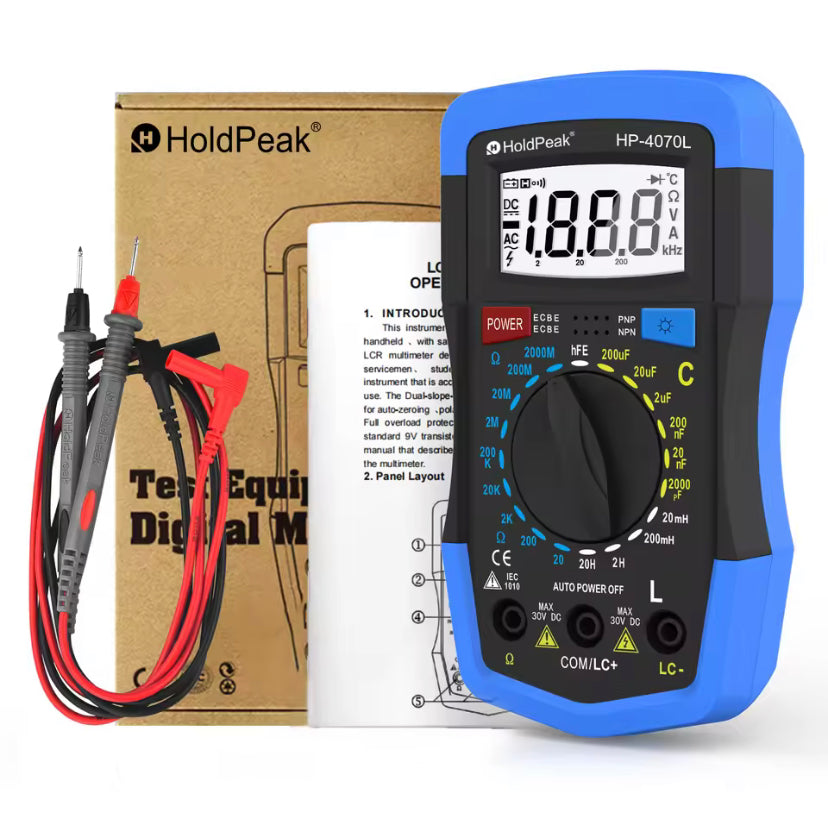

HoldPeak HP-4070L Capacitance Multimeter Digital Inductance LCD Meter hFE Test With Backlight Inductance LCR Meter Repair Tool

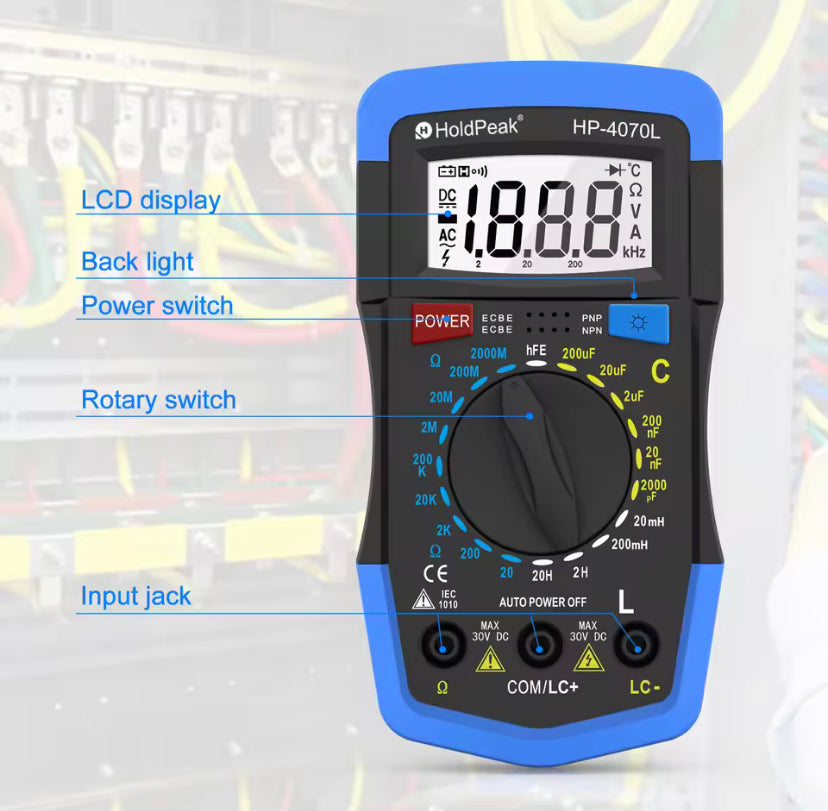

📊 Display & Basic Info

• Display: 3½ digit LCD (max 1999 count)
• Auto polarity: Yes
• Auto zero: Yes
• Over-range indication: “1” or “OL”
• Backlight: Yes

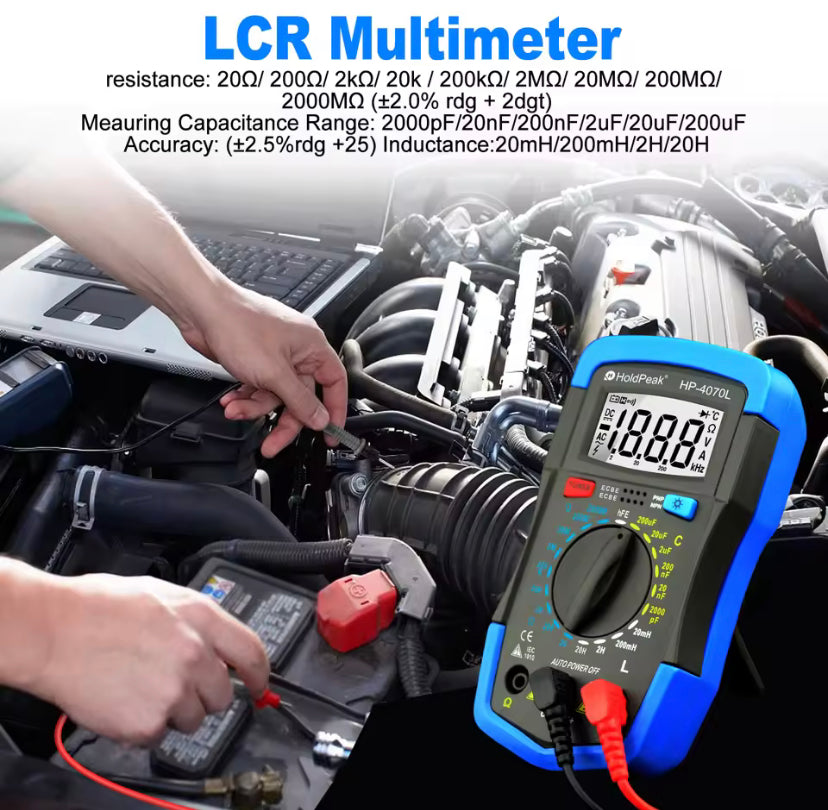

📏 Measurement Ranges

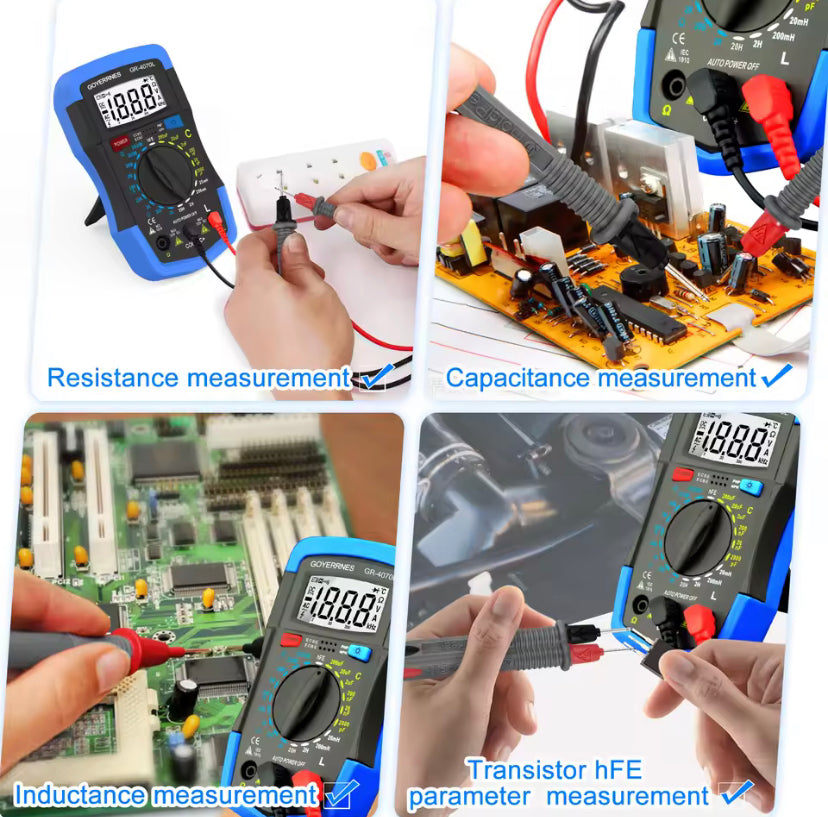

• Resistance:
  • 200 Ω → 20 MΩ
• Capacitance:
  • 2 nF → 2000 µF
• Inductance:
  • 2 mH → 20 H
• Transistor Test:
  • hFE gain measurement

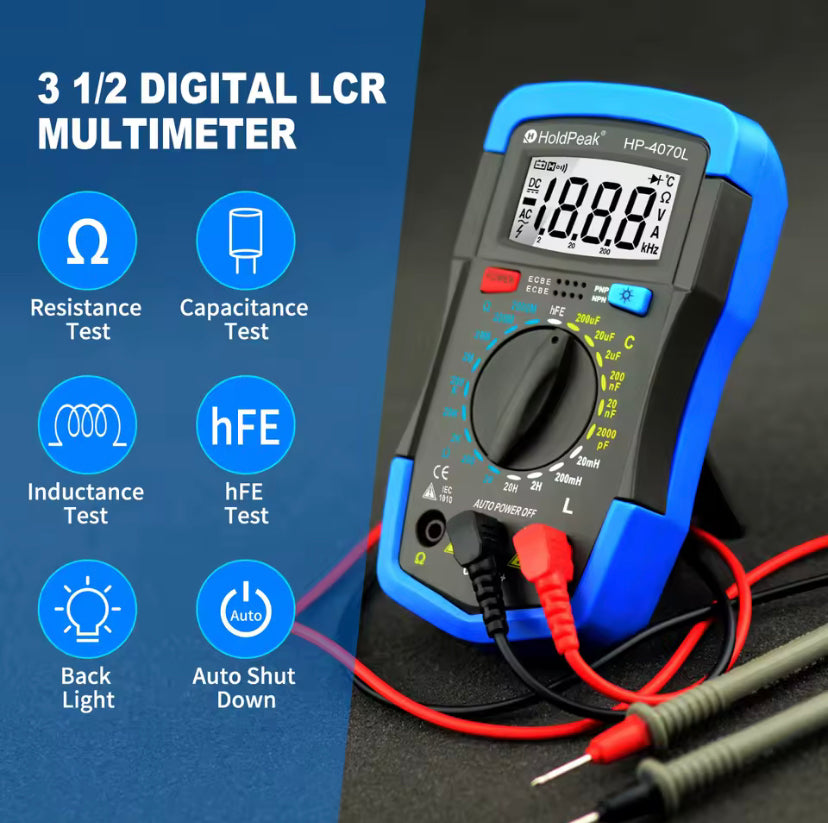

⚙️ Features

• Auto-ranging + manual ranging
• Data hold function
• Overload protection
• Large LCD display
• Portable handheld design

🔋 Power & Safety

• Power supply: 9V battery (6F22)
• Safety: IEC1010, CAT III (double insulation)

🌡️ Environment

• Operating temperature: 0°C to 40°C
• Storage temperature: −20°C to 60°C
• Operating humidity: ≤75% RH

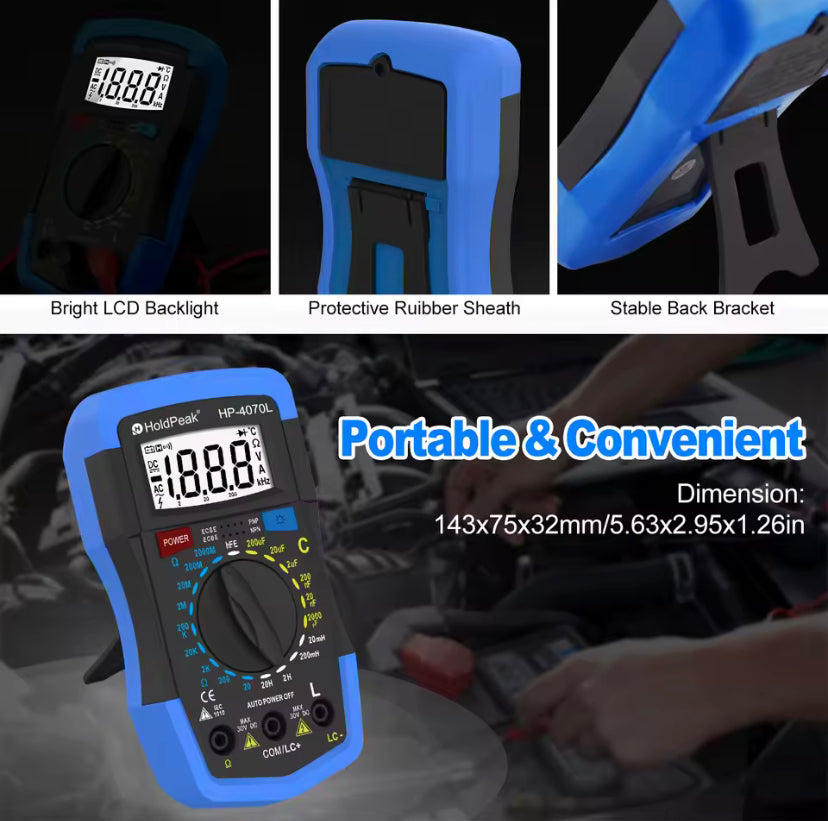

📐 Physical

• Size: ~143 × 75 × 32 mm
• Weight: ~200 g
