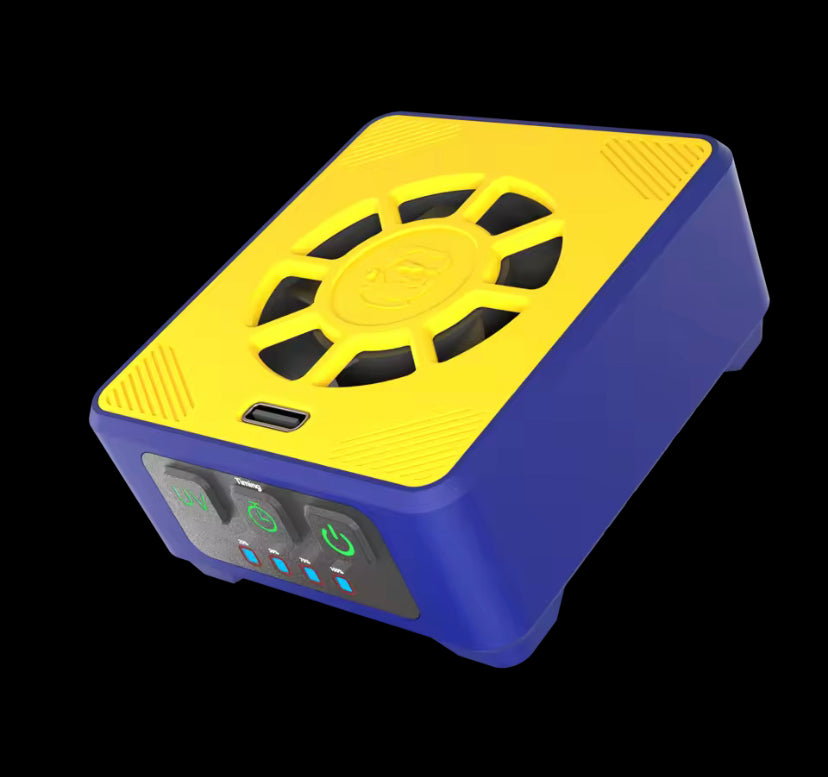

🔧 MECHANIC CUV‑3 3‑in‑1 Cooling Curing & Smoke Extraction Fan
✅ Key Features
-
Combines cooling, UV curing, and smoke extraction in one compact tool
-
Three adjustable fan speeds for versatile airflow control
-
Built-in UV lamp (395 nm) suitable for curing green solder mask post-soldering
-
High-speed dual bearings, providing fast and quiet operation
-

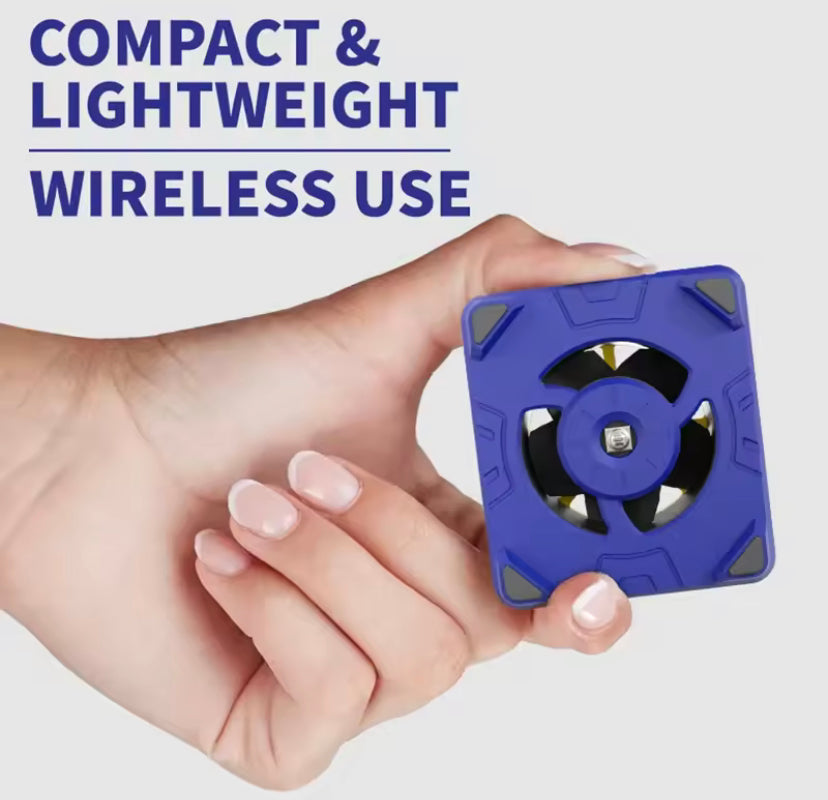

Rechargeable lithium-ion battery, portable and cordless
📐 Technical Specifications
| Feature | Details |
|---|---|
| Input Voltage | 5 V DC (USB charger) |
| Charging Current | 480 mA |
| Battery Capacity | ~800 mAh (rechargeable stick-type) |
| Charging Time | ~2 – 2.5 hours |
| Fan Speeds | 3 levels (low, medium, high) |
| Maximum Fan Speed | ~10,000 rpm (approx.; rapid cooling) |
| UV Light Wavelength | 395 nm (UV-A spectrum) |
| UV Light Type | Dual SMD LED beads |
| Dimensions (approx.) | 66 × 59 × 31 mm |
| Weight | ~300 g |
| Functions | Cooling, smoke extraction, PCB curing |
