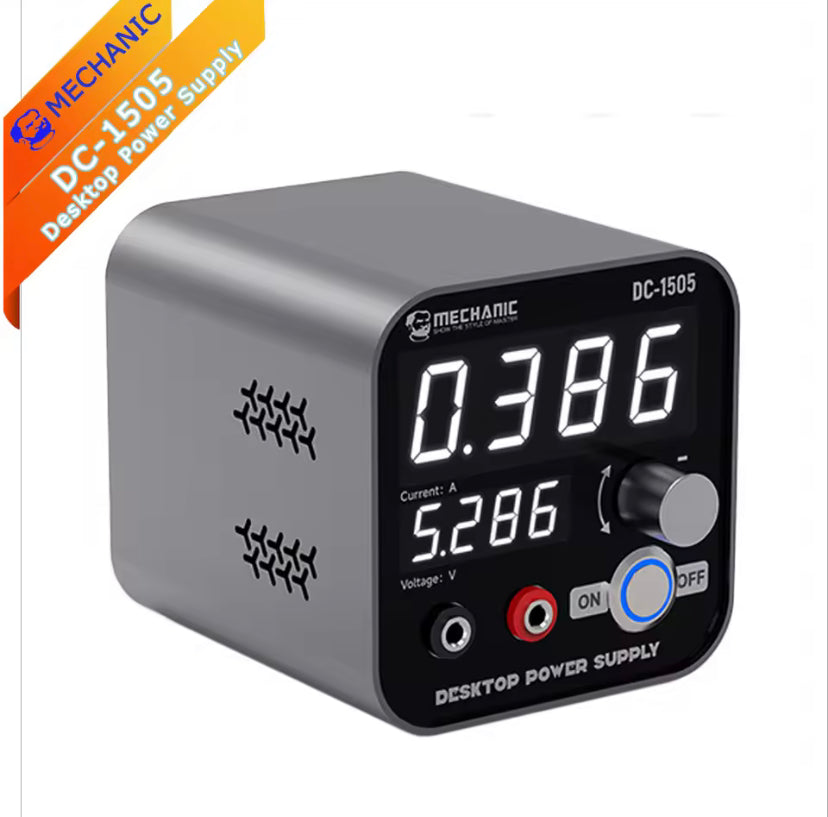

MECHANIC DC-1505 Desktop Power Supply Adjustable Switching DC Regulated Short Circuit Protection for Phone PCB Test Repair Tool
MECHANIC DC-1505 Desktop Power Supply Adjustable Switching DC Regulated Short Circuit Protection for Phone PCB Test Repair Tool
Regular price
Rs.22,000.00 PKR
Regular price
Sale price
Rs.22,000.00 PKR
Unit price
/
per
Couldn't load pickup availability
🔌 MECHANIC DC‑1505 – Adjustable Switching DC Regulated Power Supply
✅ Key Features
-
Adjustable output: 0–15 V DC at up to 5 A
-
Switching regulator design: stable voltage with high efficiency
-
Short-circuit and overload protection: automatically trips and resets
-

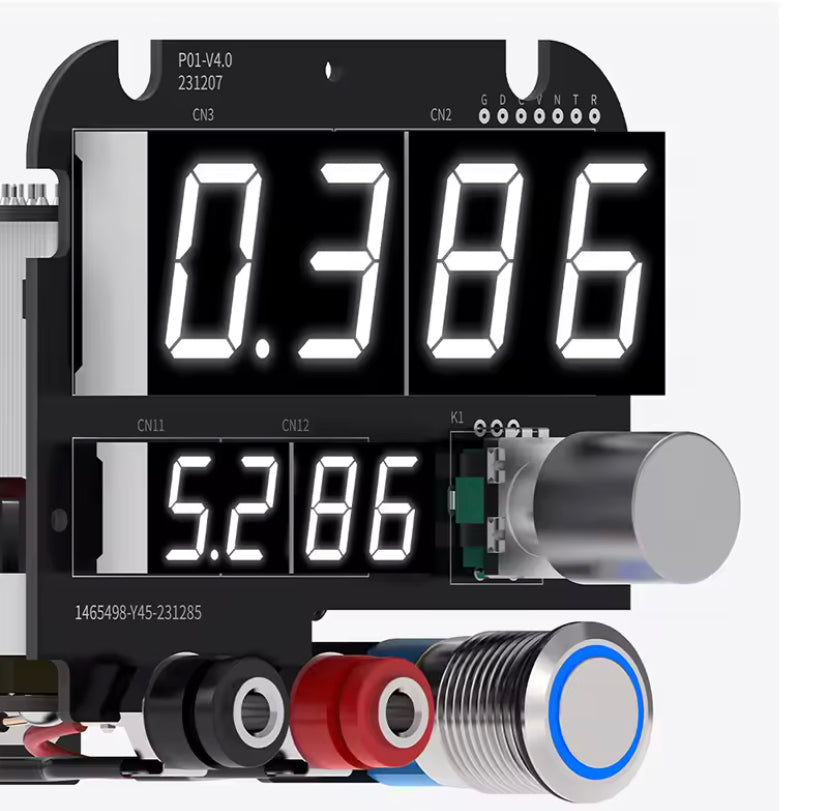

Digital display: dual 3-digit LED screens show real-time voltage and current
-
Coarse and fine adjustment knobs: precise control of voltage and current output
-
Compact desktop format: suitable for bench, lab, and repair work
📐 Technical Specifications
Specification | Details |
---|---|
Output Voltage | 0–15 V DC |
Max Output Current | 5 A |
Power Output | Up to 75 W |
Voltage Regulation | ≤ 0.01 % + 10 mV |
Current Regulation | ≤ 0.2 % + 10 mA |
Load Regulation | ≤ 0.2 % + 10 mV |
Ripple & Noise (rms) | < 3 mV |
Display Resolution | 0.01 V and 0.01 A |
Display Type | Dual 3‑digit LED |
Protection | Short-circuit shutdown, overcurrent |
Cooling | Built-in fan with efficient airflow |

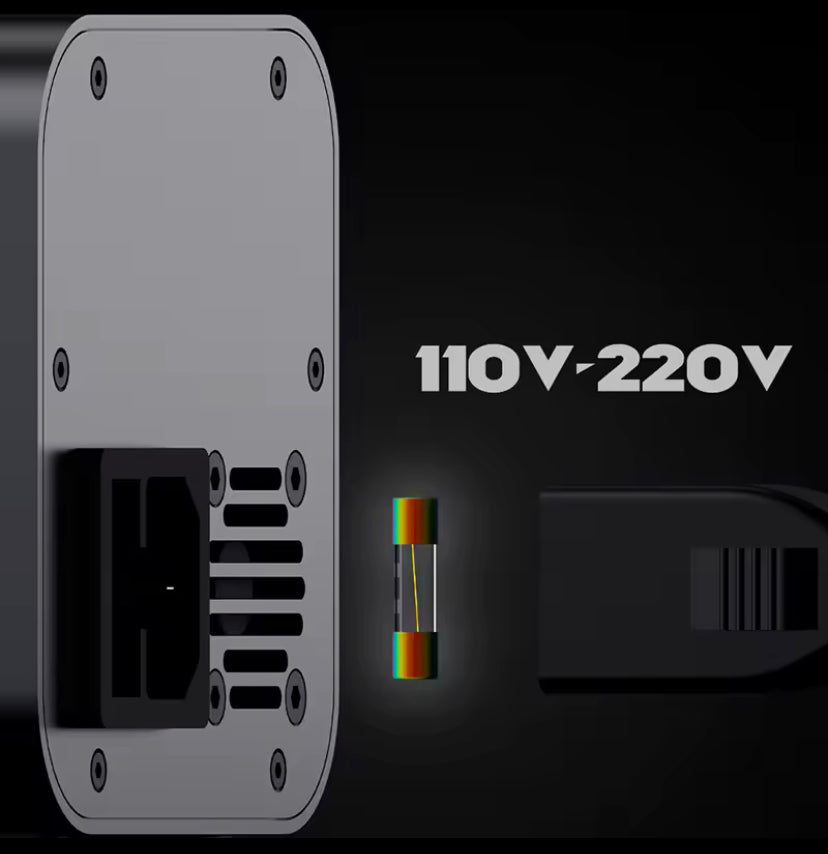

Input Voltage | 110–240 V AC, 50–60 Hz |
Operating Temperature | 0–40 °C |

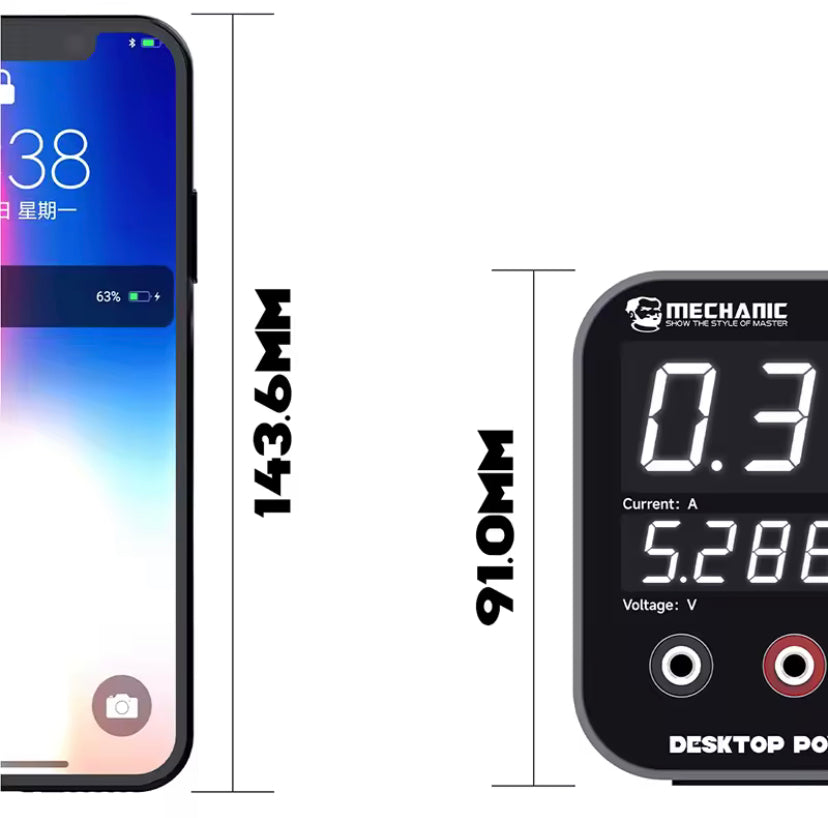

Dimensions | 190 × 108 × 52 mm |
Weight | Approx. 1.0 kg |
