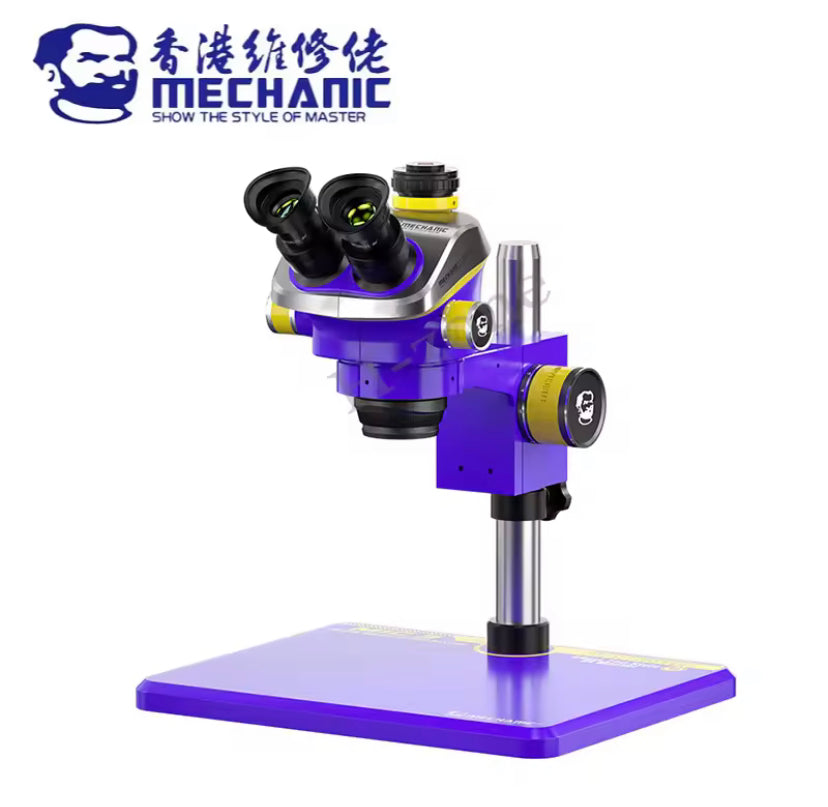

MECHANIC MIC3 B11 Industrial Trinocular Stereo Microscope HD Electronic Magnified 7-50X Continuous Zoom Observation Platform
MECHANIC MIC3 B11 Industrial Trinocular Stereo Microscope HD Electronic Magnified 7-50X Continuous Zoom Observation Platform
Couldn't load pickup availability
🔍 MECHANIC Mic3‑B11 Microscope – Specifications
🔭 Optical & Magnification
-
Magnification Range: 7× to 50× (standard)
-

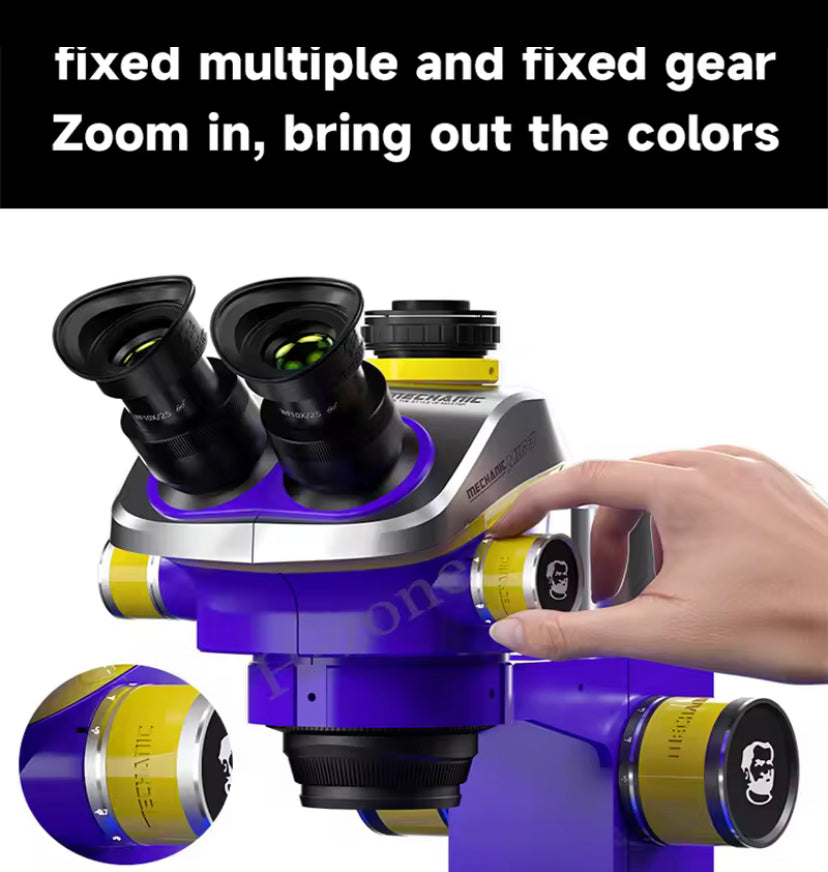

Zoom Ratio: 1 : 7.1 (continuous zoom)
-

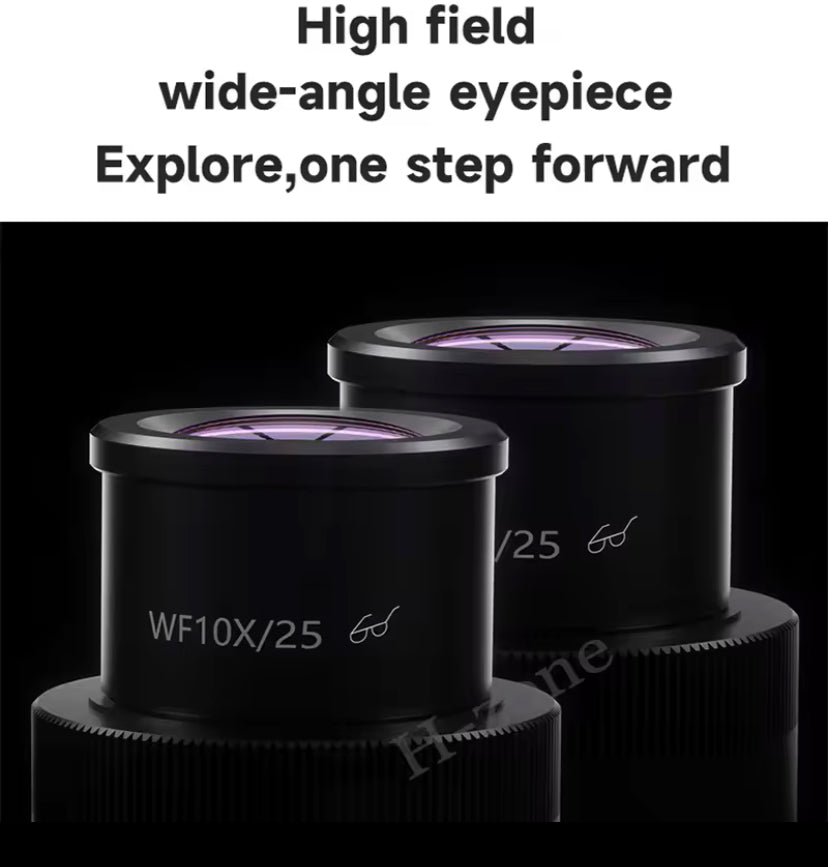

Eyepieces: Wide-field WF10×/25 mm
-

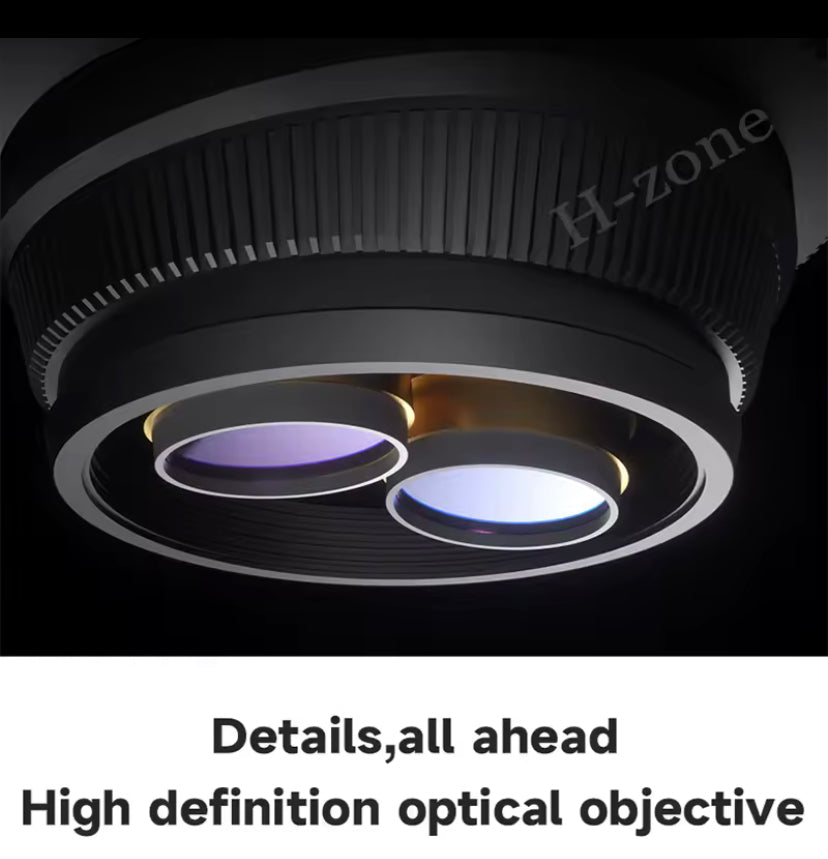

Objective Lens: 0.7× – 5.0×
-
Optional Auxiliary Lenses: 0.5×, 0.7×, 1.5×, 2.0×
-
Maximum Expandable Magnification: Up to approx. 270× (with optional lenses)
🔬 Observation Head
-
Trinocular Design: View through eyepieces and attach a camera simultaneously
-
Inclination: 45° inclined viewing
-
Rotation: 360° rotatable head
-
Interpupillary Adjustment: 54 – 76 mm
-
Diopter Adjustment: ±5 on both eyepieces
📷 Camera Port
-
CTV Adapter: 0.45× camera adapter included
-
Supports mounting HD digital microscope cameras
💡 Lighting
-
Compatible with optional LED ring lights
-
Designed for uniform illumination without shadows
📏 Working Distance & Field of View
-
Standard Working Distance: 100 mm
-
Extended Working Distance (with auxiliary lenses): up to 165 mm
-
Visual Field Range: Approx. 30.5 mm at low mag to 14.7 mm at higher mag
🧱 Mechanical Design
-
Base Type: B11 large metal platform
-
Base Size: 320 × 260 mm
-
Bracket Diameter: 76 mm
-
Column Bore: 32 mm
-
Microscope Dimensions: ~200 × 273 × 280 mm
-
Weight: ~6 – 6.5 kg
🛠️ Build Quality & Ergonomics
-
Durable full-metal construction
-

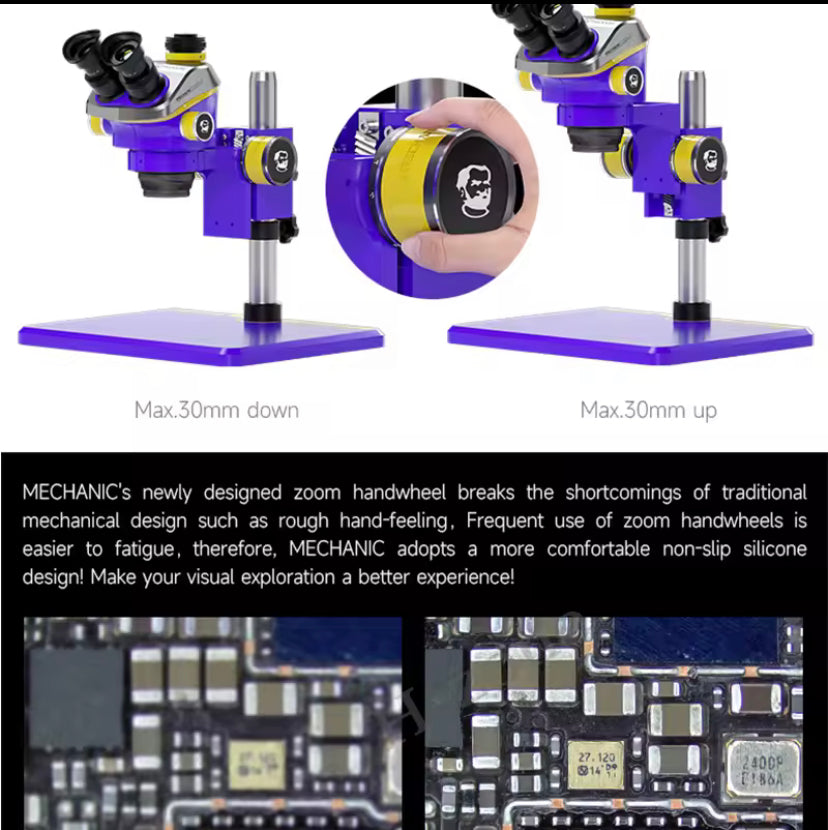

Non-slip zoom wheel for precision
-
Suitable for long repair sessions (PCB, soldering, mobile repair)
