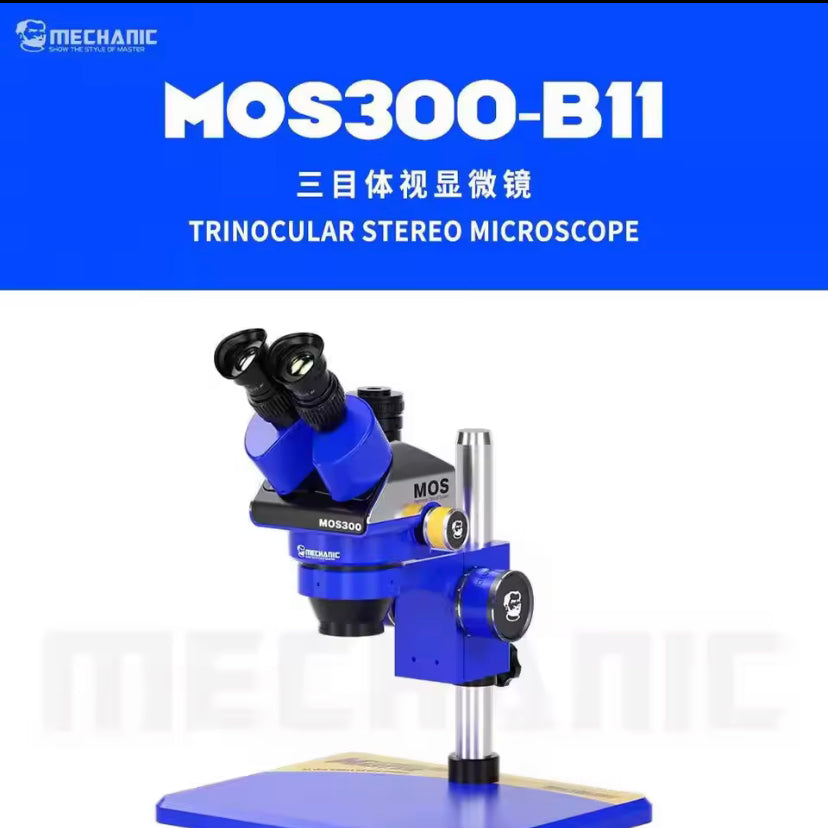

MECHANIC MOS300-B11 HD Trinocular Stereo Microscope 6-45X Zoom for Mobile Phone Computer Motherboard PCB BGA Repair Tool

MECHANIC MOS300-B11 – Specifications

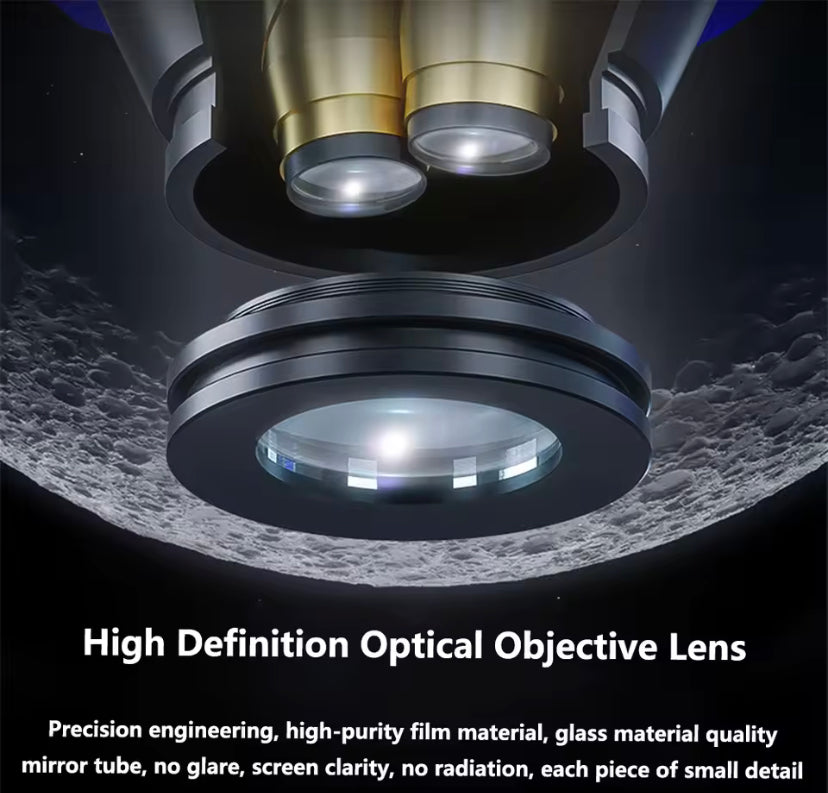

🔭 Optical & Magnification

• Magnification Range: 6× to 45× (standard)

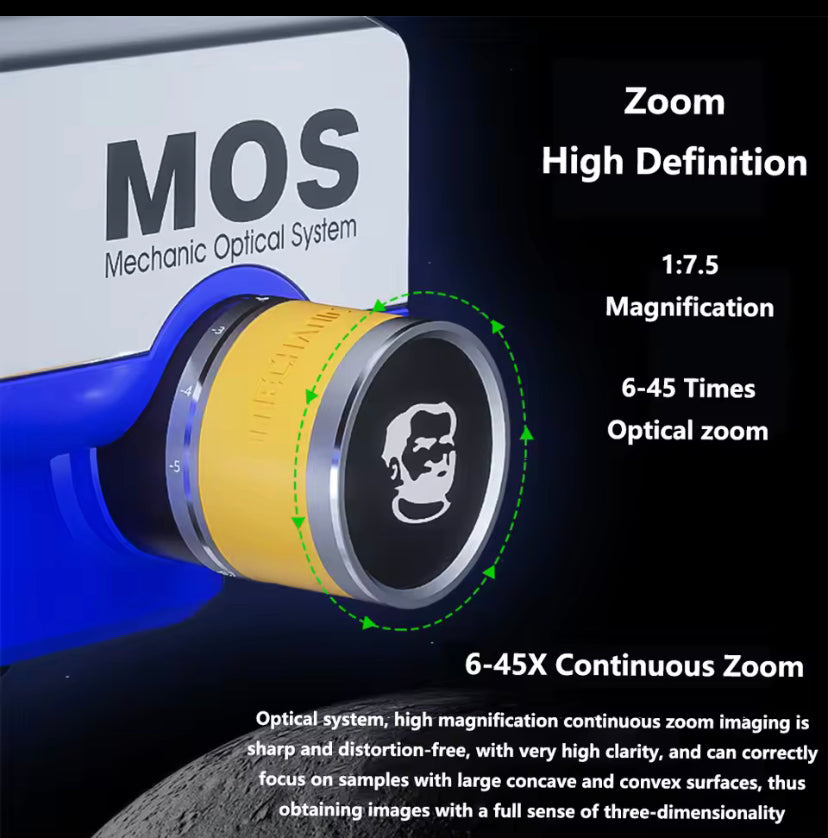

• Zoom Ratio: 0.6× to 4.5× continuous zoom

• Eyepieces: WF10×/22 mm wide field

• Optional Eyepieces: WF15×, WF20×, WF25×, WF30× for higher magnification

• Optional Auxiliary Lenses: 0.3×, 0.5×, 0.75×, 1×, 1.5×, 2× (used to change working distance and zoom range)

• Maximum Expandable Magnification: Up to ~270× with accessory combinations

🔬 Observation Head

• Head Type: Trinocular (two eyepieces + one camera port)

• Inclination: 45° inclined for comfortable viewing

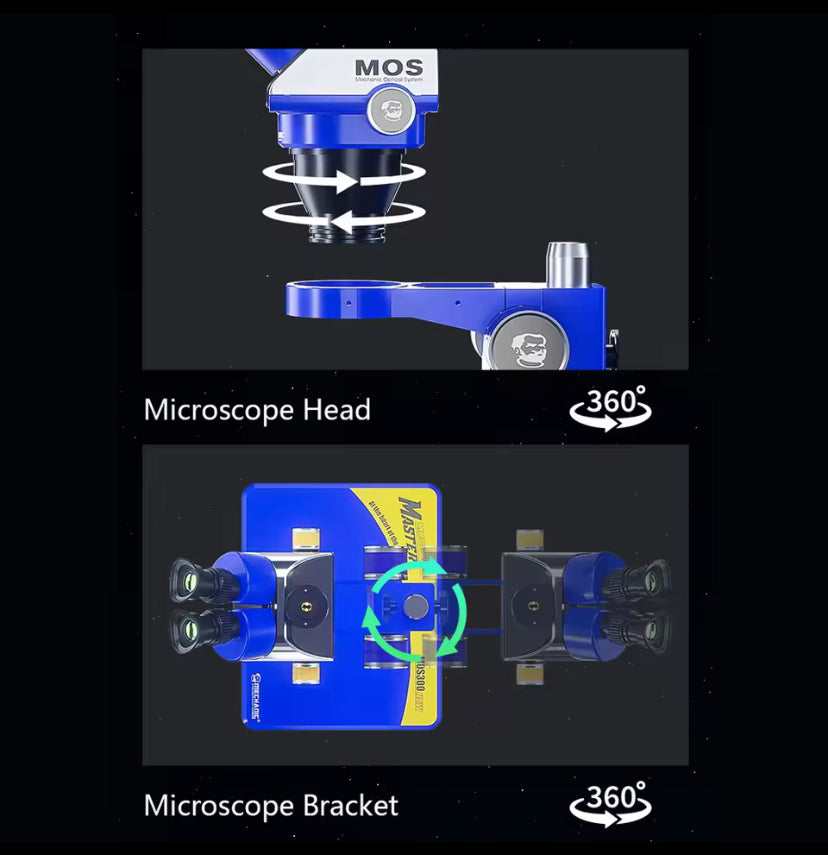

• Rotation: 360° rotatable head

• Interpupillary Distance: Adjustable between 54 mm – 76 mm

• Diopter Adjustment: ±5 on both eyepieces

• Synchronous Zoom: Zoom level is matched across both eyepieces and camera

📷 Camera Compatibility

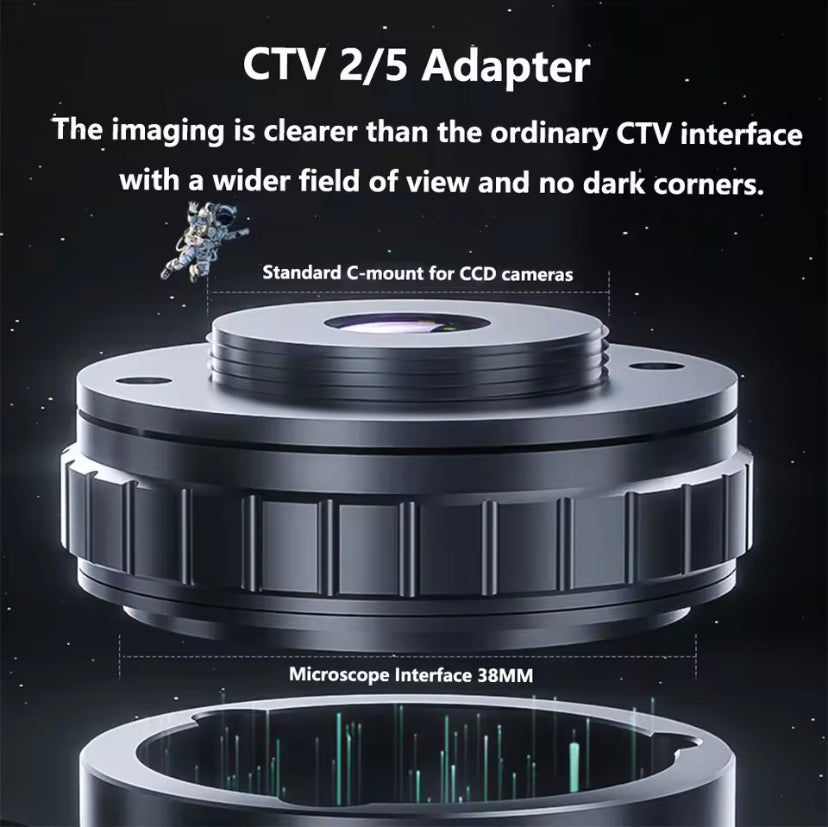

• CTV Adapter: Includes 0.5× or 0.45× C-mount adapter

• Camera Port: Supports HD microscope camera for HDMI, USB, or computer connection

💡 Illumination

• Lighting: Microscope body only — requires external LED ring light (commonly paired with 56 or 144 LED ring light)

📏 Working Distance & Field of View

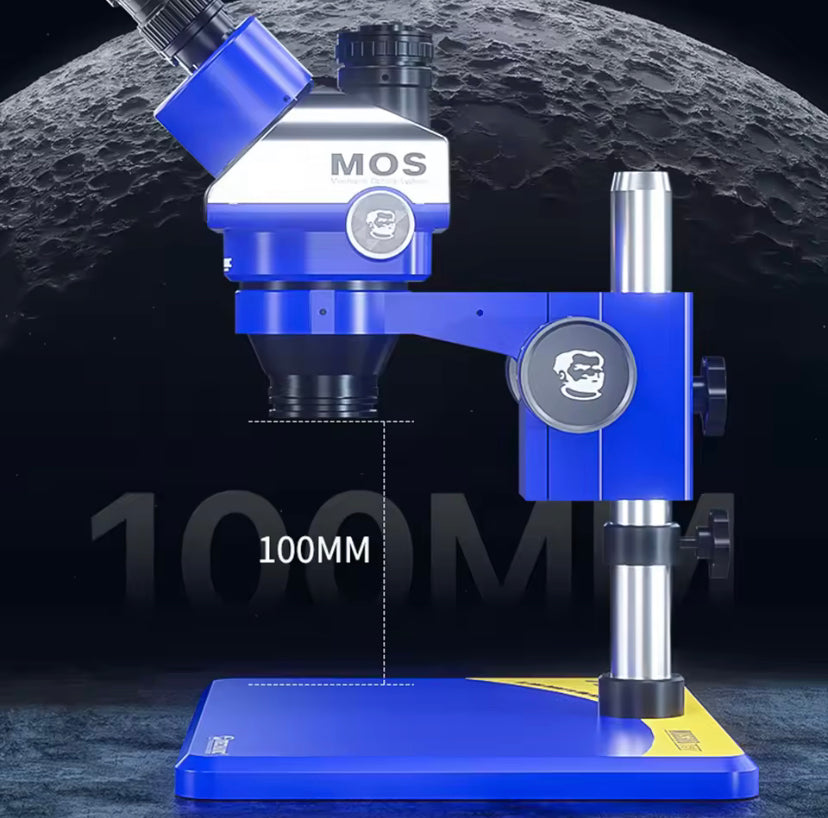

• Standard Working Distance: Approx. 100 mm

• Extended Working Distances:

  • 0.5× lens: ~165 mm

  • 0.75× lens: ~117 mm

  • 1.5× lens: ~45 mm

  • 2× lens: ~30 mm

• Field of View: ~35 mm at low magnification, ~5 mm at high zoom (varies with lens used)

🧱 Mechanical & Platform

• Base Type: B11 large heavy-duty metal base

• Base Size: 320 × 260 mm

• Column Diameter: 32 mm

• Bracket Diameter: 76 mm

• Microscope Size: Approx. 200 × 273 × 280 mm

• Weight: ~6 – 6.5 kg

⚙️ Build & Applications

• Construction: Full metal body for durability and stability

• Focus Knob: Smooth bilateral coarse focus

• Zoom Control: Side-mounted synchronized zoom knobs

• Application: Ideal for mobile phone repair, BGA rework, IC inspection, computer motherboard diagnostics, and other PCB work
