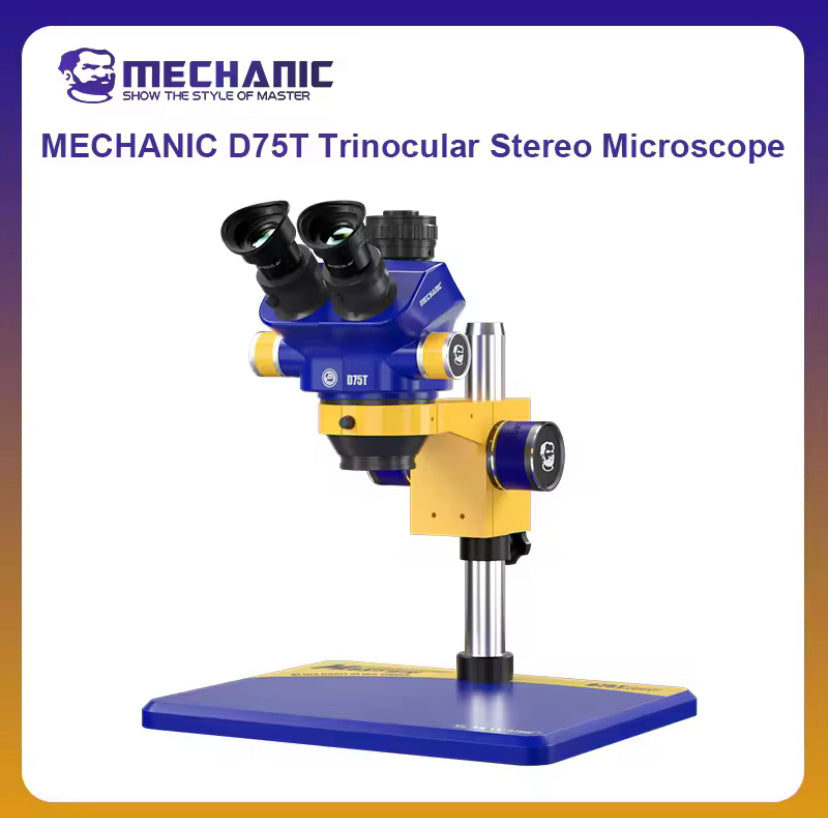

MECHANIC OFFICIAL D75T-B11 Trinocular Stereo Microscope HD Clear Magnified 7-50X Continuous Zoom Observation For Phone Repair

MECHANIC D75T‑B11 – Specifications

🎯 Optical & Magnification

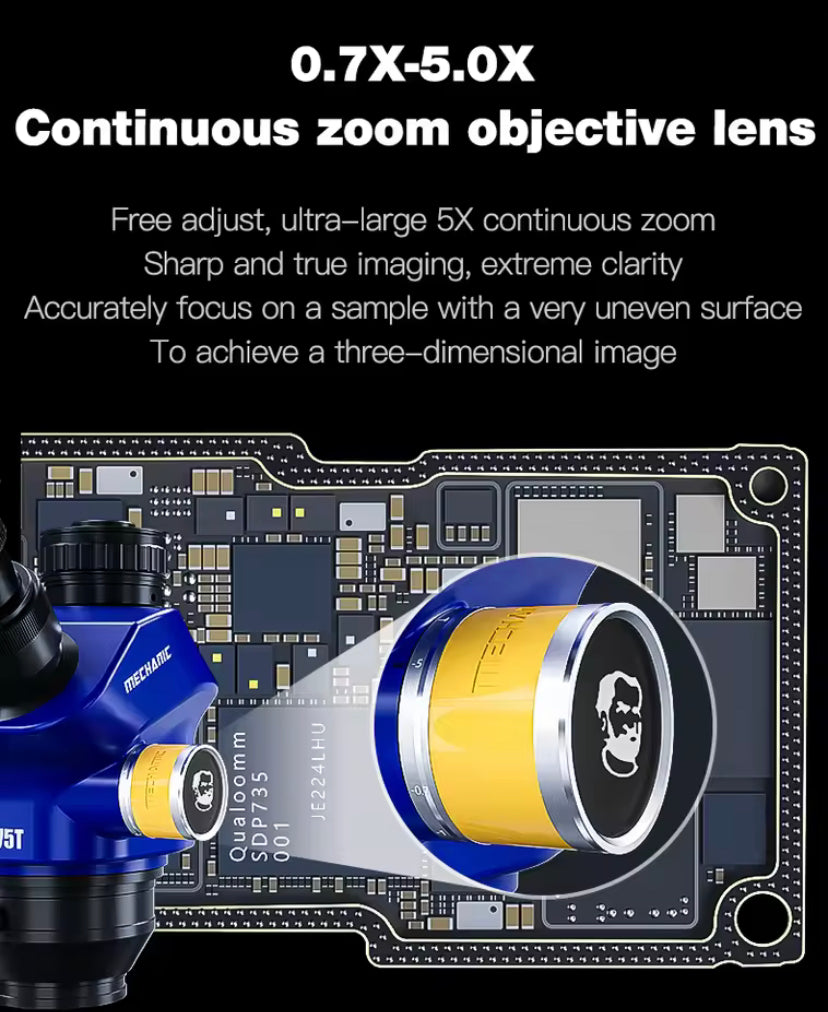

• Standard Magnification Range: 7× to 50× (via 0.7×–5.0× objective lens)

  • Expanded Range: Up to approximately 270× using optional eyepieces and auxiliary lenses

• Eyepieces: WF10×/22 mm wide field, high-eye-point design

• Auxiliary Objective Lenses Available:

  • 0.3× (extends working distance to ~287 mm)

  • 0.5× (~165 mm)

  • 0.7× (~120 mm)

  • 1.5× (~45 mm)

  • 2.0× (~30 mm)

🧠 Observation Head & Viewing Comfort

• Head Type: Trinocular design (two eyepieces + camera port)

• Inclination: 45° for user comfort

• Rotation: Full 360° adjustable viewing head

• Interpupillary Adjustment: 54–76 mm

• Diopter Adjustment: ±5 on both eyepieces

• Zoom System: Synchronized across both eyepieces and camera port

📷 Camera Compatibility

• Includes: CTV adapter (typically 0.5×) for HD digital camera mounting

• Purpose: Enables live display or image capture through the third port

💡 Illumination

• Lighting: Built-in LED ring light with adjustable brightness

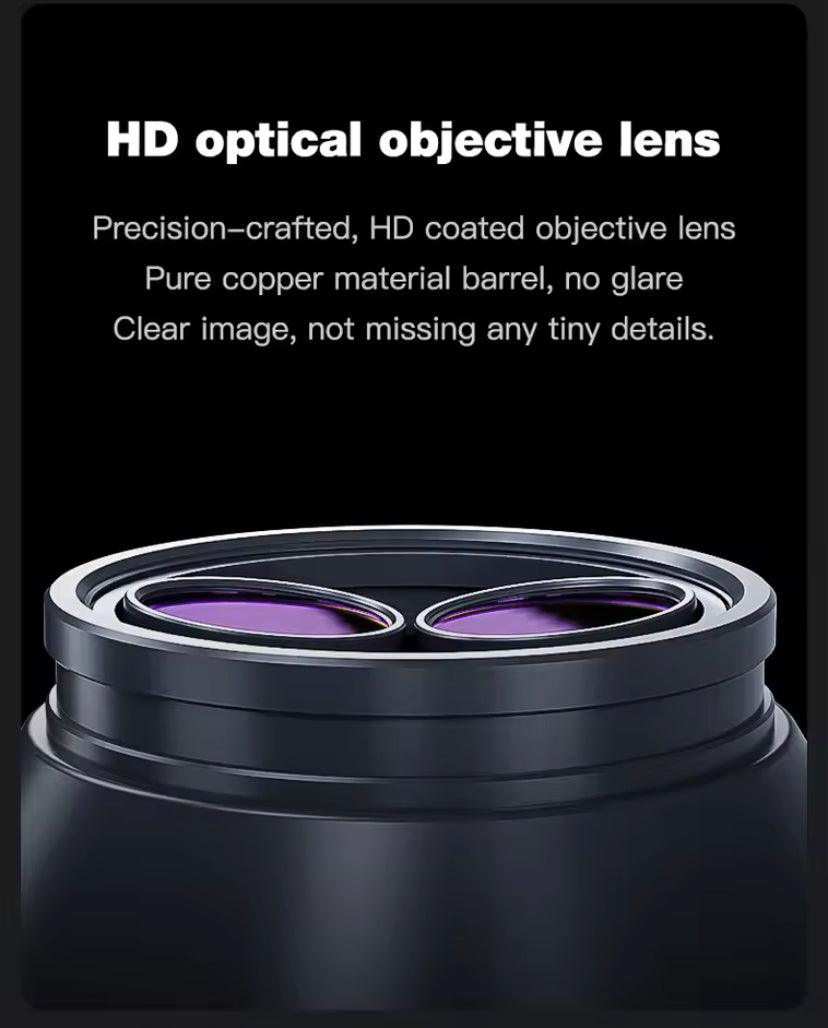

• Optics: Full optical glass components delivering high flatness and contrast

📏 Working Distance & Field of View

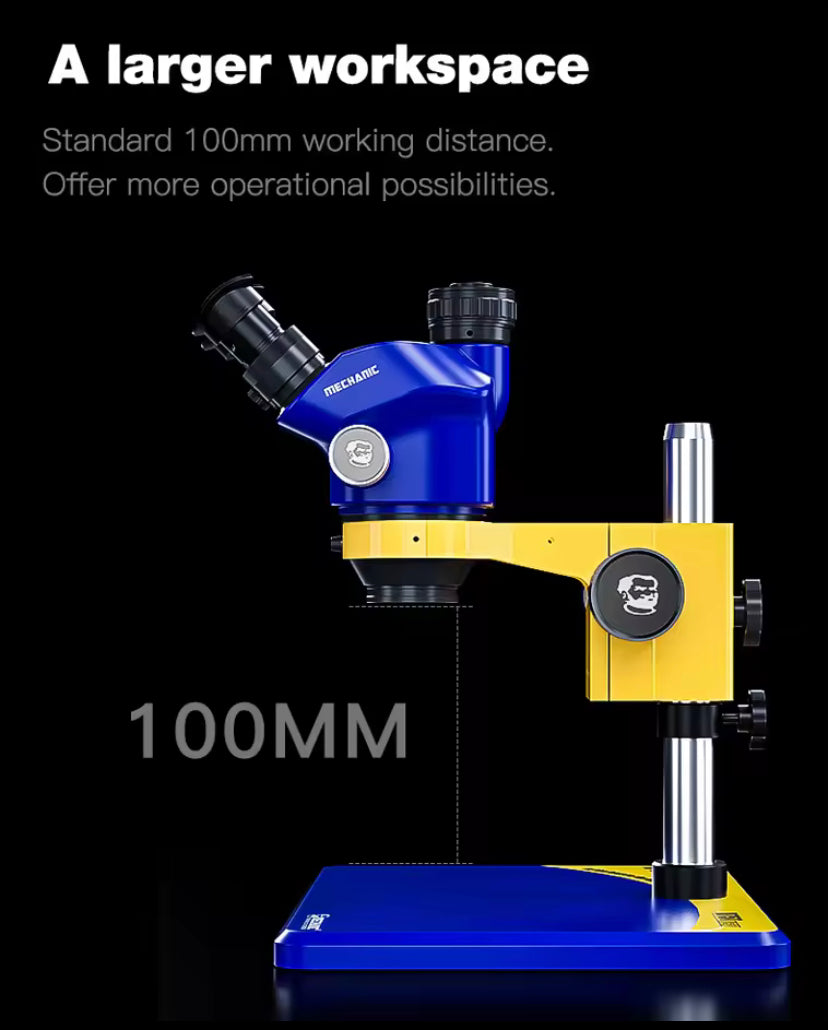

• Standard Working Distance: ~100 mm without auxiliary lens

• Extended Working Distance with Aux. Lenses:

  • 0.3×: ~287 mm

  • 0.5×: ~165 mm

  • 0.7×: ~120 mm

  • 1.5×: ~45 mm

  • 2.0×: ~30 mm

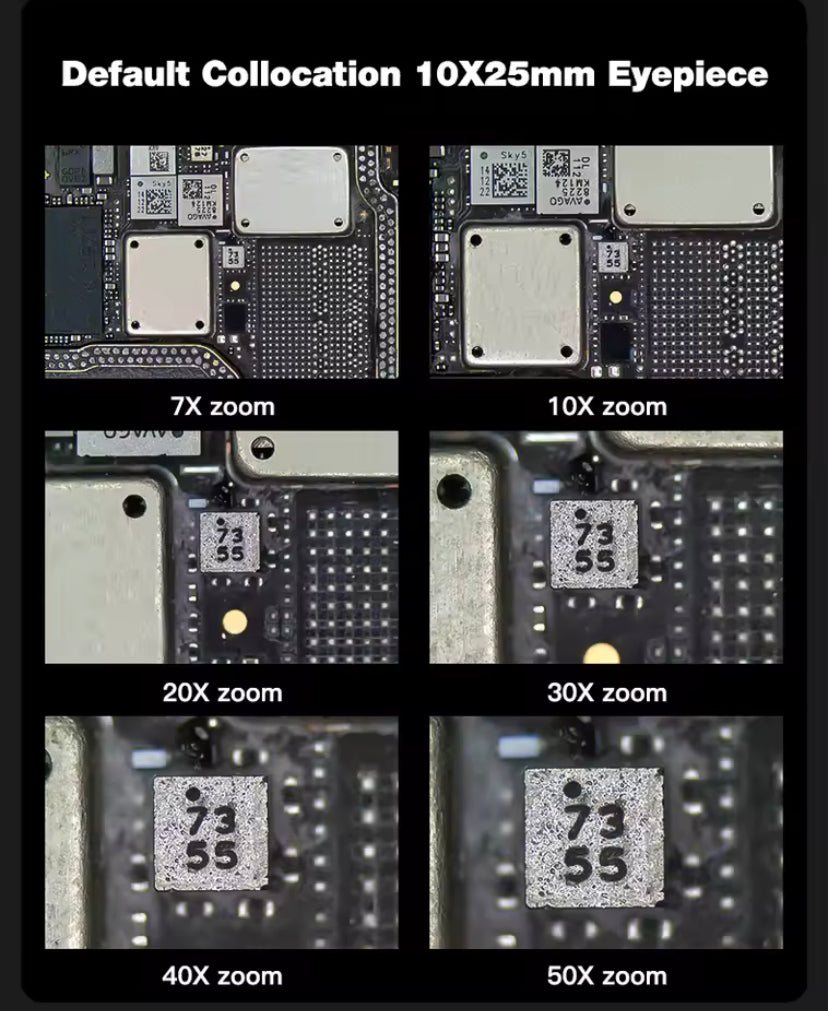

• Field of View: Large at low magnification (wide), narrowing progressively at higher magnification

🧱 Mechanical Design & Base

• Stand Type: Heavy-duty B11 all-metal base (approx. 320 × 260 mm)

• Adjustments: 50 mm vertical bracket travel for focus positioning

• Weight: Around 6 to 6.5 kg including accessories

• Product Dimensions: Roughly 195 × 256 × 225 mm

⚙️ Build & Applications

• Construction: Full-metal, stable and durable for long-duration use

• Focus Control: Dual-hand coarse focus knobs

• Ideal Use Cases: Mobile phone motherboard repair, PCB inspection, BGA/IC soldering, component rework, electronics diagnostics

📦 Standard Package Includes:

• Trinocular microscope head (with eyepieces)

• B11 metal base and bracket

• LED ring light

• CTV camera adapter

• Focus arm and height limiting shaft

• Dust-cover mirror and eyeguards

• Optional auxiliary objective lens (e.g., 0.7×)

• User manual and packaging

• Total weight about 6.5 kg

Summary Table
