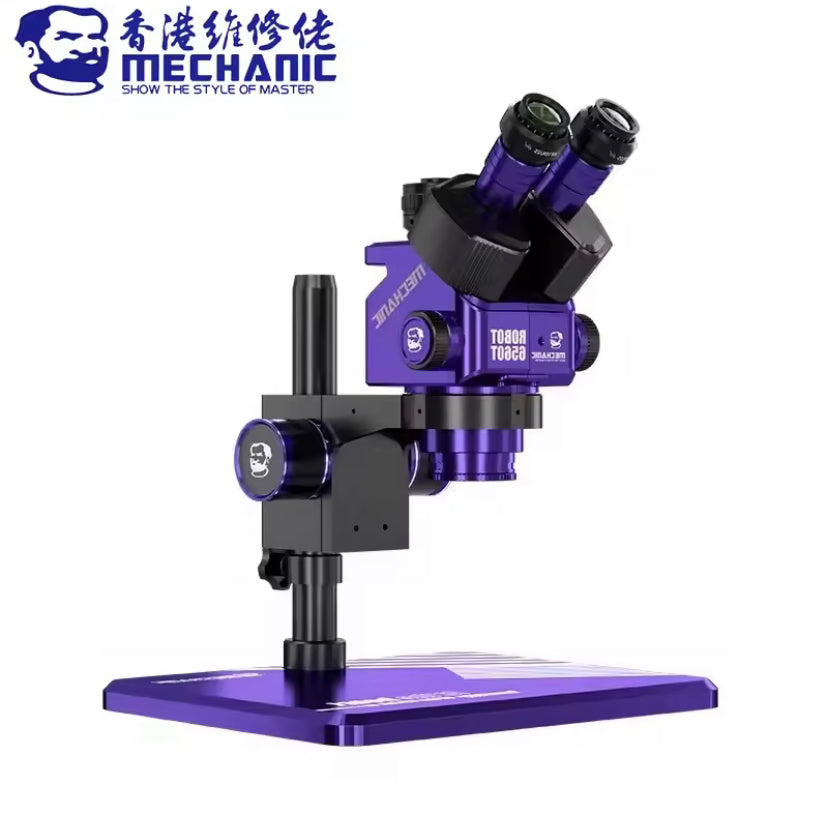

MECHANIC ROBOT 6560T-B11 6.5-60X Magnification Synchronous Zoom Microscope Cell Phone Repair Trinocular Stereo Microscope Tools

MECHANIC ROBOT 6560T-B11 6.5-60X Magnification Synchronous Zoom Microscope Cell Phone Repair Trinocular Stereo Microscope Tools

Regular price Rs.90,000.00 PKR
Regular price Sale price Rs.90,000.00 PKR
Sale Sold out

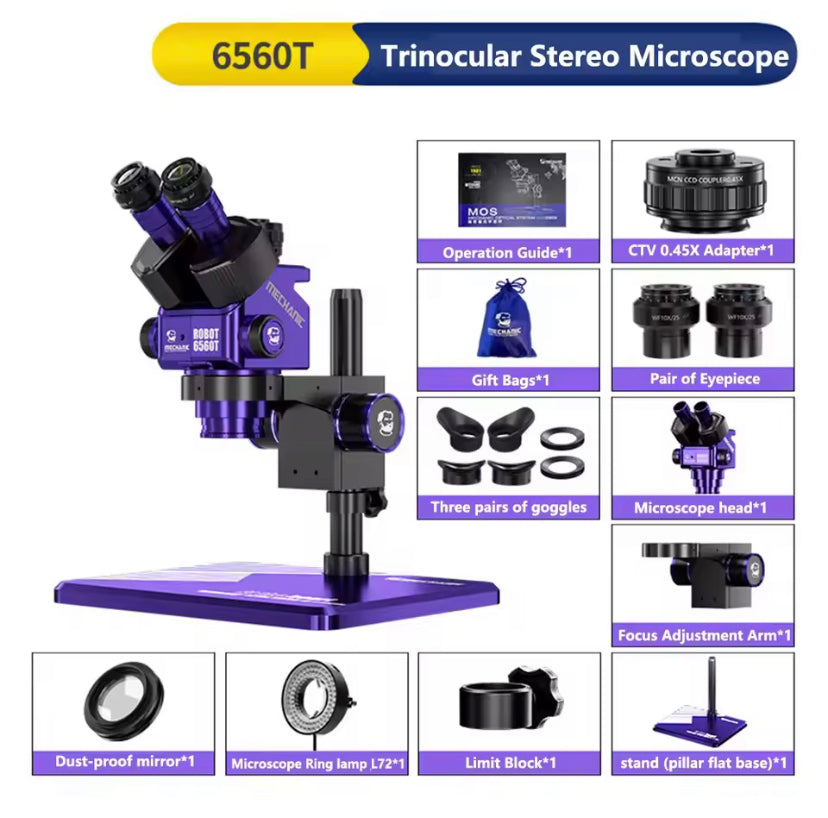

MECHANIC ROBOT 6560T‑B11 Microscope – Specifications

🔭 Optical & Magnification

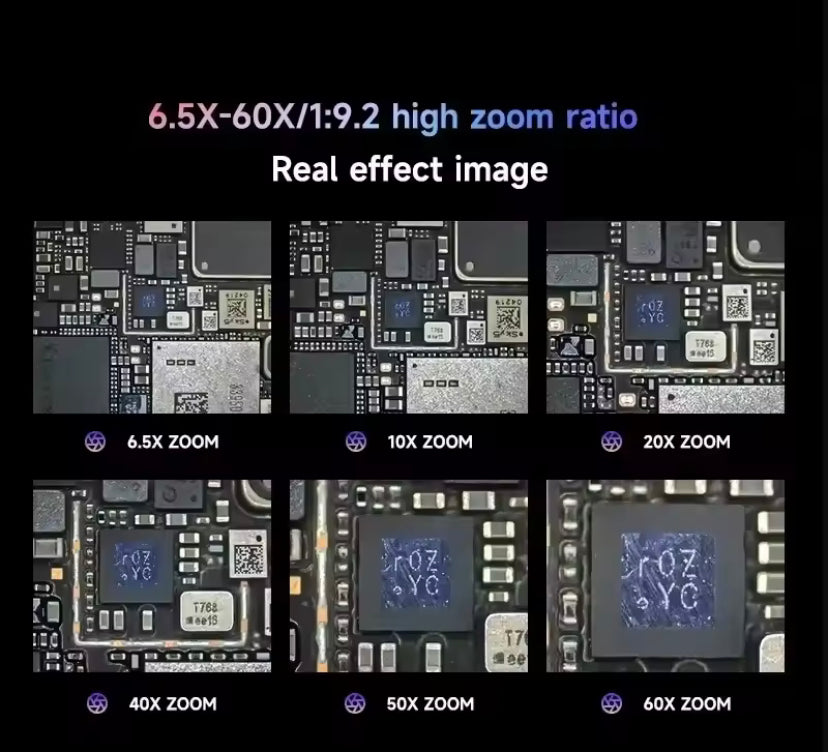

  • Magnification Range: 6.5× to 60× (standard configuration)

  • Zoom Ratio: 1 : 9.2 synchronous zoom system

  • Eyepieces: Wide-field WF10×/22 mm

  • Objective Lens: 0.65× – 6.0× continuous zoom

  • Auxiliary Lenses Supported: 0.5×, 0.75×, 1.5×, 2.0× (optional for changing working distance and magnification)

  • Trinocular Port: Allows simultaneous observation and camera output

🔬 Head & Viewing

  • Viewing Angle: 45° inclined

  • Rotation: 360° full rotation

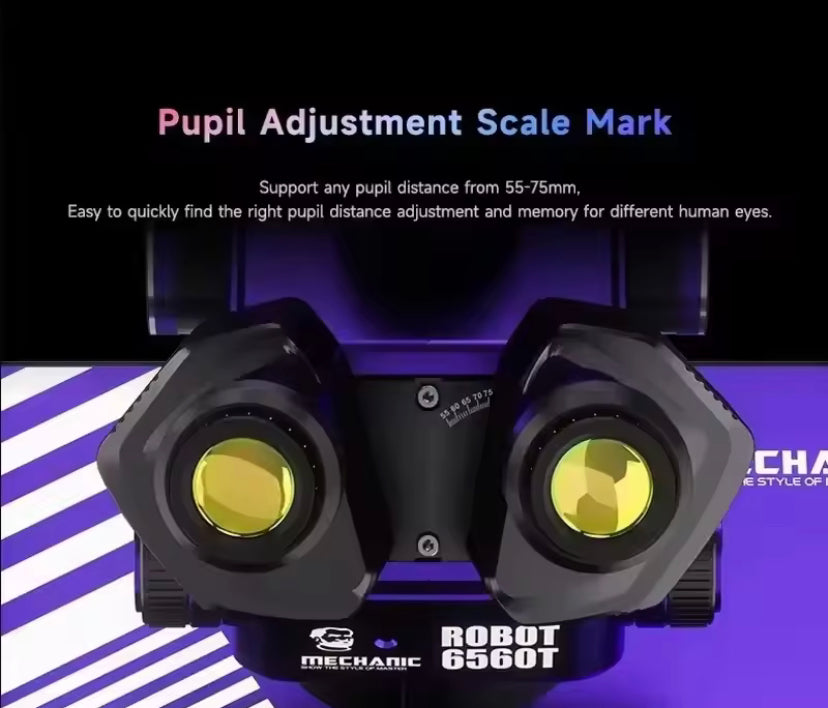

  • Interpupillary Distance: Adjustable (54 – 76 mm)

  • Diopter Adjustment: ±5 diopter on both eyepieces

  • Synchronous Zoom: Zoom remains synchronized across both eyepieces and the camera port

📷 Camera Compatibility

  • CTV Adapter: Includes 0.5× or 0.45× camera adapter

  • Camera Port: Dedicated trinocular port for microscope camera or HDMI digital display

💡 Illumination

  • Microscope head only; designed to be used with ring light (not included by default)

  • Compatible with LED or fiber optic ring lights

📏 Working Distance & Field of View

  • Standard Working Distance: Approx. 110 mm – 120 mm

  • Extended Working Distances: 165 mm or more with auxiliary lens

  • Field of View: Wide at low magnification, narrowing at high zoom (~31 mm down to ~5 mm)

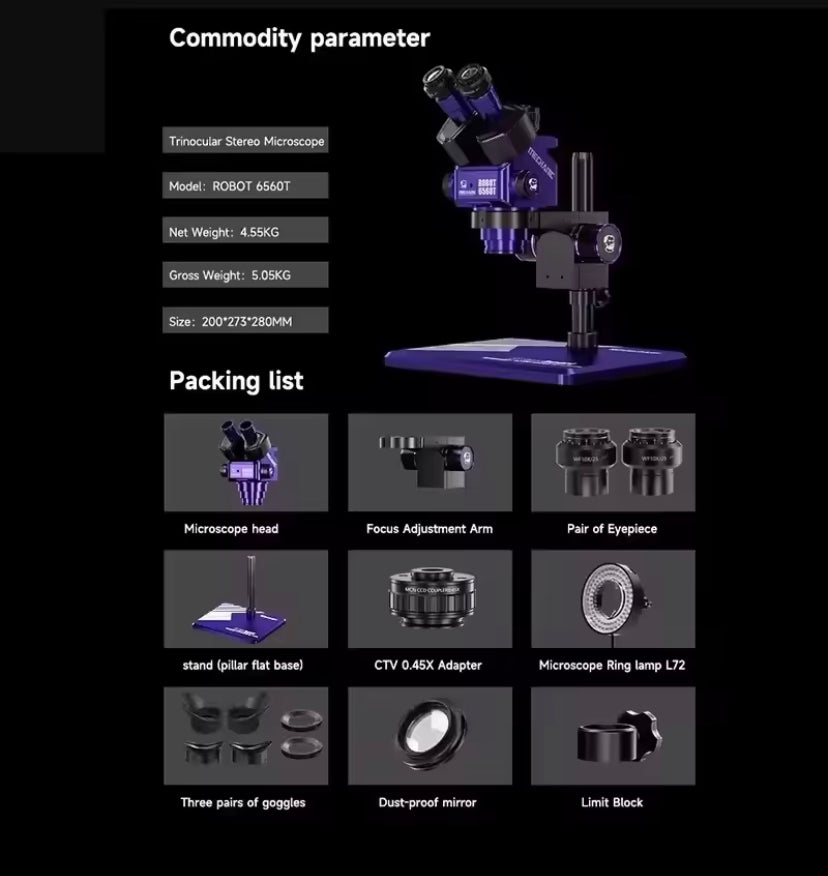

🧱 Mechanical Design

  • Stand/Base Type: B11 large heavy-duty metal base

  • Base Size: Approx. 320 × 260 mm

  • Bracket Diameter: 76 mm

  • Column Diameter: 32 mm

  • Total Height (with stand): ~280 mm – 300 mm

  • Weight: Approx. 6.5 – 7 kg

⚙️ Build & Use

  • Construction: Full metal body, precision-machined for durability

  • Focus Adjustment: Coarse focus knobs on both sides

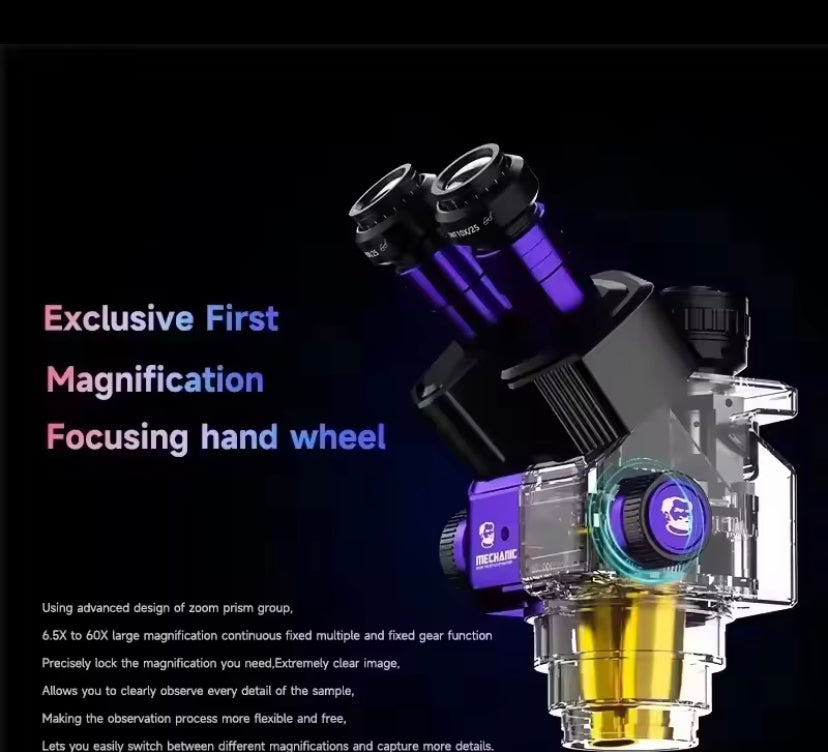

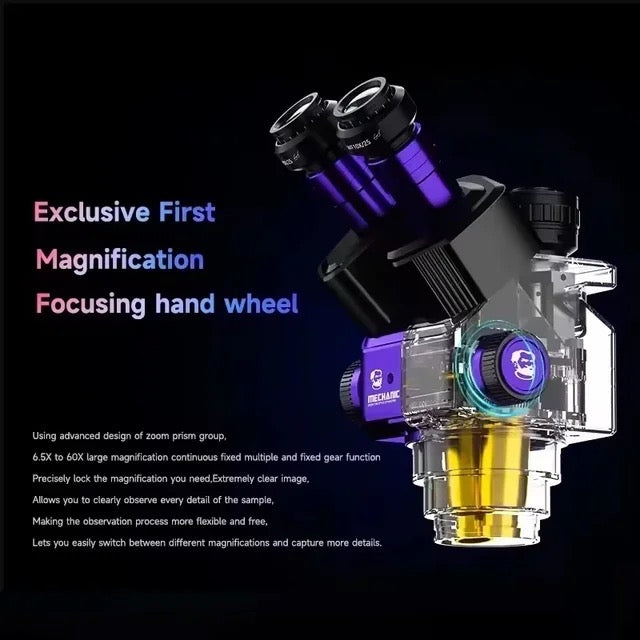

  • Zoom Control: Dual side-mounted synchronized zoom dials

  • Application: Mobile phone repair, micro soldering, IC rework, PCB inspection
