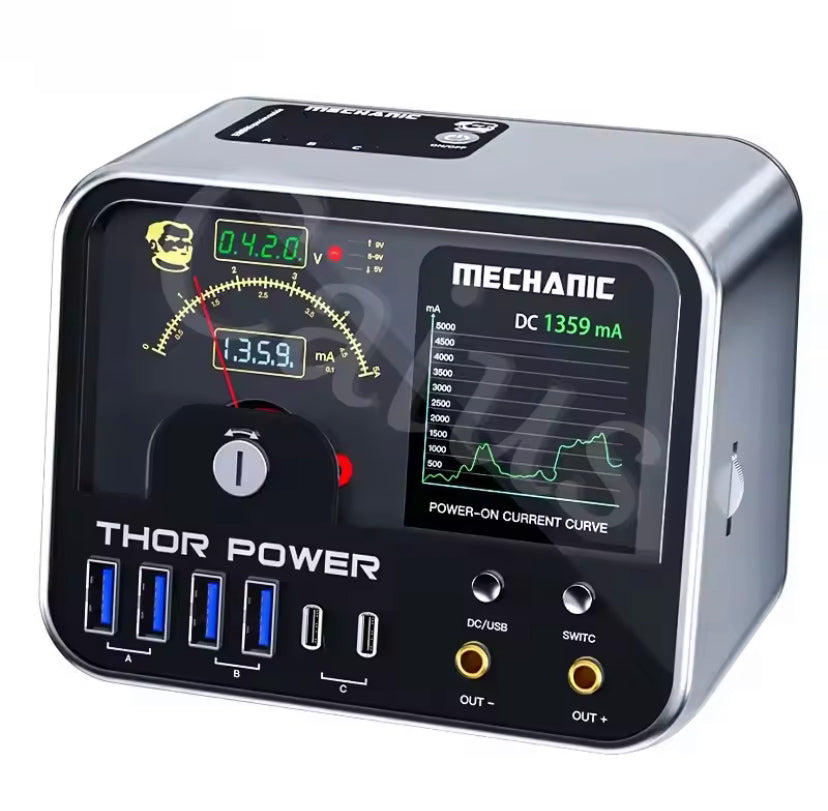

MECHANIC Thor Power Adjustable DC Regulated Power Supply Expansion Interface Intelligent IoT Digital Diagnostic Power Supply

MECHANIC Thor Power Adjustable DC Regulated Power Supply Expansion Interface Intelligent IoT Digital Diagnostic Power Supply

Regular price Rs.55,000.00 PKR
Regular price Sale price Rs.55,000.00 PKR
Sale Sold out

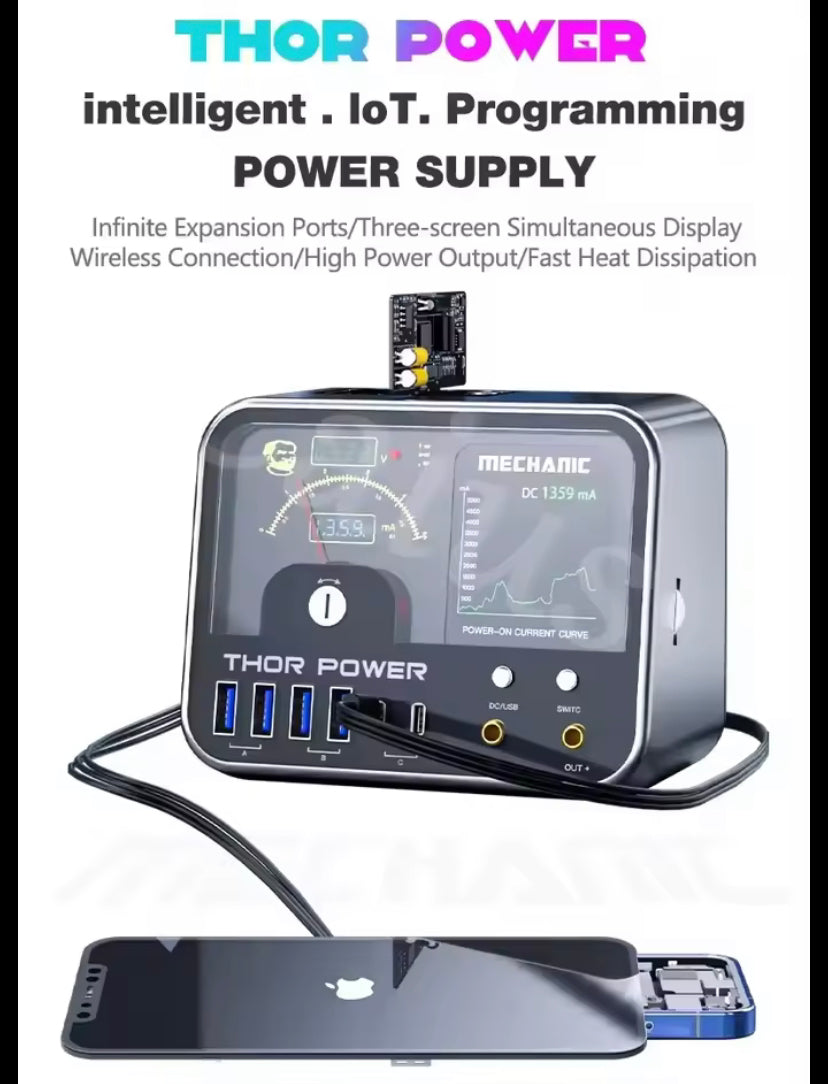

🔌 MECHANIC Thor Power – Intelligent DC Regulated Power Supply

✅ Key Features

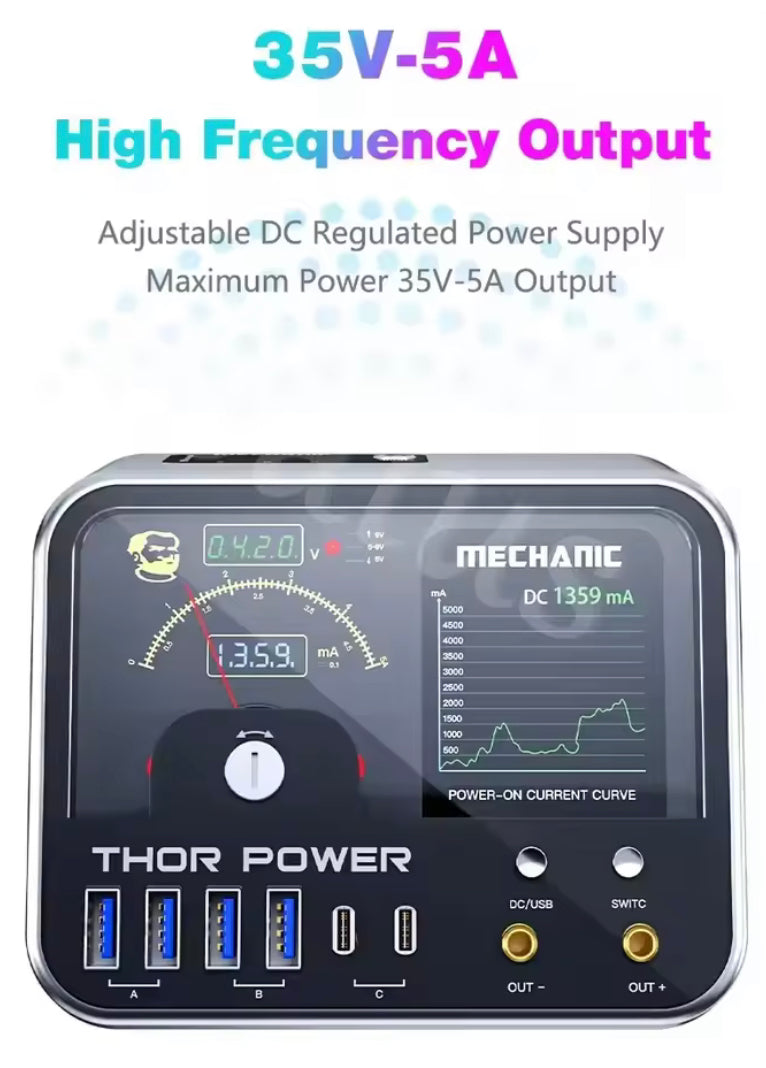

  • Adjustable output: DC regulated power up to 35 V / 5 A

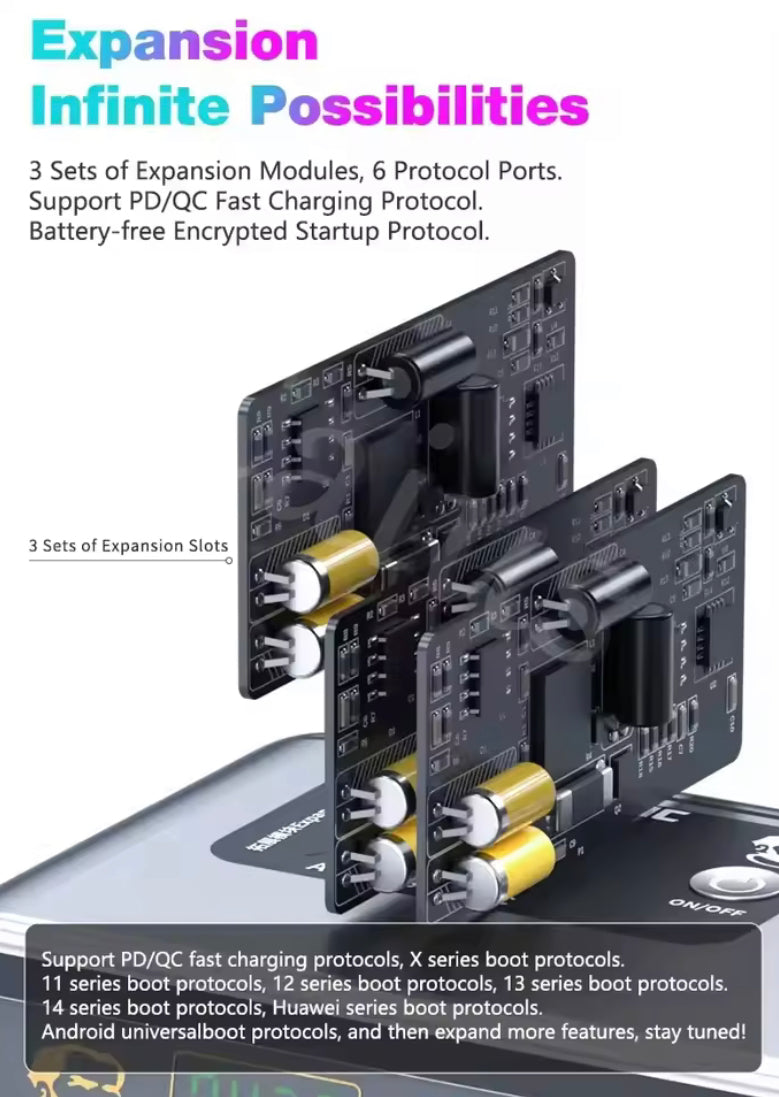

  • Expandable interfaces: Supports three screens and wireless control via Bluetooth/Wi‑Fi

  • Protocol versatility: Includes PD/QC fast‑charging support, encrypted battery‑free startup, and compatibility with iPhone, Huawei, and Android boot protocols

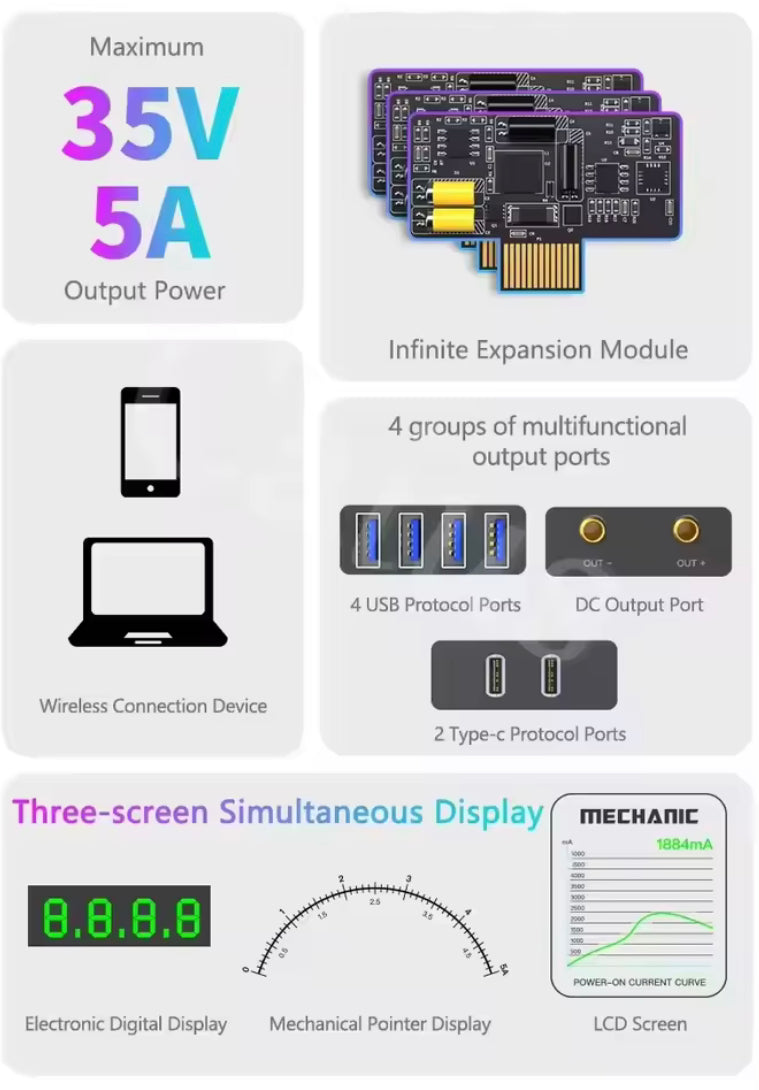

  • Six protocol ports: Four USB‑A, two USB‑C, plus one DC‑power port

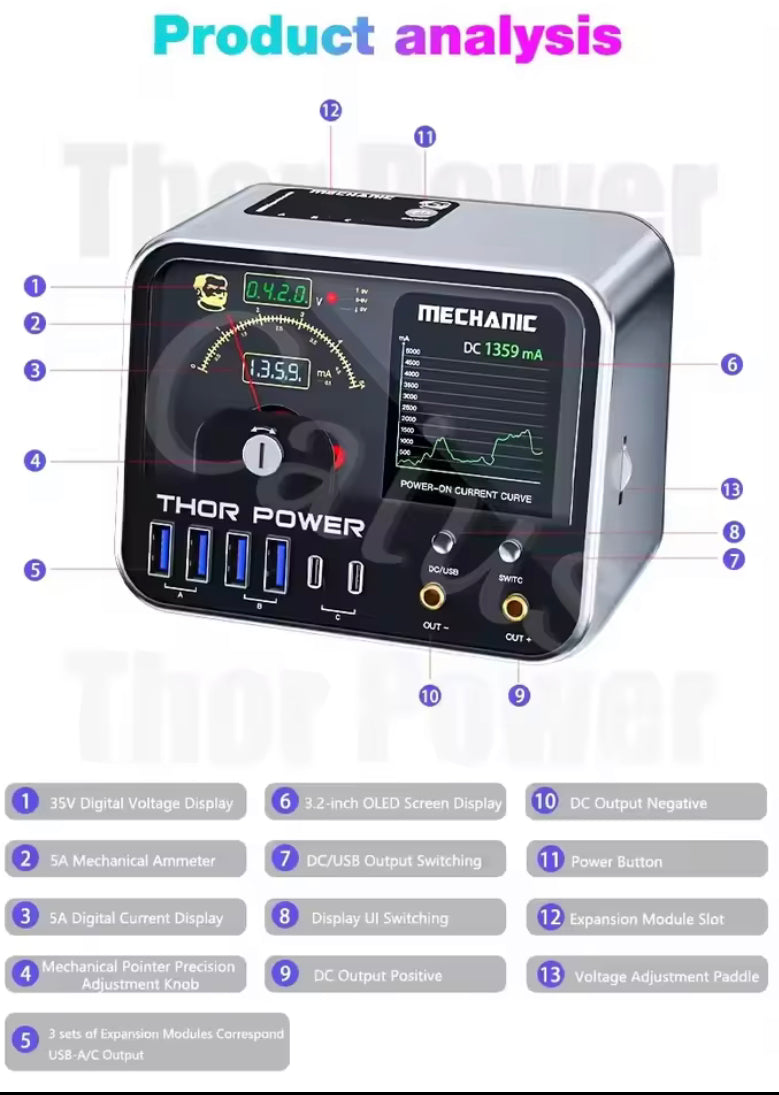

  • Dual display: Mechanical ammeter with digital OLED screen (3.2″) for real-time voltage/current readings

  • Fast heat dissipation: Built-in high-performance cooling system keeps temperature in check

  • Fault diagnostics: Captures millisecond-level current data, starts-up fault logs, slope-curve analysis, and remote software updates

  • Compact & portable: Measures 128.5 × 99 × 123 mm, weighs ~0.69 kg

🔋 Technical Specifications

Feature Details
Input Voltage AC 100–240 V, 50–60 Hz
Output Voltage / Current 0–35 V DC, up to 5 A
Power Capacity 175 W (max)
Interface Ports 4 × USB‑A expansion; 2 × USB‑C; 1 × DC output
Display Mechanical ammeter + dual OLED screen (3.2″)
Wireless Control Bluetooth and Wi‑Fi connectivity
Data Recording Startup current, fault logging, real‑time microamp accuracy
Cooling System High-frequency ventilation with active cooling
Dimensions (L×W×H) 128.5 × 99 × 123 mm
Net Weight ~0.69 kg
Gross Weight (boxed) ~1.2 kg
Expansion Modules Included PD module, QC module, alligator clip cable
