MECHANIC W04 Micro Battery Spot Welder with Four Gears for Phone Battery Repair Precision Mini Spot Welding Machine
MECHANIC W04 Micro Battery Spot Welder with Four Gears for Phone Battery Repair Precision Mini Spot Welding Machine
Regular price
Rs.12,000.00 PKR
Regular price
Sale price
Rs.12,000.00 PKR
Unit price
/
per
Couldn't load pickup availability

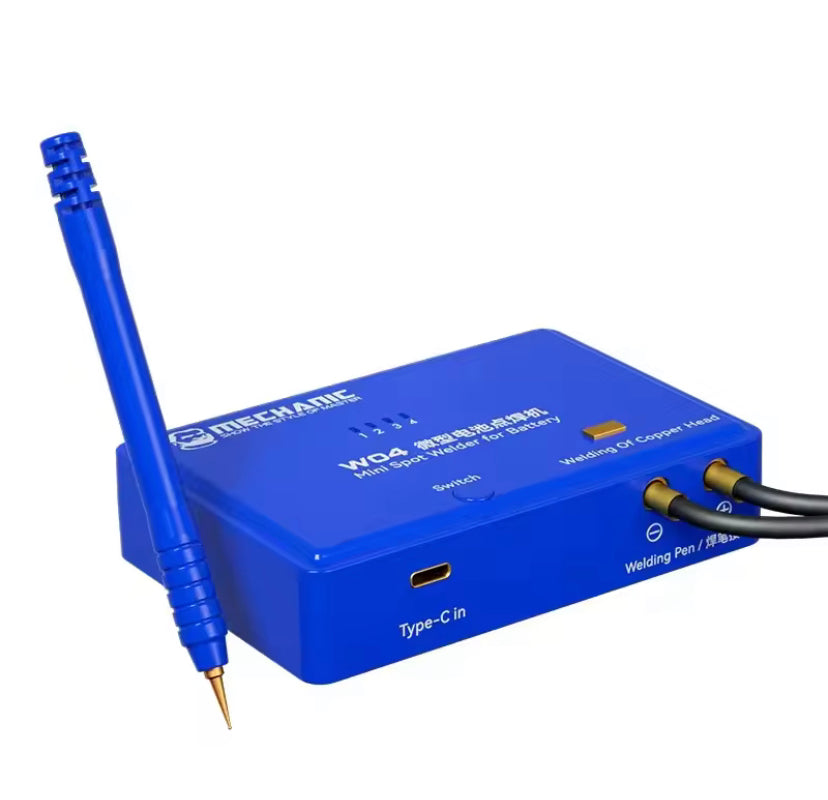

🔧 MECHANIC W04 Micro Spot Welder – Portable Battery & PCB Repair Tool
✅ Key Features
-

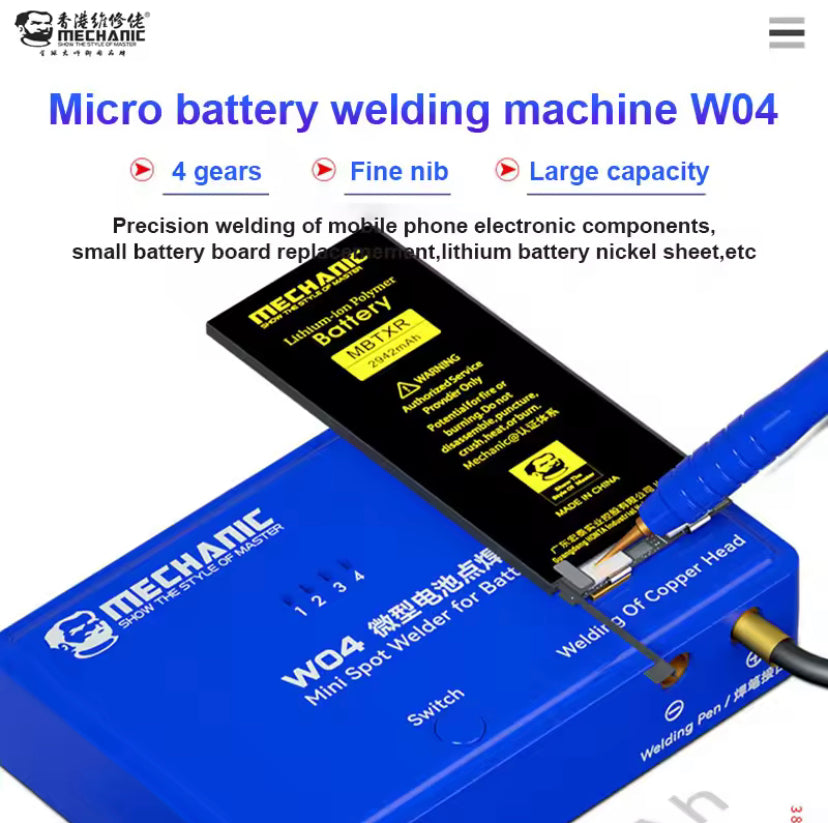

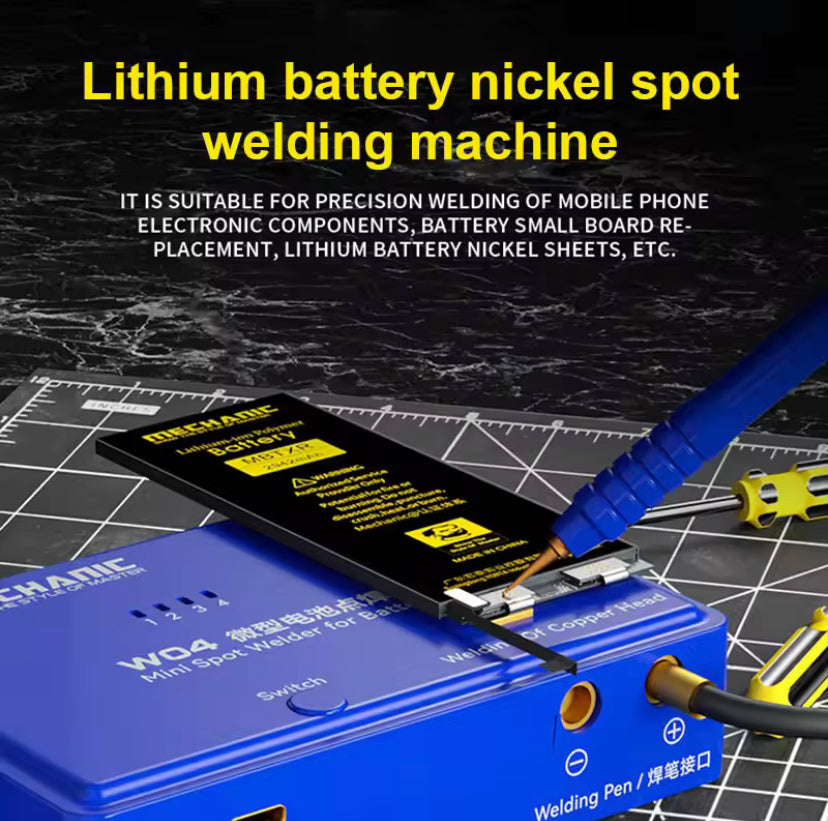

Precision spot-welder designed for mobile phone battery, PCB, and nickel sheet welding
-

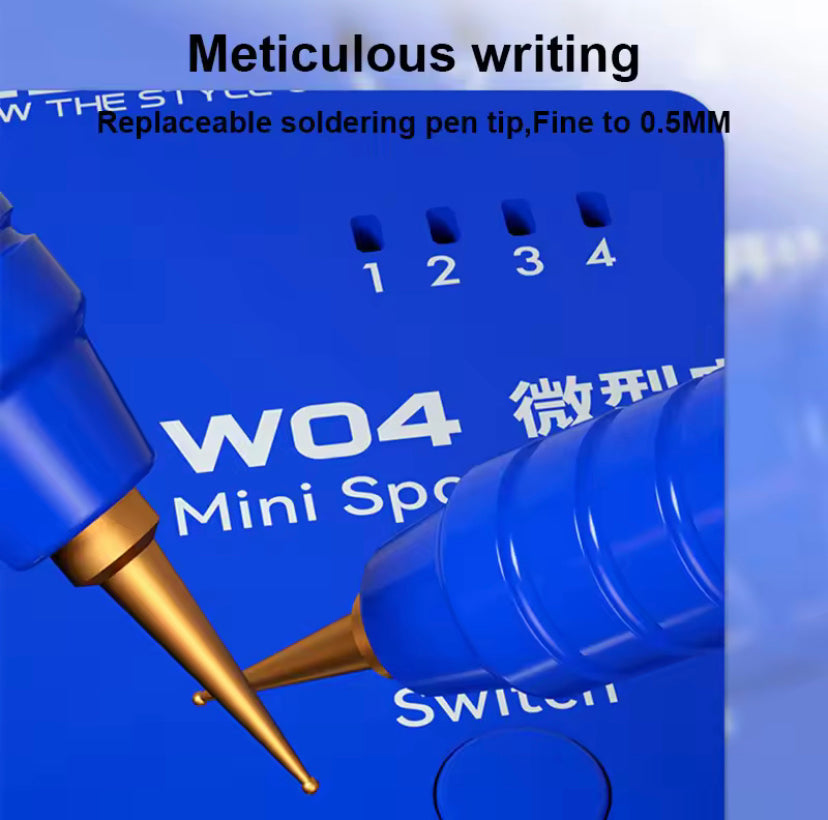

Ultra-fine welding tip (≈ 0.5 mm) ideal for delicate repair work
-

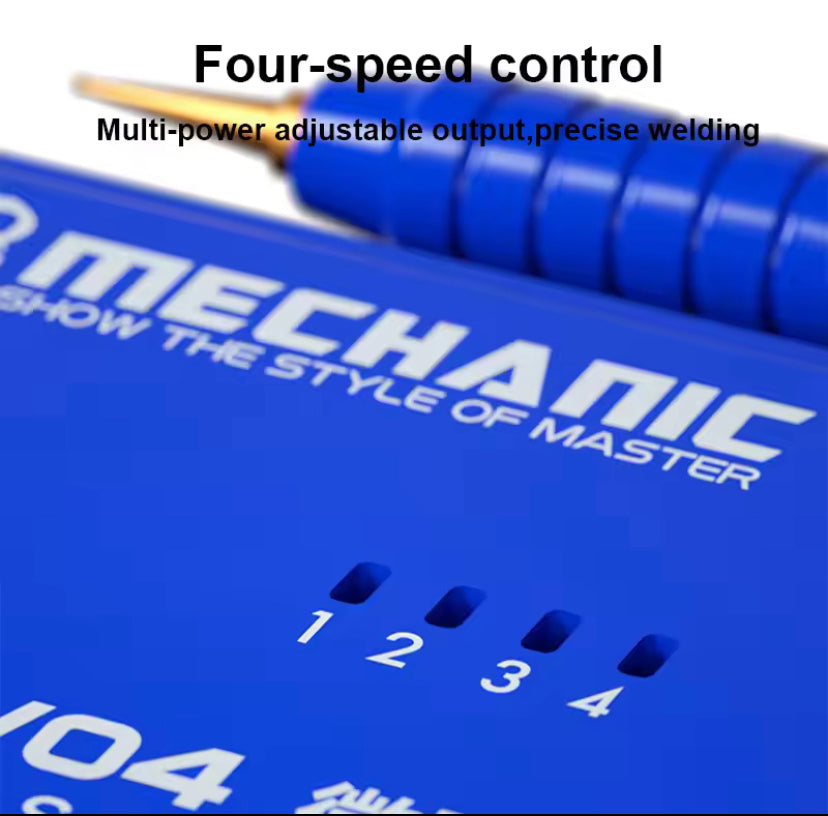

Four adjustable power gears for customized weld intensity
-
Built-in 3850 mAh battery, enabling cordless use as a power bank (5 V/2.4 A USB output)
-
High-current output (max ~650 A at up to 4.2 V)
-

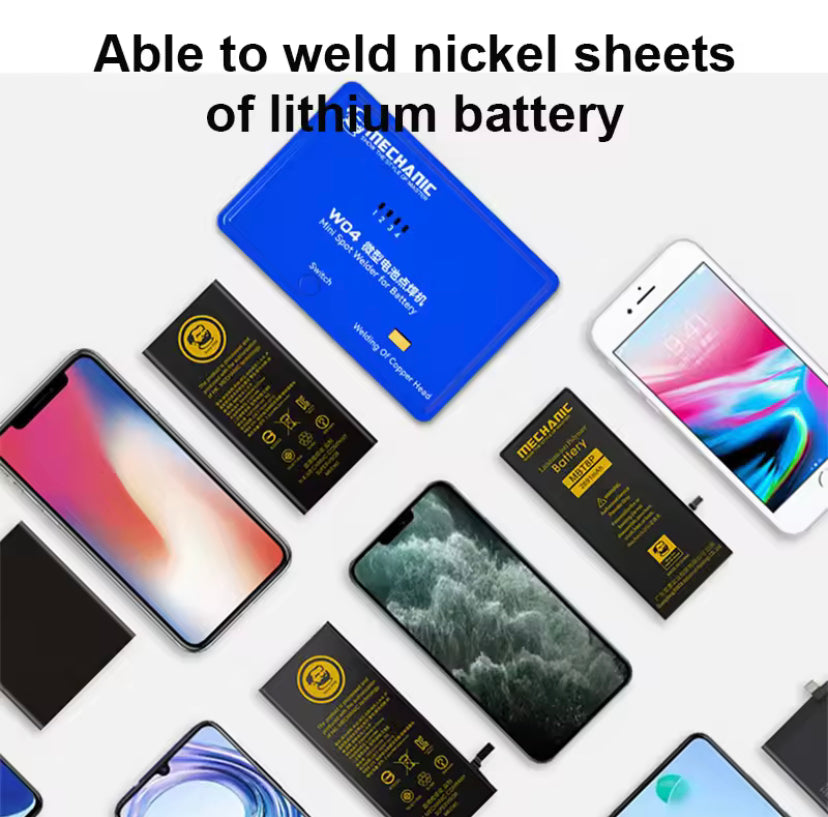

Suited for welding 0.1–0.2 mm thick nickel strips
📐 Technical Specifications
Specification | Details |
---|---|
Model | W04 |
Dimensions | ~112 × 85 × 25 mm |
Net Weight | ~260 g |
Internal Battery Capacity | 3850 mAh |
Output Voltage | Up to 4.2 V |
Max Welding Current | ~650 A |
USB Output | 5 V / 2.4 A (enables power bank function) |
Charging Input | 5 V / 2 A via Micro-USB |
Power Gears | Four-level adjustable |
Recommended Nickel Thickness | 0.1–0.2 mm |
