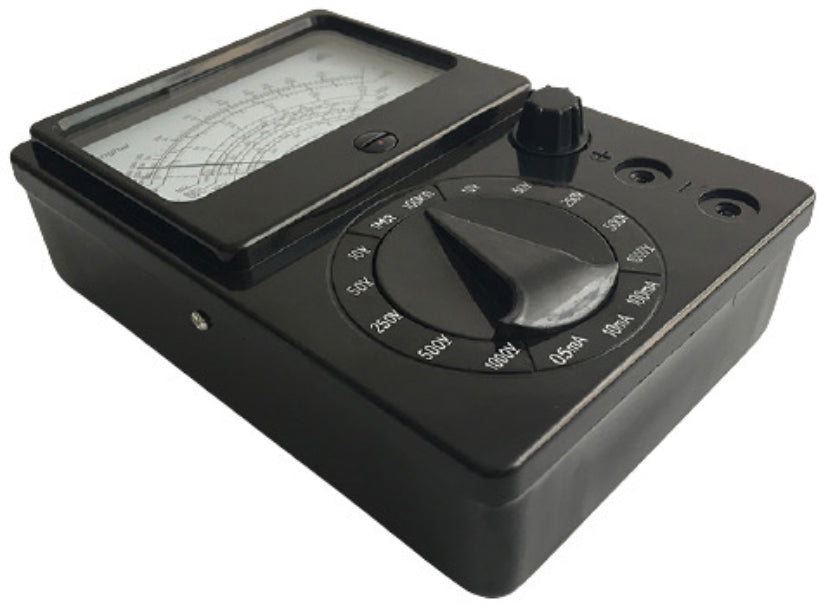

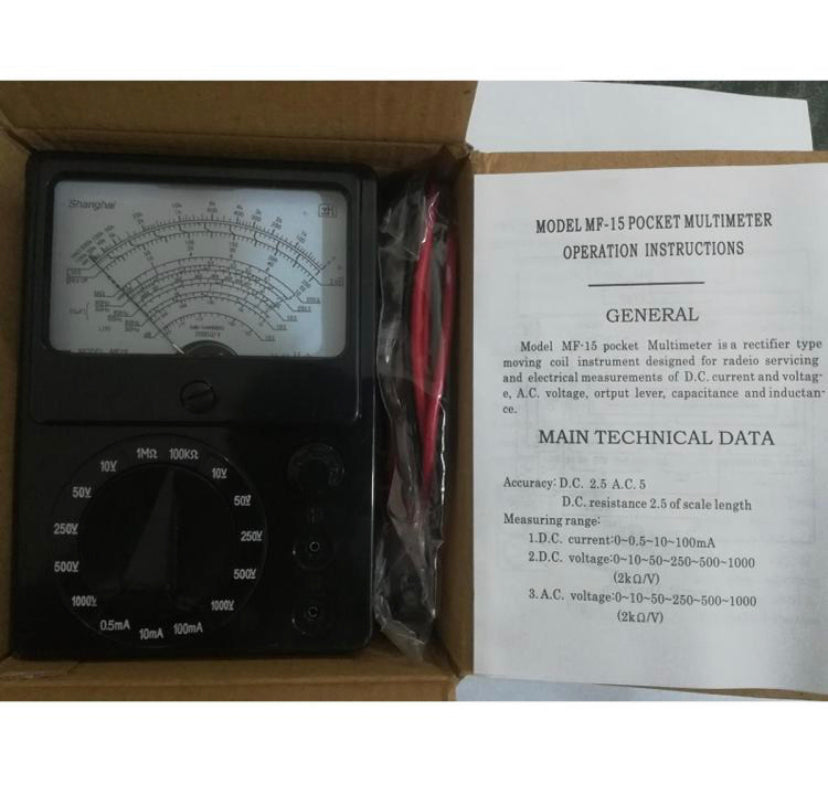

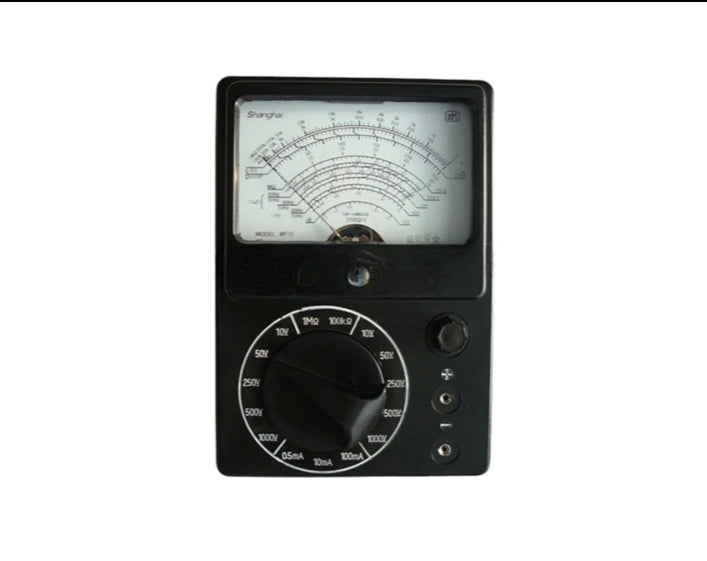

MF-15 Handheld Analog Multimeter – DC/AC Tester with Multiple Measurement Ranges

MF-15 Analog Multimeter – Specifications

• DC Voltage ranges: 0–10 V, 50 V, 250 V, 500 V, 1000 V (accuracy ~ ±2.5%)

• AC Voltage ranges: 0–10 V, 50 V, 250 V, 500 V, 1000 V (accuracy ~ ±5%, frequency range 45 Hz – 1 kHz)

• DC Current ranges: 0–500 µA, 10 mA, 500 mA (some variants include 0.5 mA, 10 mA, 100 mA)

• Resistance ranges: up to 100 kΩ and up to 1 MΩ (accuracy ~ ±2.5% of scale length)

• Capacitance range: 0.03 µF to 0.6 µF

• Inductance range: 10 H to 1000 H

• Output level ranges (for audio/signal levels): –10 dB, +22 dB, +36 dB, +50 dB, +56 dB, +62 dB

• Frequency range (for AC measurement): 45 Hz – 1000 Hz

• Operating temperature: 0 °C to +50 °C

• Relative humidity: below 85% RH

• Dimensions: approximately 132 mm × 92 mm × 43 mm

• Type: Analog pocket multimeter, moving-coil type
