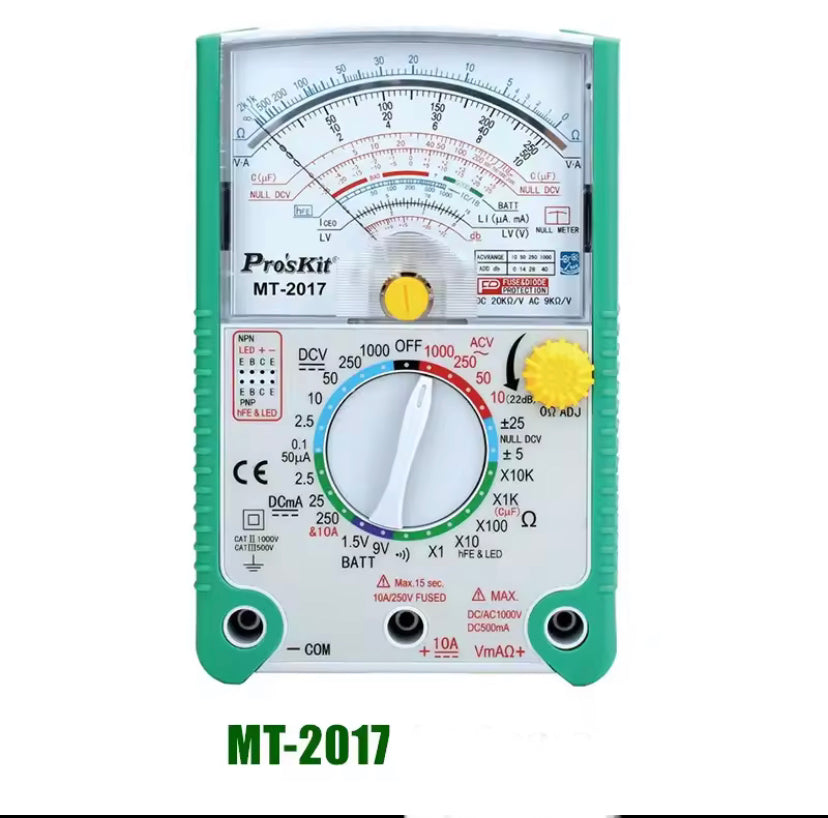

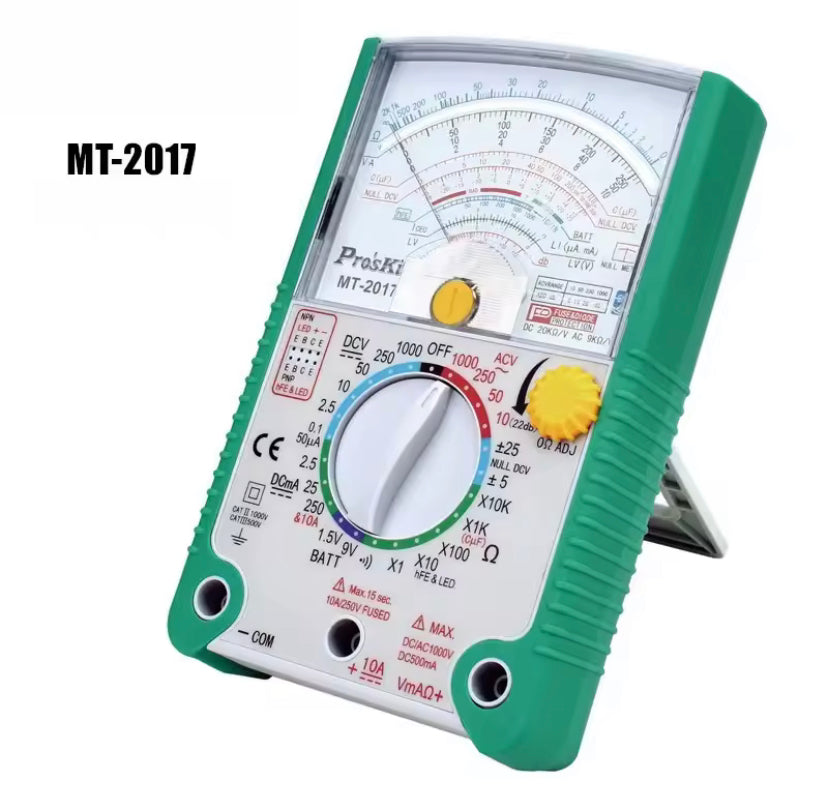

Pro'sKit Analog Pointer Multimeter MT-2017 Safety Standard Protective Function Ohm Test Meter DC AC Voltage Current Tool

Pro'sKit MT-2017 Analog Pointer Multimeter – Specifications

• Brand: Pro'sKit

• Model: MT-2017

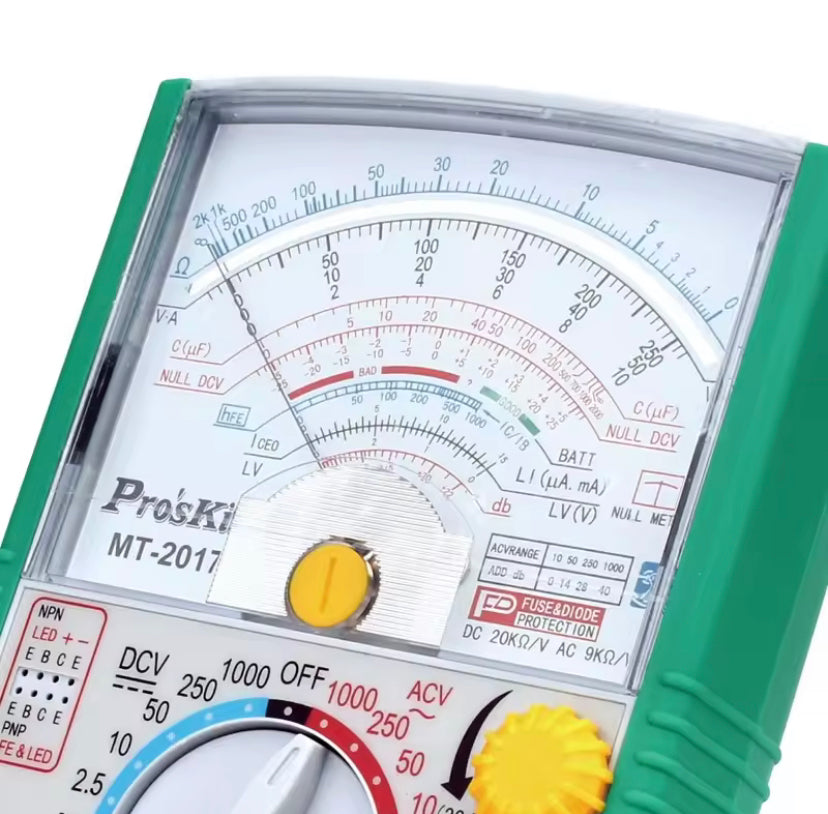

• Display: Analog pointer with mirrored scale

• DC Voltage: 0.1V, 2.5V, 10V, 50V, 250V, 1000V

• AC Voltage: 10V, 50V, 250V, 1000V

• DC Current: 50µA, 2.5mA, 25mA, 250mA, 10A

• Resistance Measurement: ×1, ×10, ×100, ×1K, ×10K

• Maximum Resistance: 20MΩ

• Continuity Test: Audible buzzer

• Diode Test: Yes

• LED Test: Yes

• Transistor Test: hFE measurement, 0–1000

• Battery Test: 1.5V and 9V

• Decibel Measurement: −22dB to +62dB

• Overload Protection: Yes

• Safety Rating: CAT II 1000V / CAT III 500V

• Power Supply: 2 × 1.5V AA batteries and 1 × 9V battery

• Dimensions: 160 × 105 × 40mm

• Weight: Approximately 390g, including batteries

Applications: Electrical troubleshooting, electronics repair, voltage and current measurement, resistance testing, continuity checking, and component testing.
