Proskit MT-2208 pointer meter high-precision mechanical external magnetic anti burn multimeter maintenance electrician's meter

Proskit MT-2208 pointer meter high-precision mechanical external magnetic anti burn multimeter maintenance electrician's meter

Rs.18,000.00 PKR
Rs.18,000.00 PKR
Sale Sold out

Pro’sKit MT-2208 Specifications

Function Range / Specification
DC Voltage 0.25V / 1V / 2.5V / 10V / 50V / 250V / 1000V / 2500V*
AC Voltage 10V / 50V / 250V / 1000V / 2500V*
DC Current 50µA / 0.5mA / 5mA / 50mA / 500mA / 10A
AC Current Not available
Resistance 0.2kΩ–200MΩ, using ×1 to ×100k ranges
Capacitance Approx. 50µF / 500µF / 5000µF
Diode Test Yes
LED Test Yes
Transistor Test hFE, 0–1000
Continuity Audible buzzer, under 50Ω
IR Remote Test Yes, infrared signal detection
dB Measurement −22dB to +62dB
Input Sensitivity 20kΩ/V DC, 9kΩ/V AC
Safety Rating CAT II 1000V / CAT III 500V
Power 2 × AAA 1.5V batteries
Dimensions 179 × 118 × 50 mm
Weight Approx. 500g, excluding leads/batteries

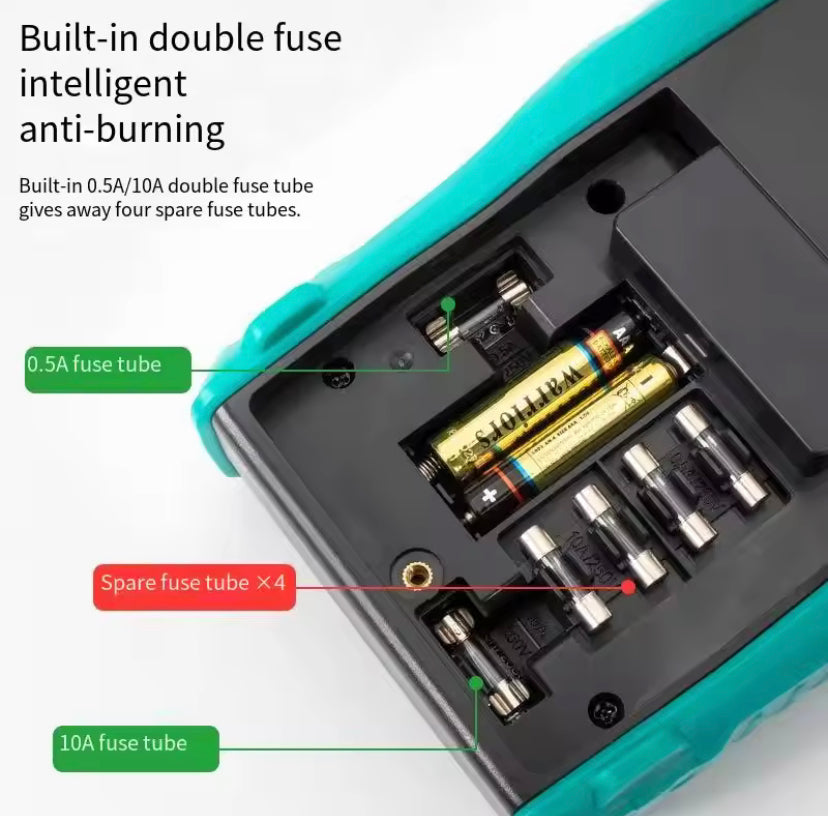

Protection 0.5A/250V and 10A/250V fuses + overload/misuse protection

*The 2500V ranges are special ranges and have specific measurement/protection limitations; they should not be treated as equivalent to a normal CAT-rated 2500V measurement. The manual specifies maximum overload protection according to the selected range.

Accuracy

  • DC voltage: ±3% FSD; ±4% FSD on higher ranges
  • AC voltage: ±4% FSD; ±5% FSD on higher ranges
  • DC current: ±3% FSD; ±4% FSD on higher ranges
  • Resistance: approximately ±4% of arc length, depending on range.

Important features

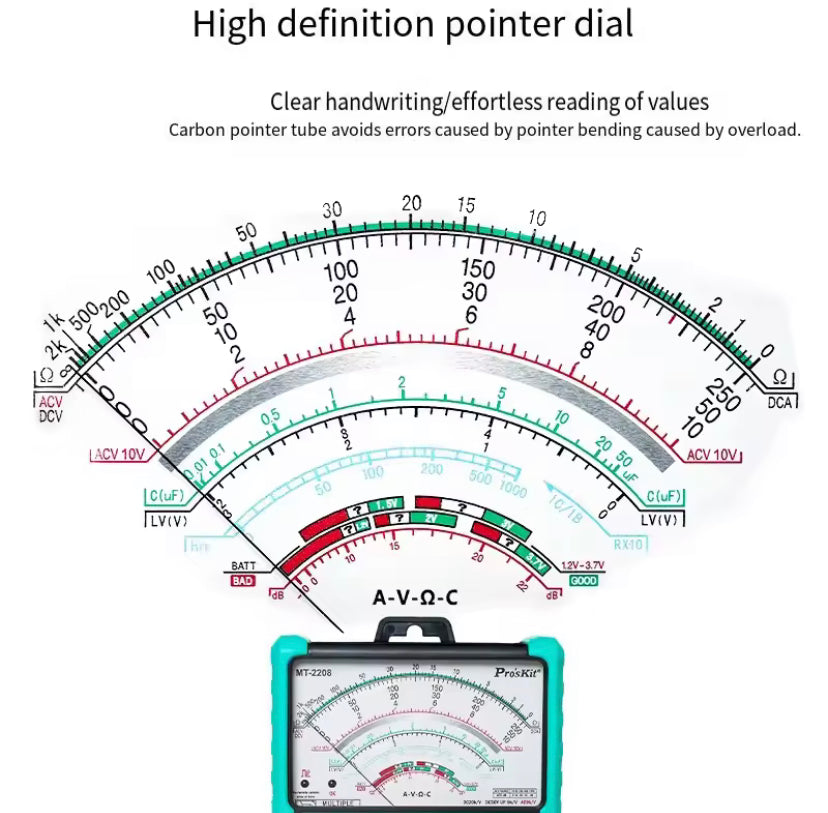

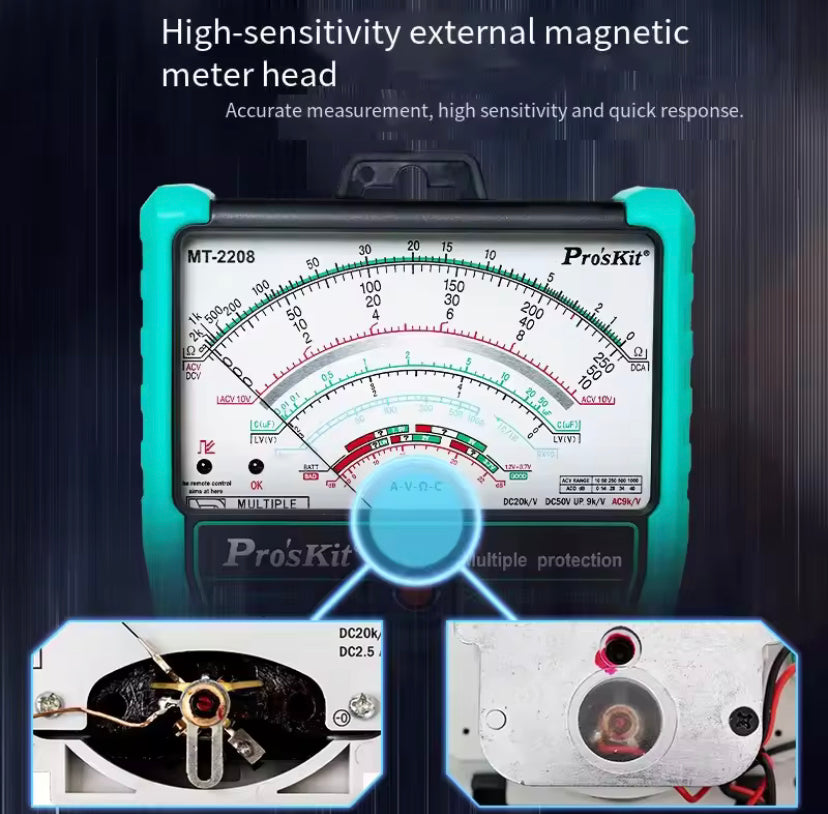

  • Analog high-sensitivity moving-coil meter
  • Robust protective rubberized case
  • 1000V/10A test leads
  • Overload and incorrect-use protection

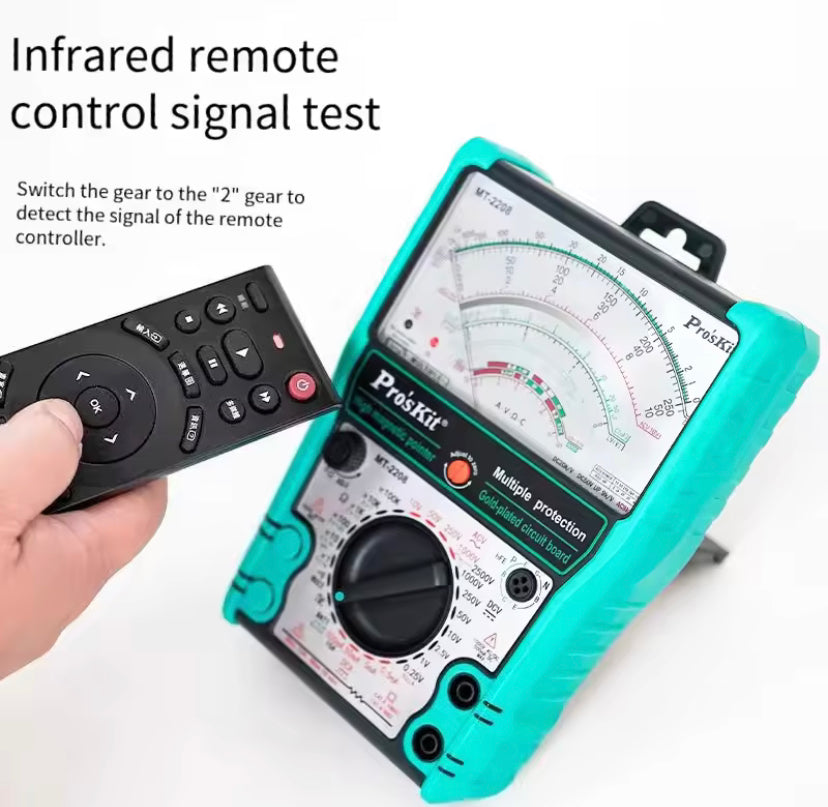

  • IR remote-control testing, which is a distinctive feature of the MT-2208
  • Can measure resistance up to 200MΩ
  • Built-in diode, LED, transistor, capacitance, continuity and battery testing.
