Specifications:
Model: BM803A+
Display Count: 3999
Jaw:52mm
DC voltage(V):400mV/4V/40V/400V/1000V
AC voltage(V): 400mV/4V/40V/400V/700V
DC current(A):40A/400A/1000A
AC current(A):40A/400A/1000A
Resistance(Ω):400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
Capacitance:10nF/100nF/1uF/10uF/100uF/1000uF/10mF
Frequency:100Hz/1kHz/10kHz/100kHz/1MHz/10MHz/40MHz
Temperature:-50~1000°(-58~1832°)
Duty range:1%~99%
Diode test:Y
Backlight:Y
Data hold:Y
Power Supply:1 x 9V 6F22 battery(not included)
Item weight:360g

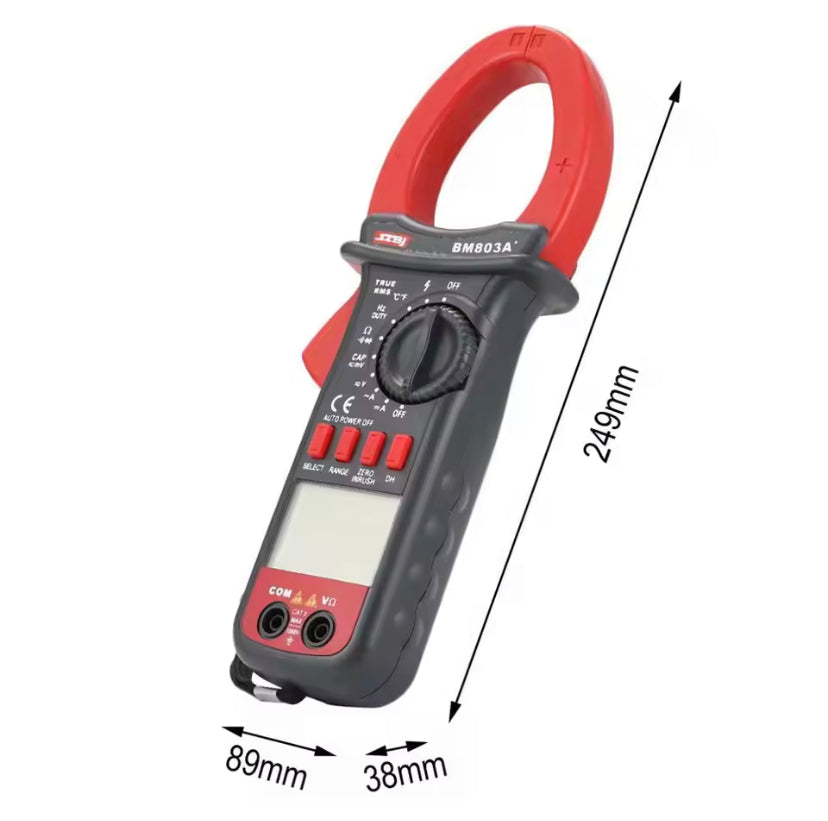

Item size:249x89x38mm
Package informations:
Package weight:645/1.42lb
Package size:286x124x53mm/11.26×4.88×2.09in
General Box Package
Package included:
1 x BM803A+ digital clamp multimeter
1 x Storage bag
1 x Test leads
1 x Temperature probe
1 x User manual
