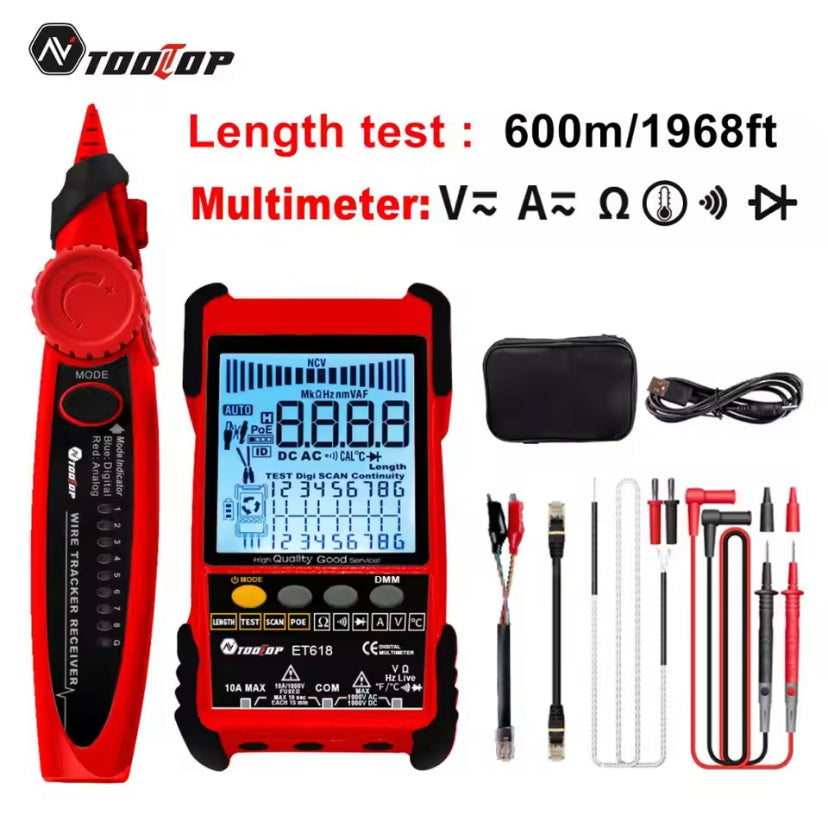

TOOLTOP ET 618 Network Cable Tester Multimeter Lan Cable Tracking POE Test 600M Length Measure Sensitivity Adjustable Line Tracker

Product Overview

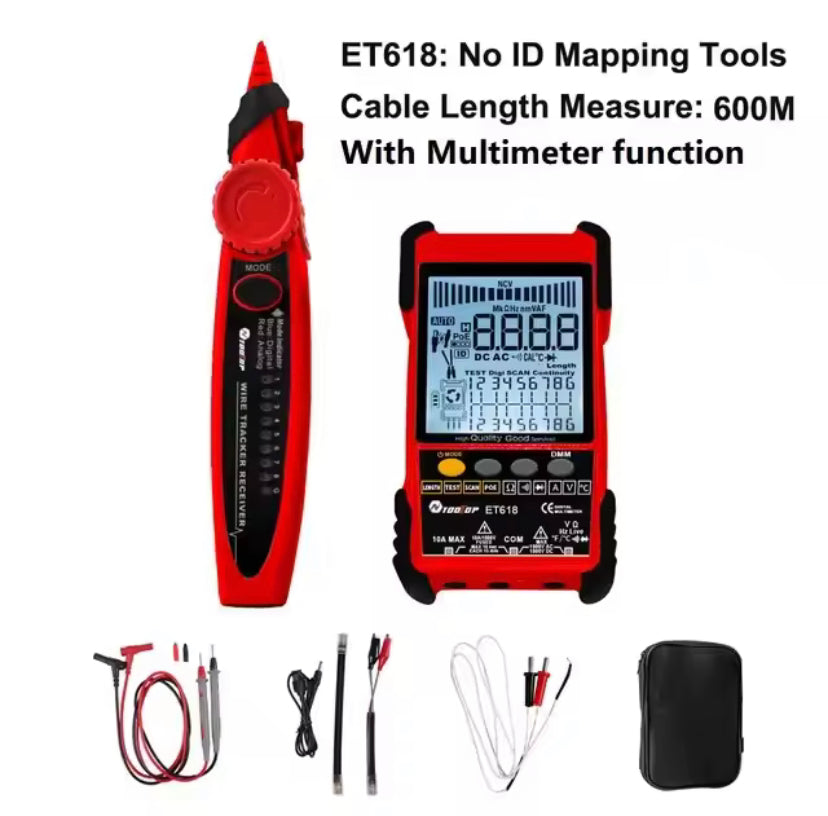

The TOOLTOP ET618 is a multifunctional handheld tester designed for diagnosing, tracing, and measuring network and electrical cables. It combines cable testing, PoE detection, and multimeter functions into one portable device.

Key Features

• Tests network cables for continuity, open, short, and cross faults.

• Measures cable length up to approximately 500 meters.

• Detects Power-over-Ethernet (PoE) voltage and polarity.

• Traces cables using both analog and digital signal modes.

• Built-in multimeter for measuring voltage, current, resistance, and temperature.

• Equipped with an LCD display for clear readings.

• Includes flashlight for use in dark environments.

• Adjustable sensitivity for cable tracing.

• Supports 8P8C, 4P4C, telephone, and BNC cables.

Technical Specifications

Cable Testing Functions:

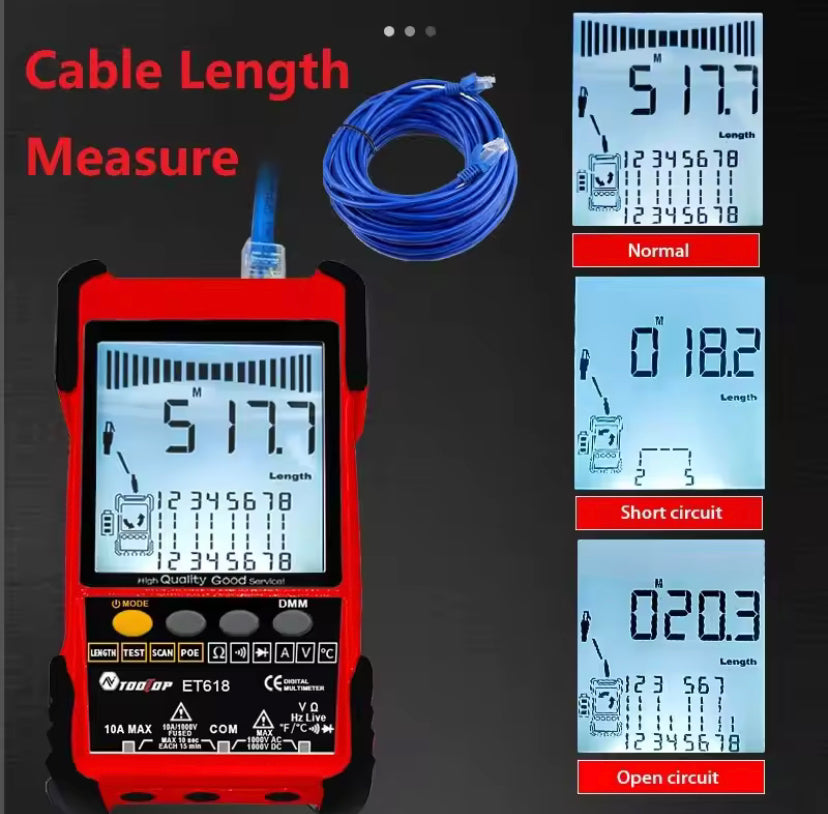

• Length measurement range: up to 500 m

• Cable types: RJ45 (Ethernet), RJ11 (telephone), BNC (coaxial)

• Fault detection: open, short, miswire, cross, and split pairs

• Wire mapping function for verifying pin-to-pin connections

PoE (Power-over-Ethernet) Test:

• Detects PoE presence, polarity, and voltage type

• Identifies powered pairs and voltage direction

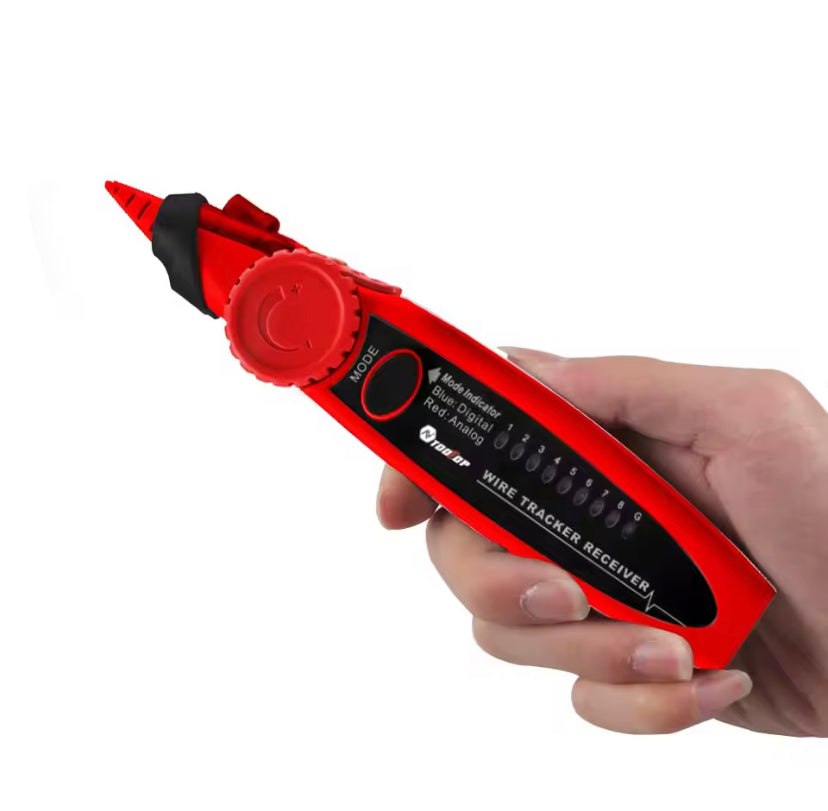

Cable Tracing:

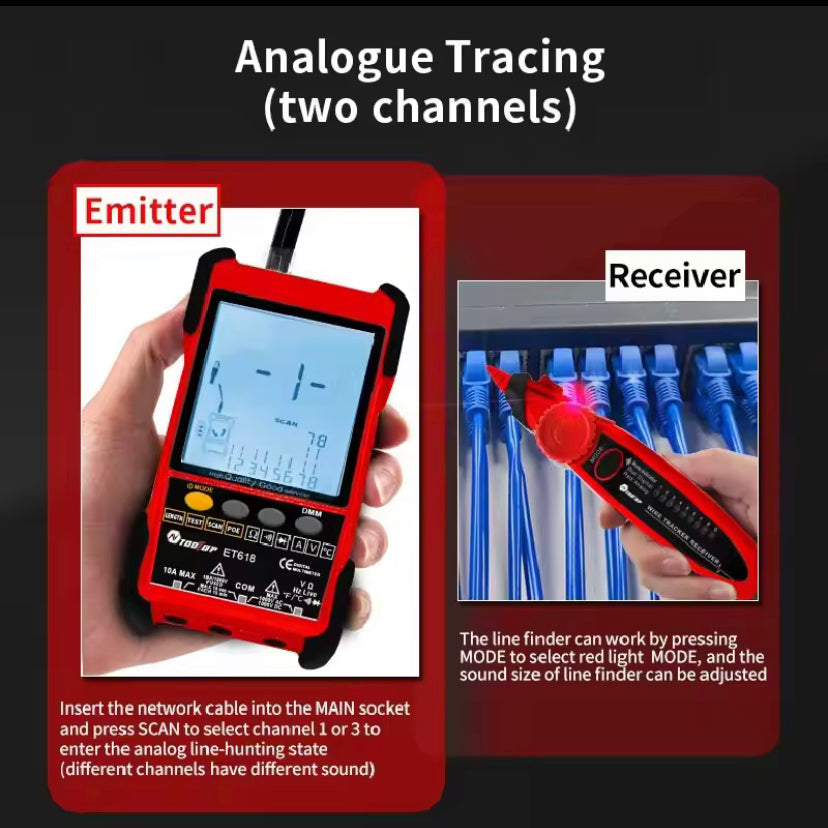

• Two modes: analog and digital tone generation

• Adjustable sensitivity for locating cables in bundles or walls

Multimeter Functions (ET618 model only):

• DC voltage range: 400 mV – 1000 V

• AC voltage range: 4 V – 400 V

• DC current range: up to 10 A

• AC current range: up to 10 A

• Resistance range: 200 Ω – 20 MΩ

• Continuity test with buzzer alert (<50 Ω)

• Diode and temperature test (K-type probe, −20 °C to 1000 °C)

• Non-contact voltage (NCV) detection

Power and Design

• Main unit power: Built-in 1250 mAh rechargeable lithium battery

• Receiver power: 9V battery

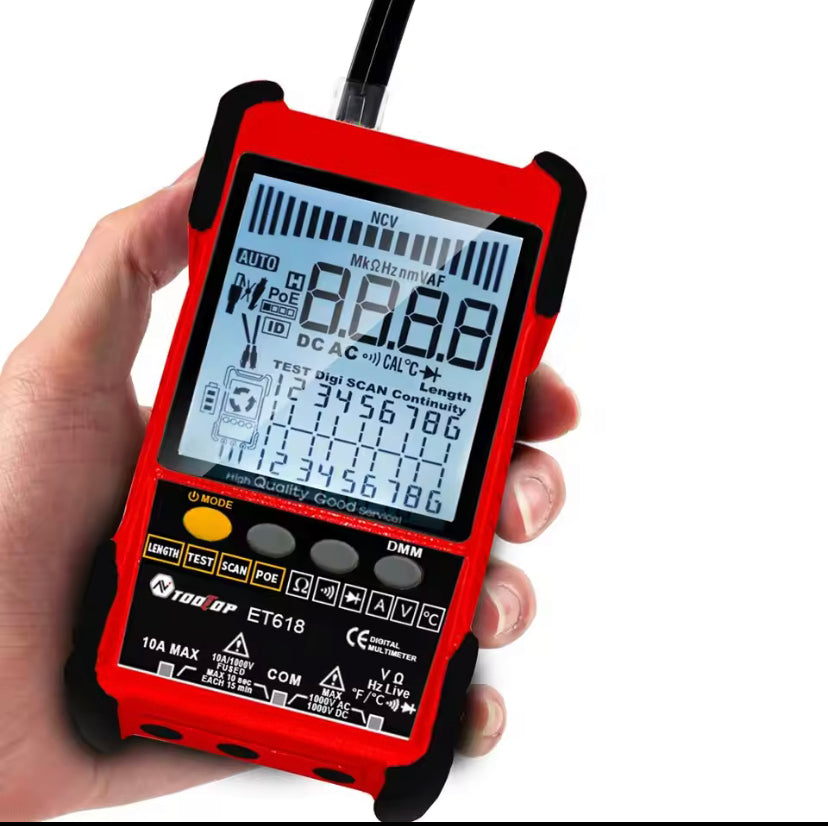

• Display: LCD screen with backlight

• Material: ABS plastic

• Dimensions: Approximately 255 × 164 × 61 mm

• Weight: Around 770 g

Applications

• Testing and troubleshooting Ethernet, telephone, and coaxial cables.

• Identifying faulty or broken connections in data or power lines.

• Measuring PoE voltage and verifying correct wiring in network installations.

• Basic multimeter testing for low-voltage electrical work.

• Cable tracing in home, office, or industrial setups.
