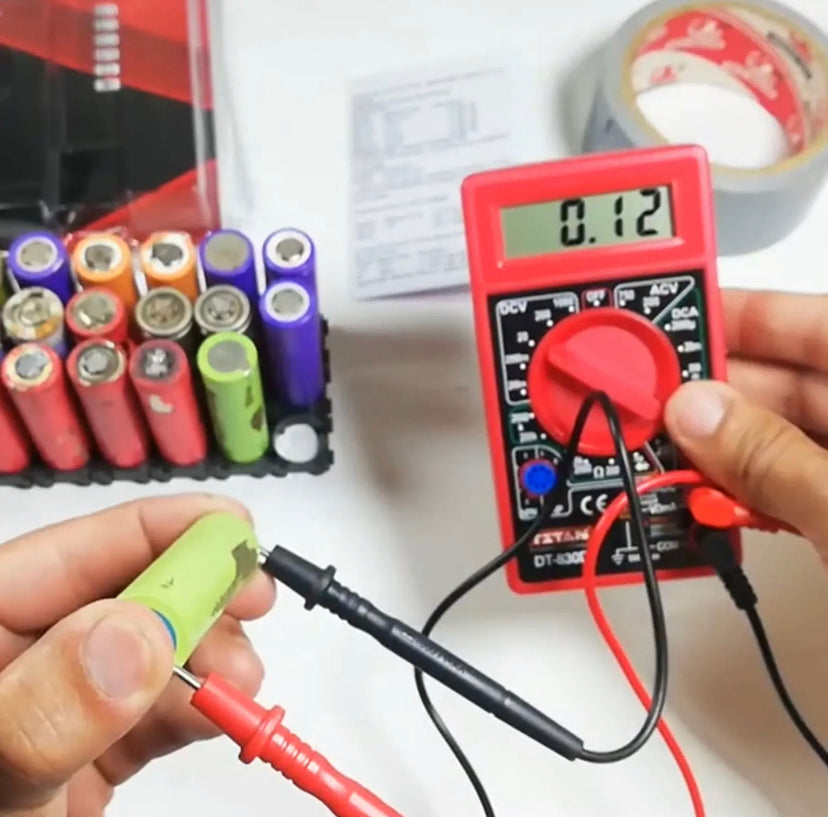

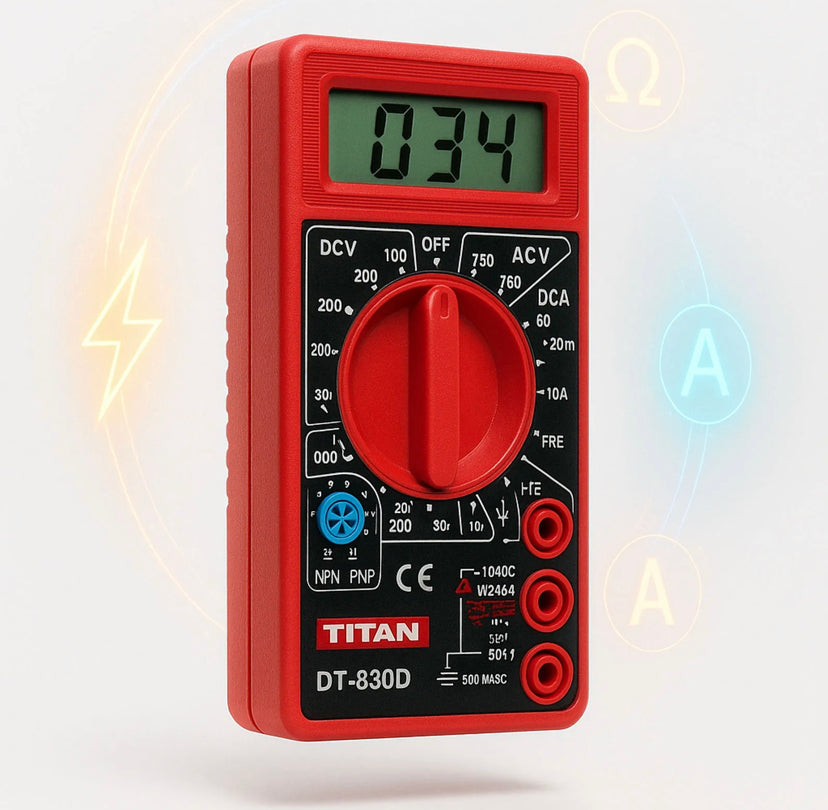

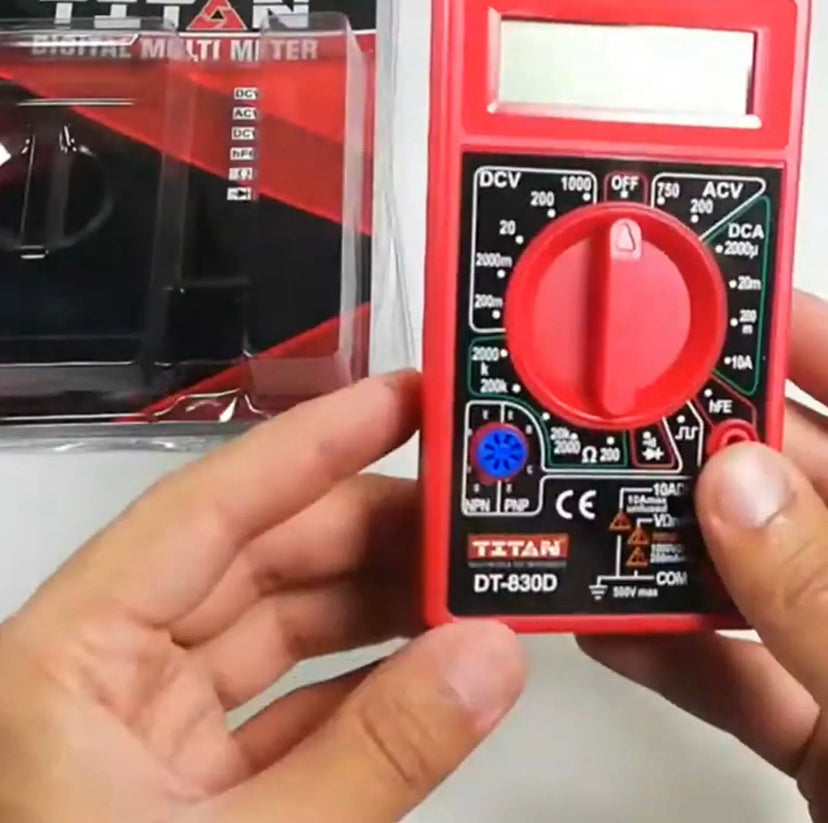

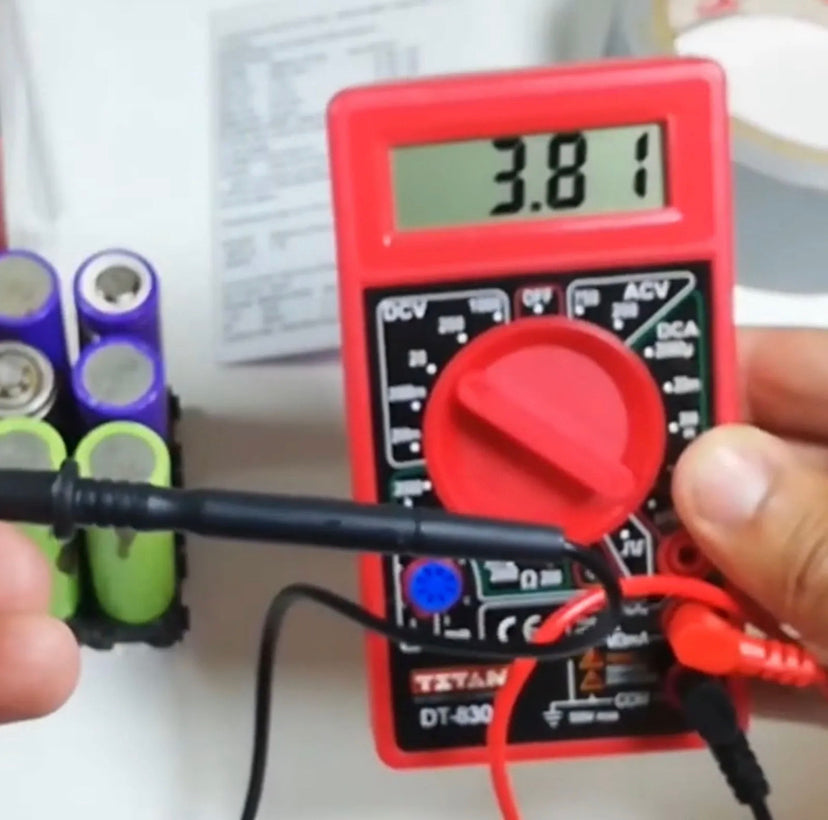

Titan DT830D Digital Multimeter – Handheld LCD AVO Meter for Voltage, Current, Resistance, Diode & Transistor Testing

DT830D Digital Multimeter – Specifications

• DC Voltage ranges: 200 mV, 2000 mV, 20 V, 200 V, 1000 V (accuracy ±0.5%)

• AC Voltage ranges: 200 V, 750 V (accuracy ±1.2%)

• DC Current ranges: 200 µA, 2000 µA, 20 mA, 200 mA, 10 A (accuracy ±1.0%)

• AC Current range: 10 A (accuracy ±1.5%)

• Resistance ranges: 200 Ω, 2000 Ω, 20 kΩ, 200 kΩ, 20 MΩ, 200 MΩ (accuracy ±1.0%)

• Transistor test (hFE): Yes, with transistor socket

• Diode test: Yes

• Continuity test: Yes (with buzzer)

• Display: 3½ digit LCD (1999 count), digit height ~15 mm

• Polarity indication: Automatic (with “–” sign for negative)

• Overload indication: “1” shown on display

• Sampling rate: Approx. 2–3 times per second

• Battery: 9 V (6F22 type)

• Fuse protection: 200 mA / 250 V fuse for current ranges

• Operating temperature: 0 °C to 50 °C

• Storage temperature: –10 °C to 50 °C

• Dimensions: ~138 mm × 69 mm × 31 mm

• Weight: ~150 g (including battery)
