WINAPEX 189C/D Portable Rotary Dial Digital Multimeter AC DC Voltage Current Tester NCV Diode Capacitance Resistance Meter

WINAPEX 189C/D Portable Rotary Dial Digital Multimeter AC DC Voltage Current Tester NCV Diode Capacitance Resistance Meter

Rs.5,500.00 PKR
Rs.5,500.00 PKR
Sale Sold out
MODEL

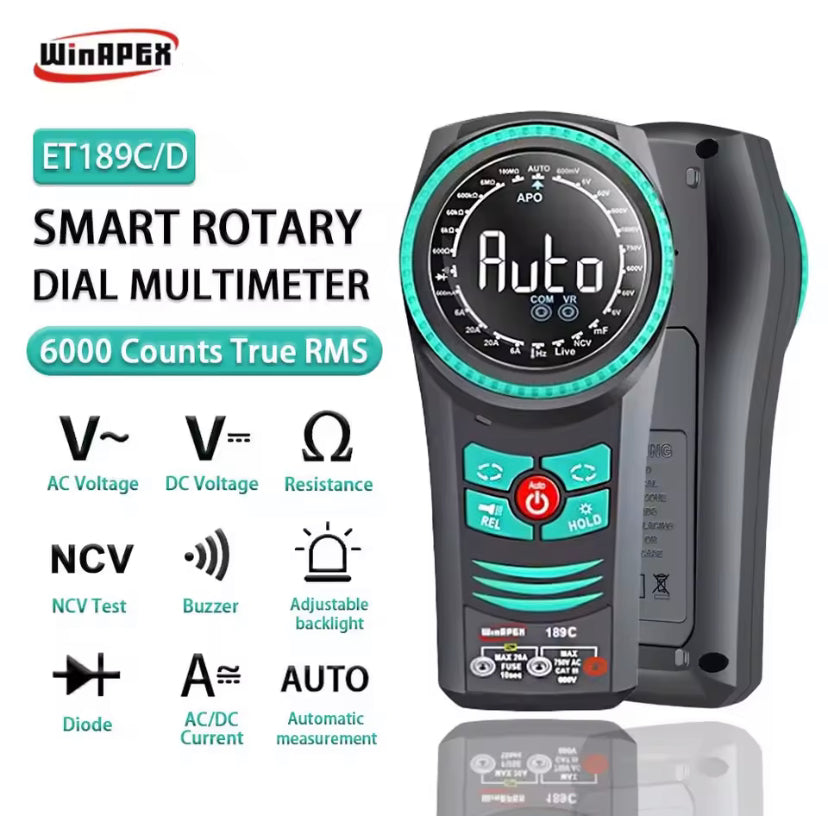

🧪 WINAPEX 189C / 189D Smart Rotary Digital Multimeter – 6000 Counts

✅ Key Features:

  • Smart rotary dial for intuitive function selection

  • Measures AC/DC voltage, DC current, resistance, capacitance, frequency, and temperature (189C only)

  • Non-contact voltage (NCV) detection for live wire safety

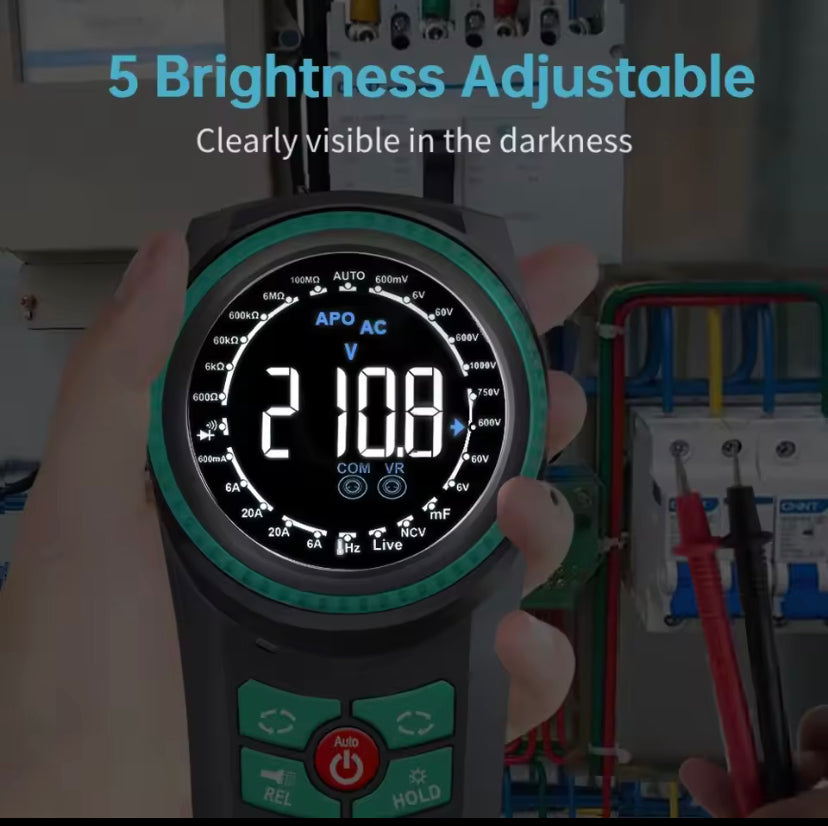

  • Large backlit display with 6000-count resolution

  • Auto-ranging and manual hold functions

  • Audible buzzer for continuity testing

  • Overload protection for all ranges

  • Low-battery indicator

📊 Measurement Ranges:

Function Range
DC Voltage 600 mV / 6 V / 60 V / 600 V / 1000 V
AC Voltage 6 V / 60 V / 600 V / 750 V
DC Current 60 mA / 600 mA / 10 A
Resistance 600 Ω to 60 MΩ
Capacitance 6 nF to 100 mF
Frequency 10 Hz to 10 MHz
Temperature (189C) -20 °C to 1000 °C
NCV Detection Yes – Live wire detection with buzzer and LED

⚙️ Physical Specs:

  • Display: 6000 counts, backlit LCD

  • Power: 2 × AA batteries

  • Size: Approx. 153 × 70 × 33 mm

  • Weight: ~200 g

  • Operating Temperature: 0°C to 40°C

  • Relative Humidity: ≤80% RH

  • Auto power-off after inactivity
