General

• Display: 5999-count LCD with backlight

• Display brightness: adjustable

• Power: 3.7 V rechargeable lithium battery

• Battery capacity: approx. 750 mAh

• Battery life: up to about 20 hours

• Charging: USB Type-C

• Auto power-off: yes (after inactivity)

• Clamp jaw opening: approx. 22 mm

• Weight: approx. 280 g (varies slightly by seller)

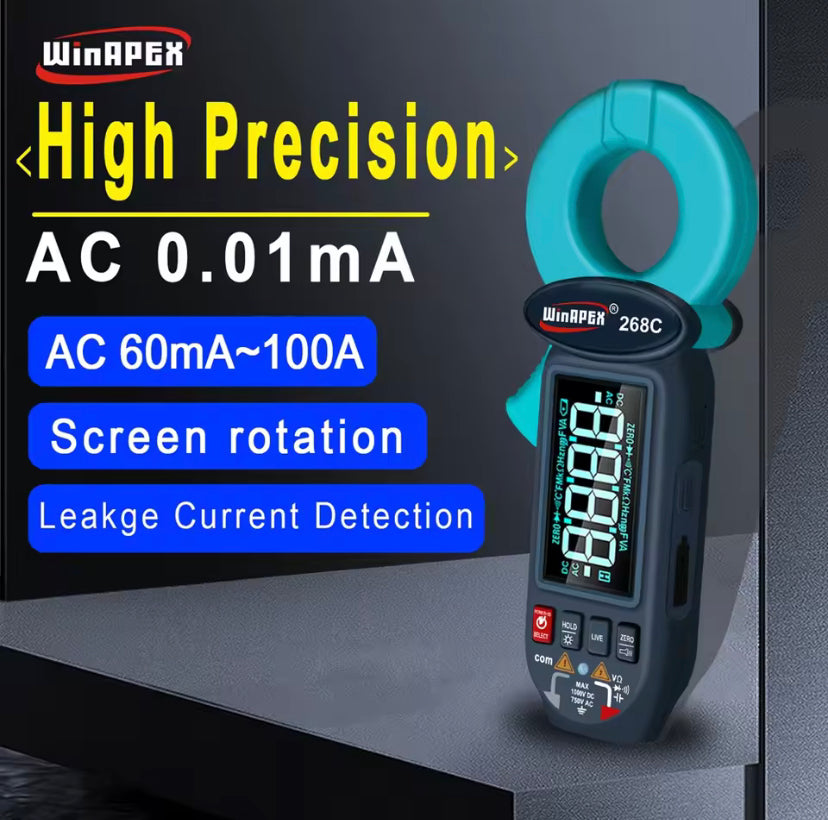

• Screen rotation: supported

• Flashlight: yes

Measurement Capabilities

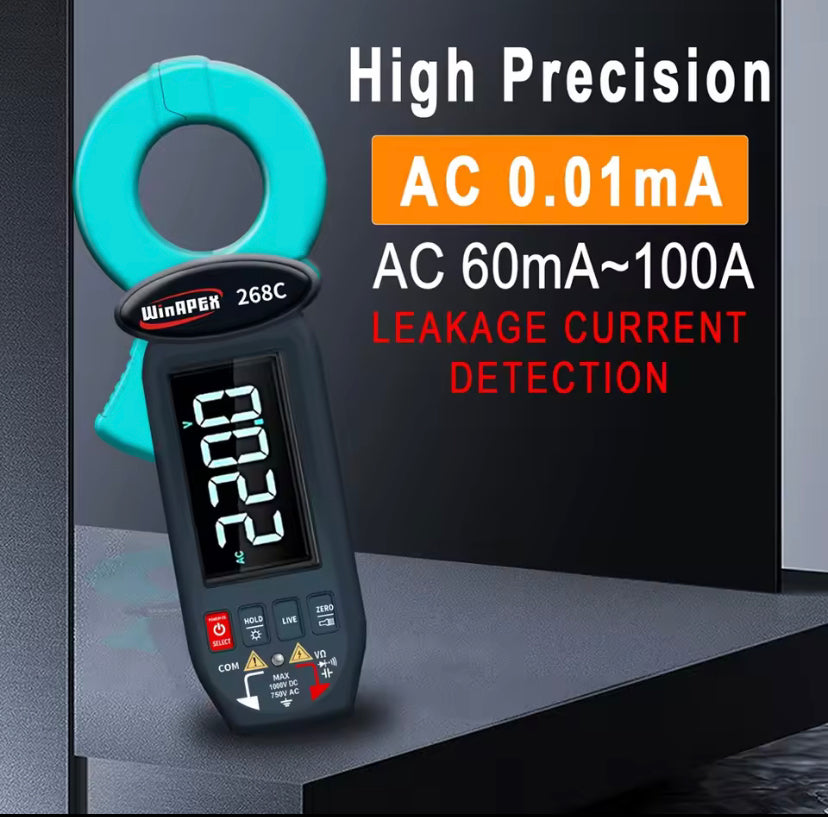

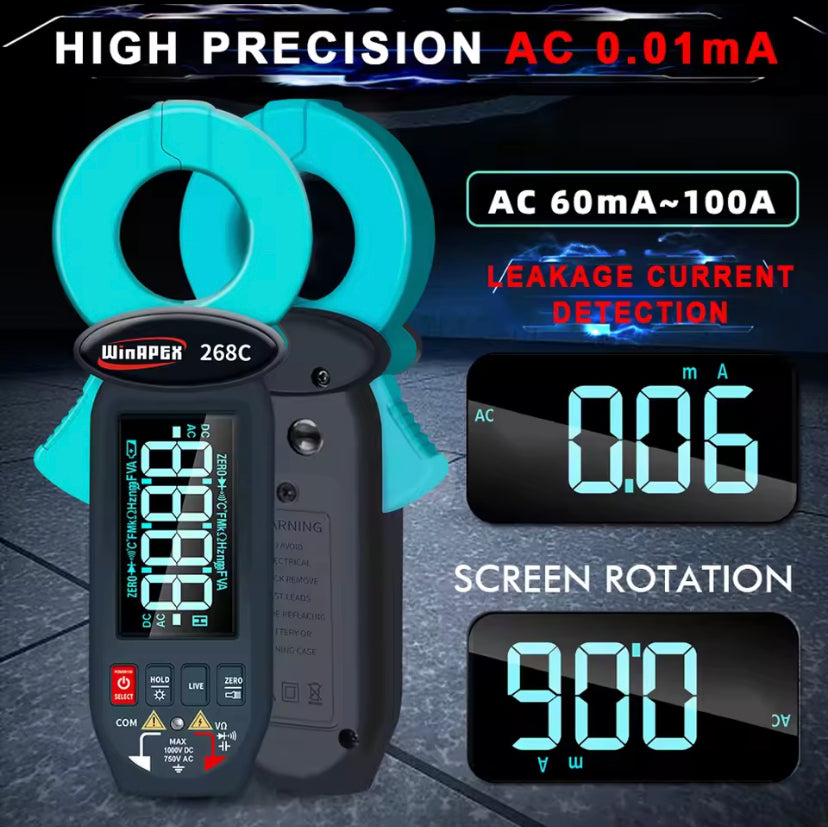

AC Current (Clamp)

• Range: 60 mA to 100 A

• Resolution: 0.01 mA

• Purpose: includes precision leakage current measurement

AC/DC Voltage

(Values not officially standardized across sellers, but generally consistent with the 268-series.)
Typical ranges:

• 6 V

• 60 V

• 600 V

• 1000 V (DC max)

• 750 V (AC max)

Resistance

Common ranges for this model family:

• 600 Ω

• 6 kΩ

• 60 kΩ

• 600 kΩ

• 6 MΩ

• 60 MΩ

Continuity / Diode Test

• Audible continuity buzzer

• Forward voltage diode check

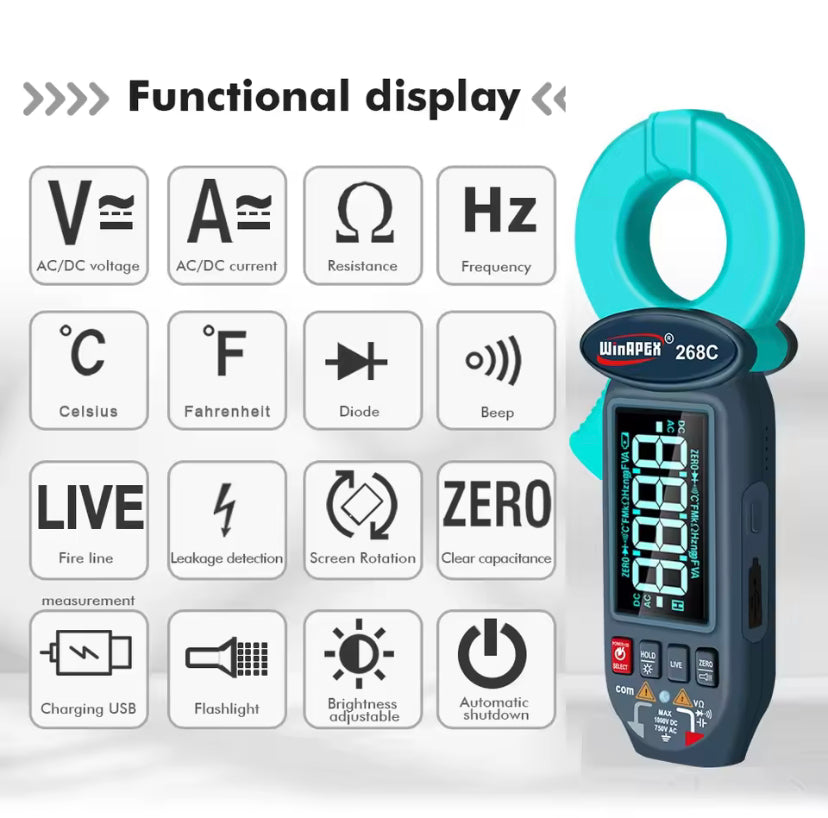

Other Electrical Features

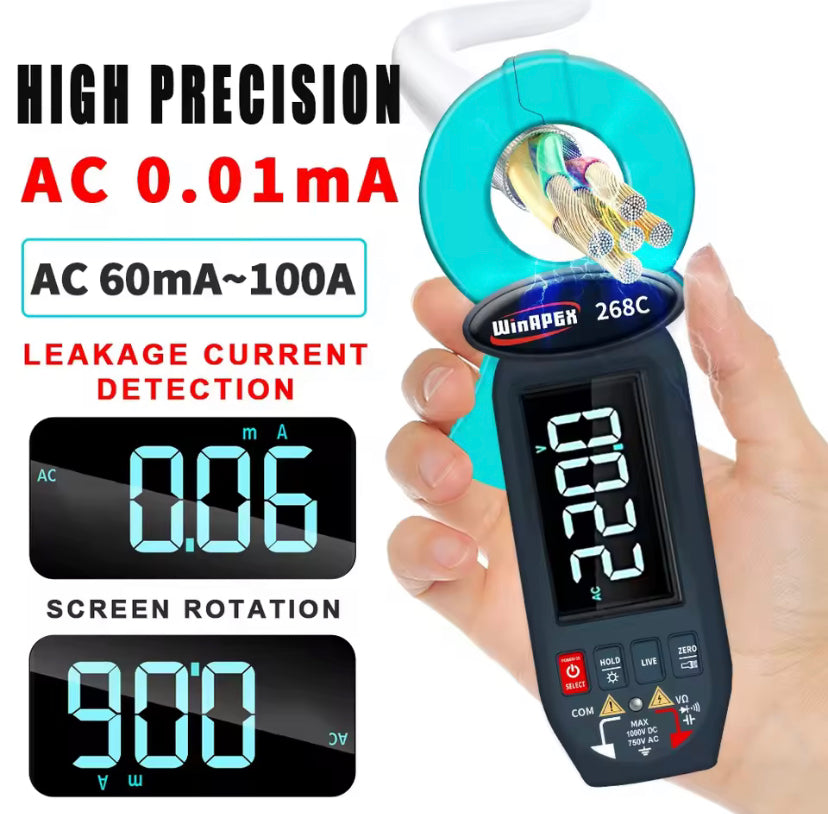

• Leakage current detection

• NCV (non-contact voltage detection)

• LIVE line detection (single-probe detection mode)

Extra Functions

• Display rotation

• Auto shutdown

• Backlight

• Flashlight

• Zeroing (often available in leakage current mode)
