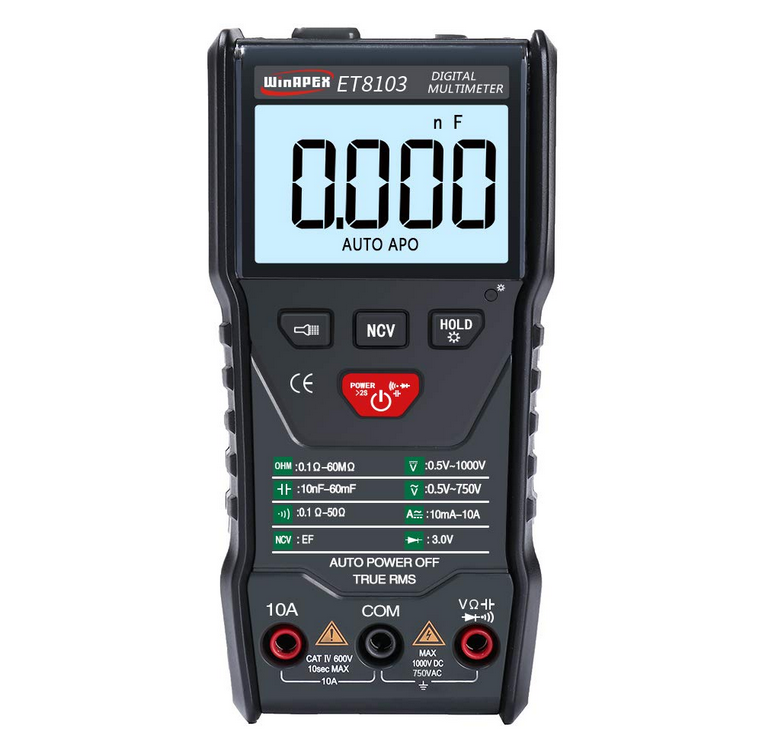

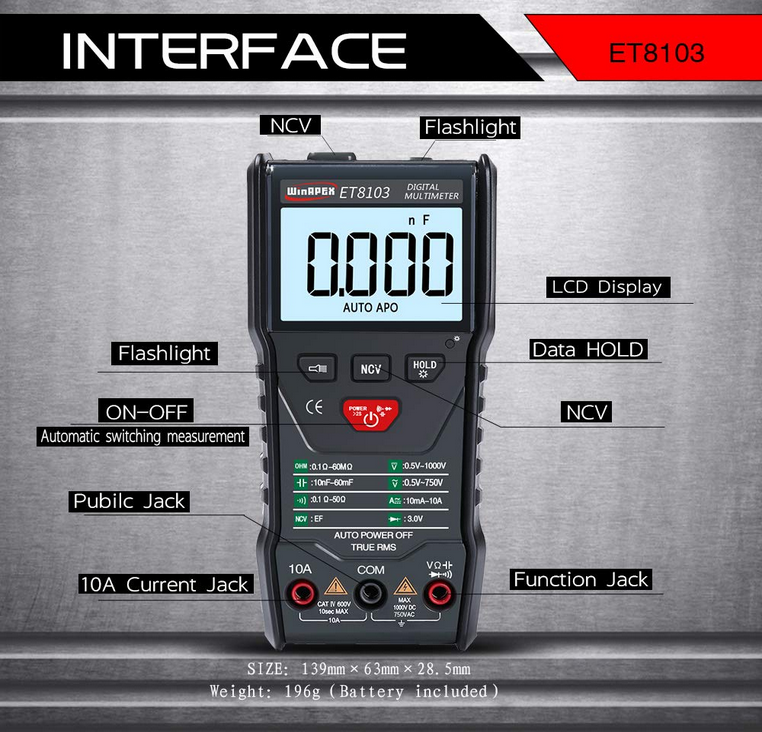

WinAPEX ET8103 LCD Display Portable Auto Measure Multimeter AC/DC Voltage Current Capacitance Electric Field Resistance Meter True RMS 6000 Counts Display with Flashlight Function

⚙️ General Specifications

• Display: 6000-count LCD display

• Power supply: 2 × AAA batteries (not included)

• Material: PVC plastic housing

• Color: Black

• Dimensions: approx. 139 × 63 × 28.5 mm

• Weight: approx. 199 g

🔋 Measurement Ranges & Accuracy

DC Voltage:

• Ranges: 6 V / 60 V / 600 V / 800 V

• Accuracy: ±(0.5% + 4 digits)

AC Voltage:

• Ranges: 6 V / 60 V / 600 V / 750 V

• Accuracy: ±(0.8% + 3 digits)

DC Current:

• Ranges: 6 A / 10 A

• Accuracy: ±(0.8% + 8 digits)

AC Current:

• Ranges: 6 A / 10 A

• Accuracy: ±(1.0% + 8 digits)

Resistance:

• Ranges: 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ

• Accuracy: ±(0.8% + 5 digits)

Capacitance:

• Ranges: 60 nF / 600 nF / 6 µF / 60 µF / 600 µF / 6 mF / 60 mF (up to ~30 mF practical)

• Accuracy: ±(2.5% + 60 digits at lower ranges)

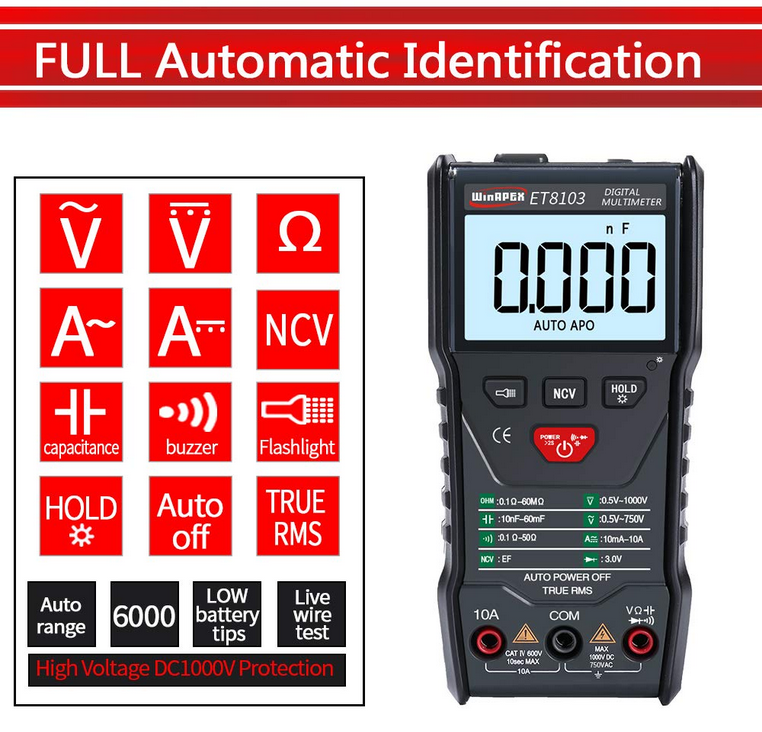

🔧 Functions & Features

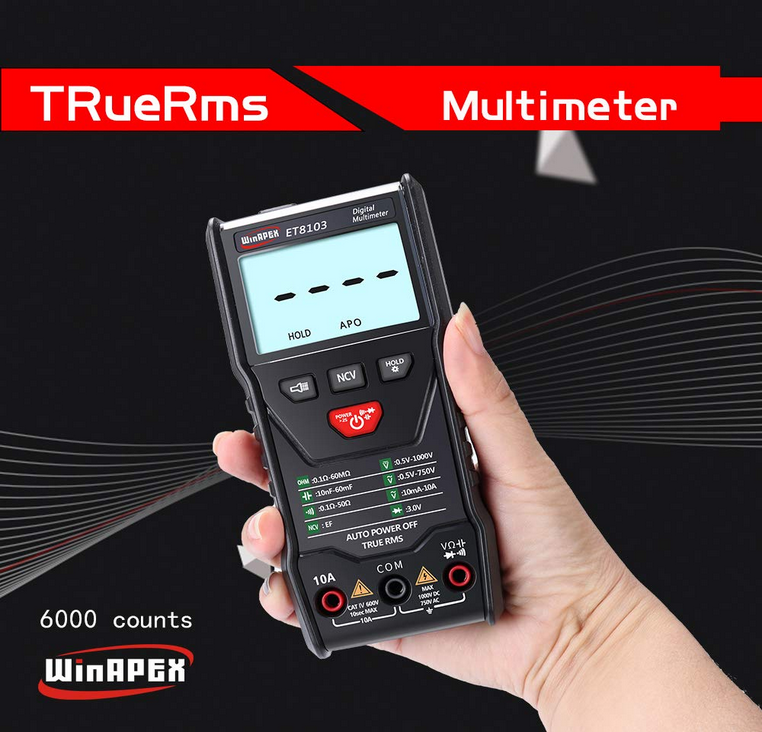

• True RMS measurement

• Auto-range and auto-polarity detection

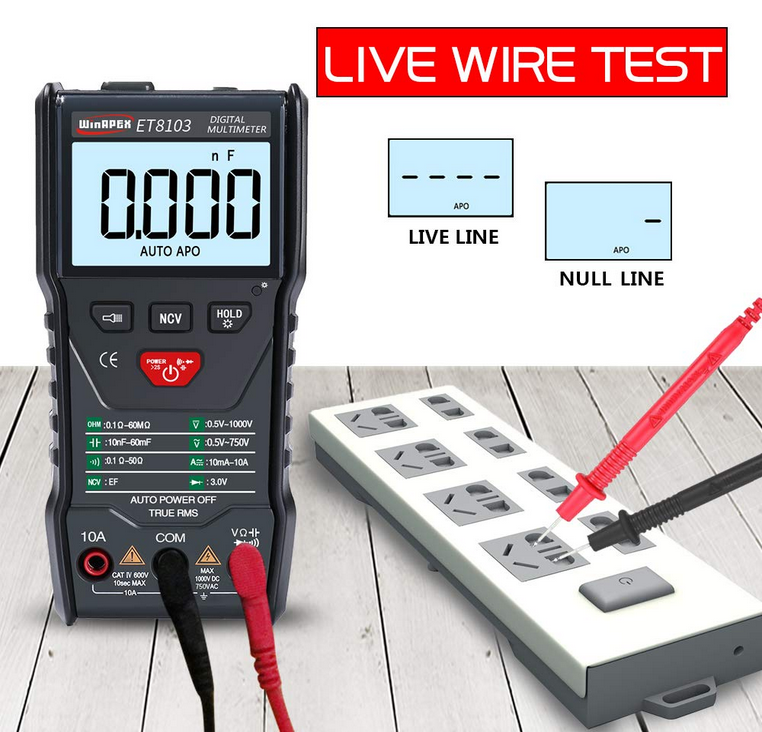

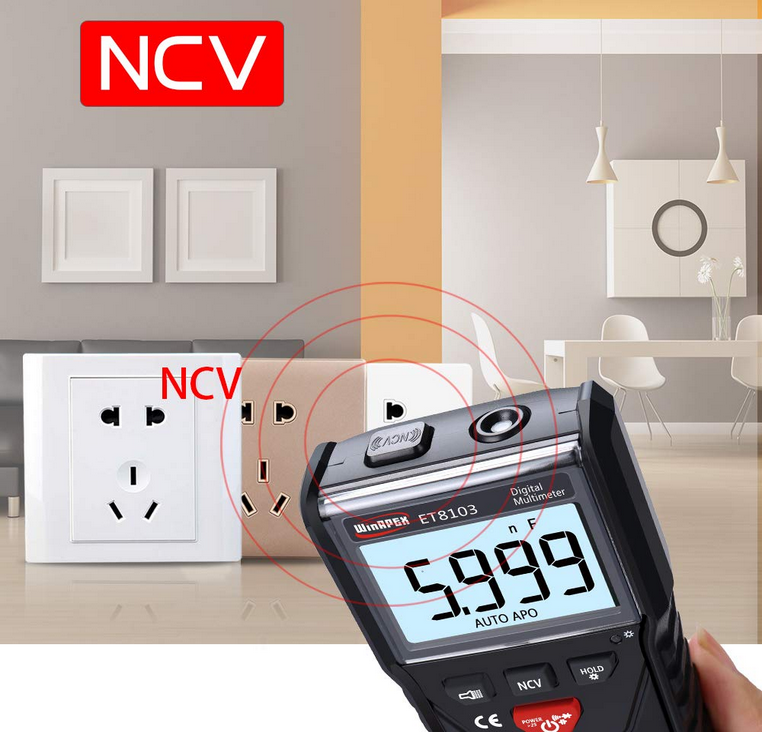

• NCV (Non-Contact Voltage) detection for live wire identification

• Continuity and diode test

• Data hold function

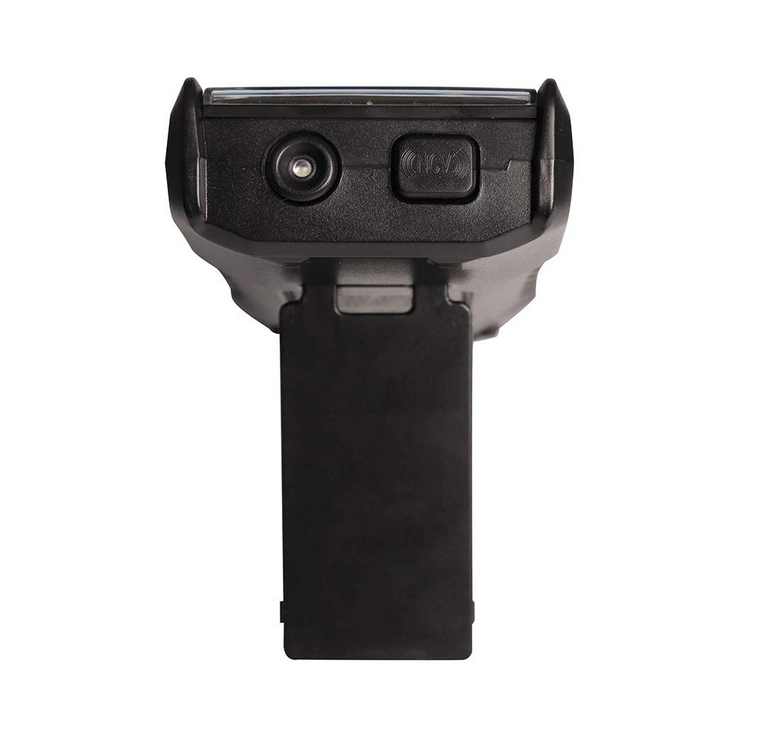

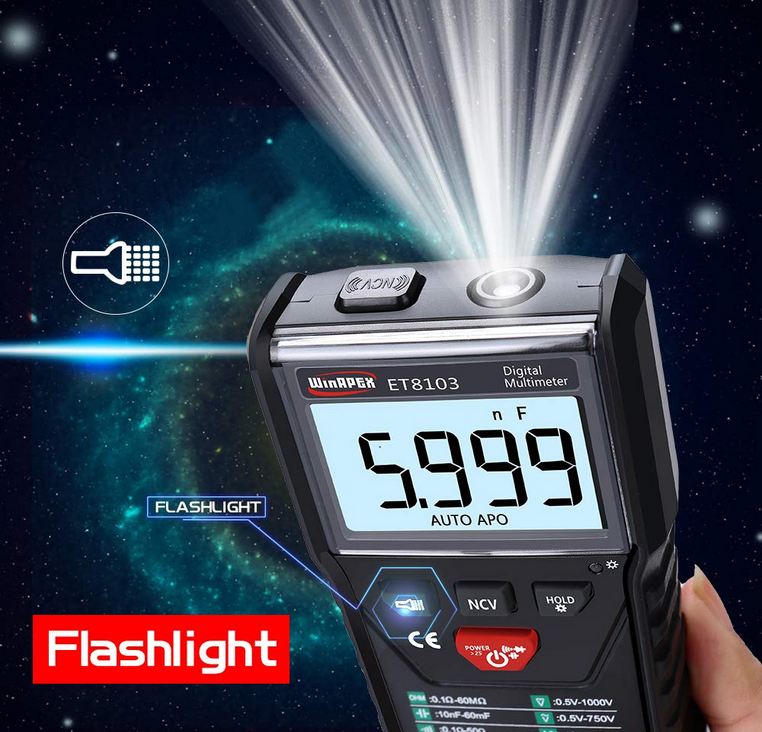

• Backlight and built-in flashlight

• Low battery indication

• Auto power-off after ~15 minutes of inactivity

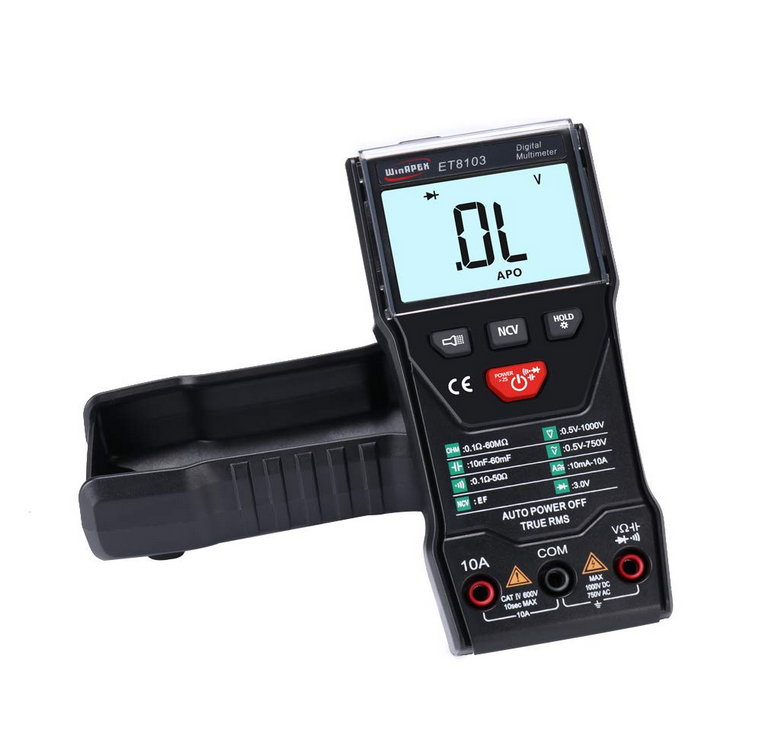

• Shock-resistant protective sleeve
