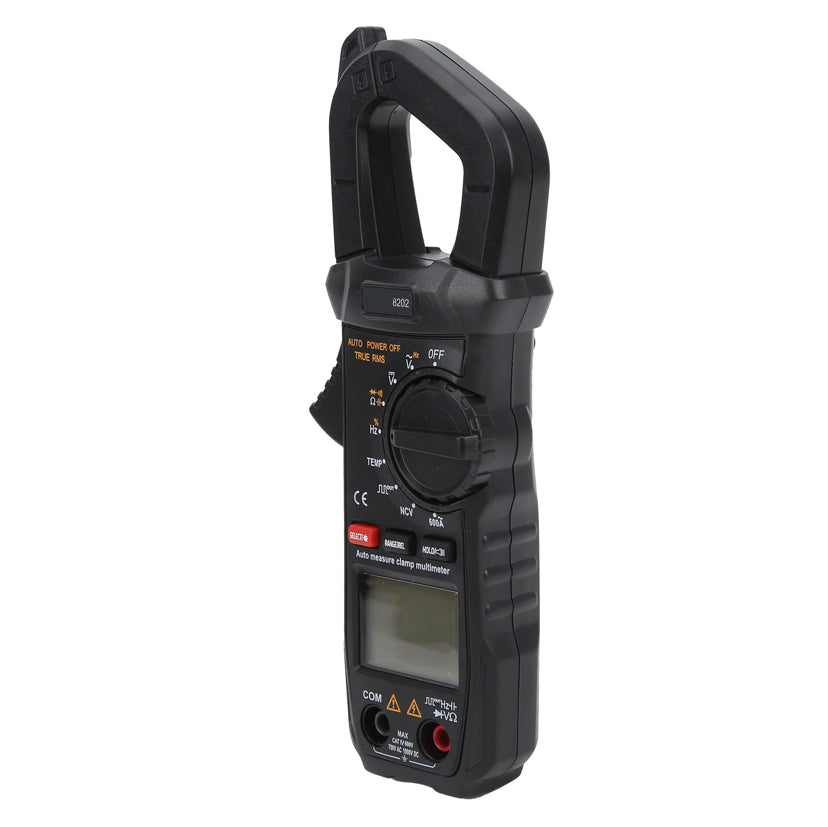

WINAPEX ET8202 Clamp Meter Auto Range AC 600A with Temperature Capacitance Square Wave

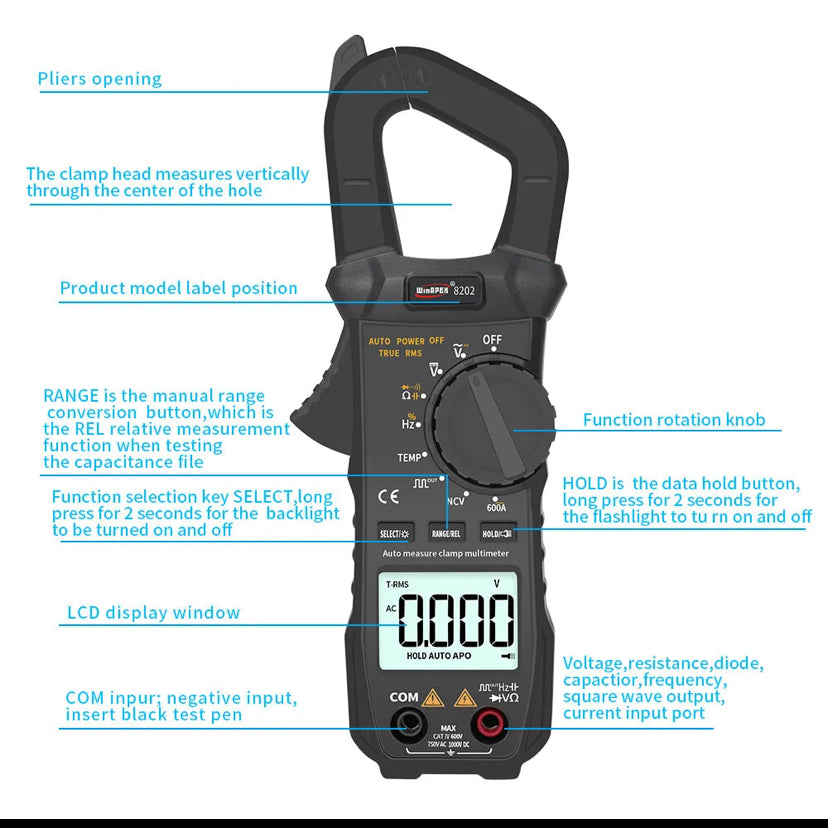

General Features

• 6000-count display

• True RMS measurement capability

• Auto-ranging functions

• Built-in backlight for display

• Flashlight feature for low-light use

• Non-contact voltage (NCV) detection included

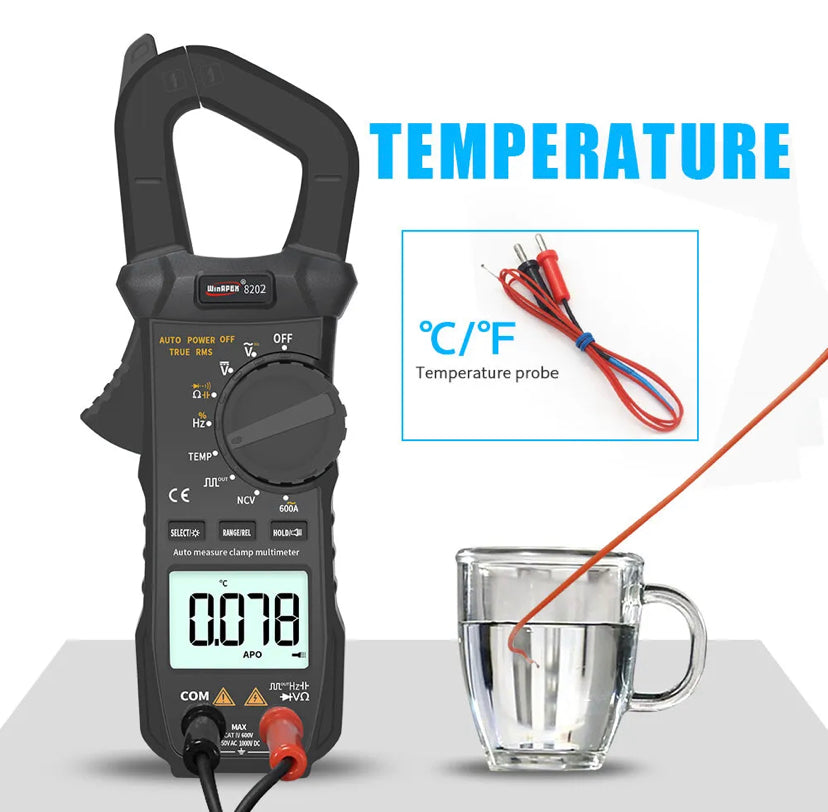

• Temperature measurement using a K-type probe

• Compact and lightweight design

• Power supply: 2 × AAA (1.5 V) batteries

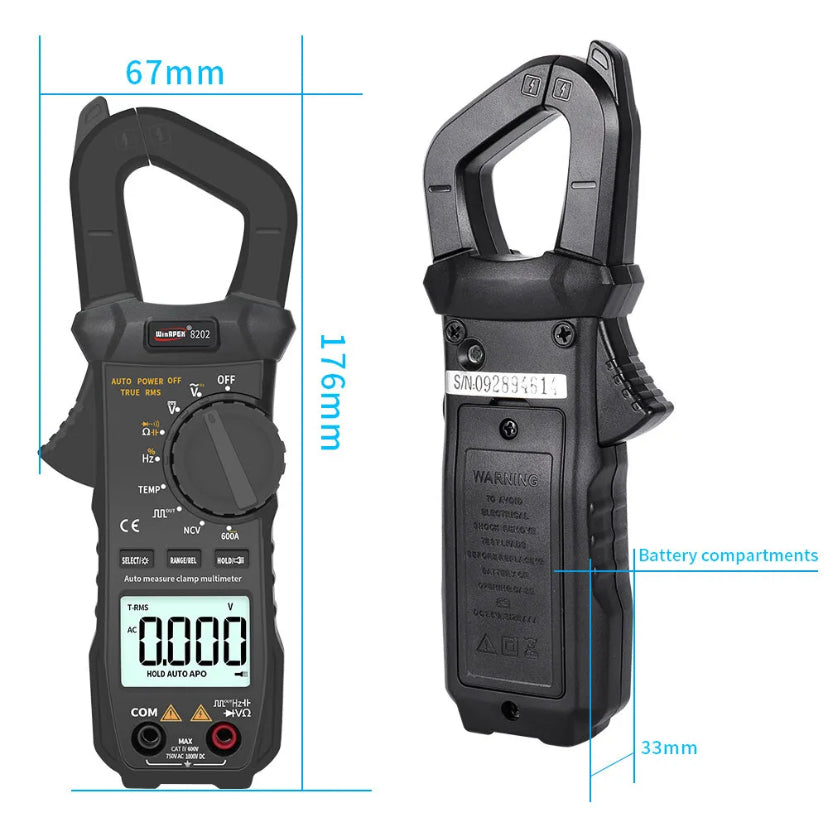

• Approximate dimensions: 176 × 67 × 33 mm

• Approximate jaw opening of the clamp: ~27 mm

Measurement Ranges

• AC Current (Clamp): 6 A / 60 A / 600 A

• AC Voltage (ACV): 6 V / 60 V / 600 V / 750 V

• DC Voltage (DCV): 6 V / 60 V / 600 V / 1000 V

• Resistance: from approx. 0.1 Ω up to ~40 MΩ

• Capacitance: e.g., ranges from ~10 nF up to ~60 mF

• Frequency: from ~10 Hz up to ~10 MHz (varies by mode)

• Temperature: from approx. –20 °C up to ~1000 °C

Additional Notes

• The true RMS capability means it will give more accurate readings on non-sinusoidal signals (important for modern electrical/electronic work).

• NCV detection allows you to detect live wires without direct contact, which adds a safety layer when working on installations.

• The clamp function makes current measurement easier without breaking the circuit.

• Because it’s a combined clamp + multimeter style unit, ensure you check the safety rating (CAT II/III) and maximum inputs for your region before using in heavy-duty or industrial settings.

• Given the jaw opening (~27 mm), it’s suitable for moderate-size cables—it may not fit very large bus bars or cables.
