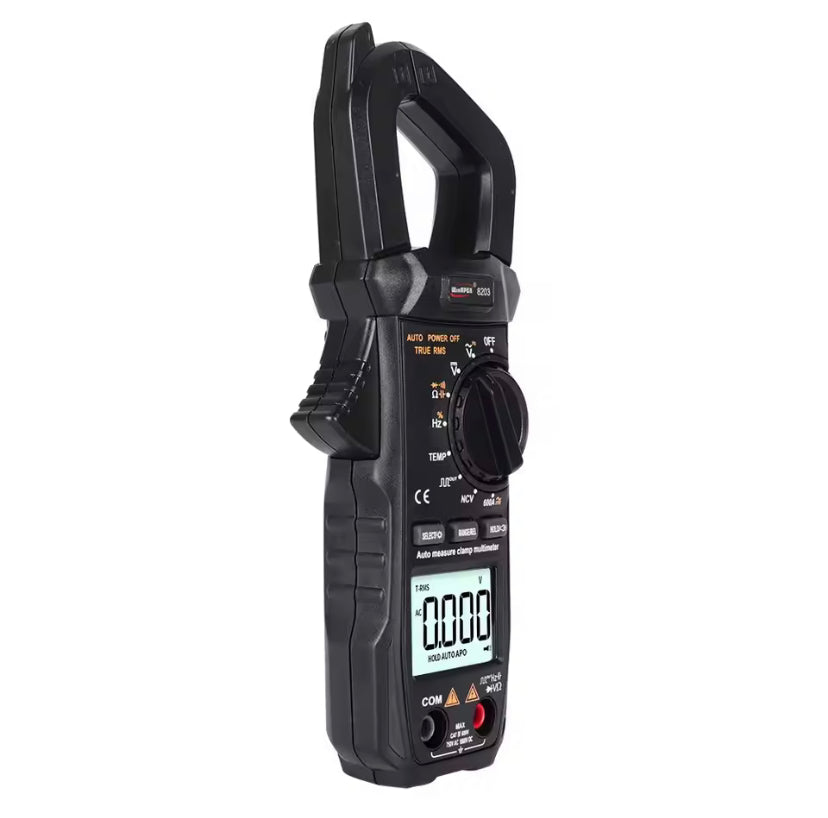

WINAPEX ET8203 600A AC DC Pocket Clamp Meter 6000 Counts Digital Multimeter Current Voltage Resistance Diode Temp Buzzer Test

General Features

• Model: ET8203

• Display: 5999-count auto-ranging digital display

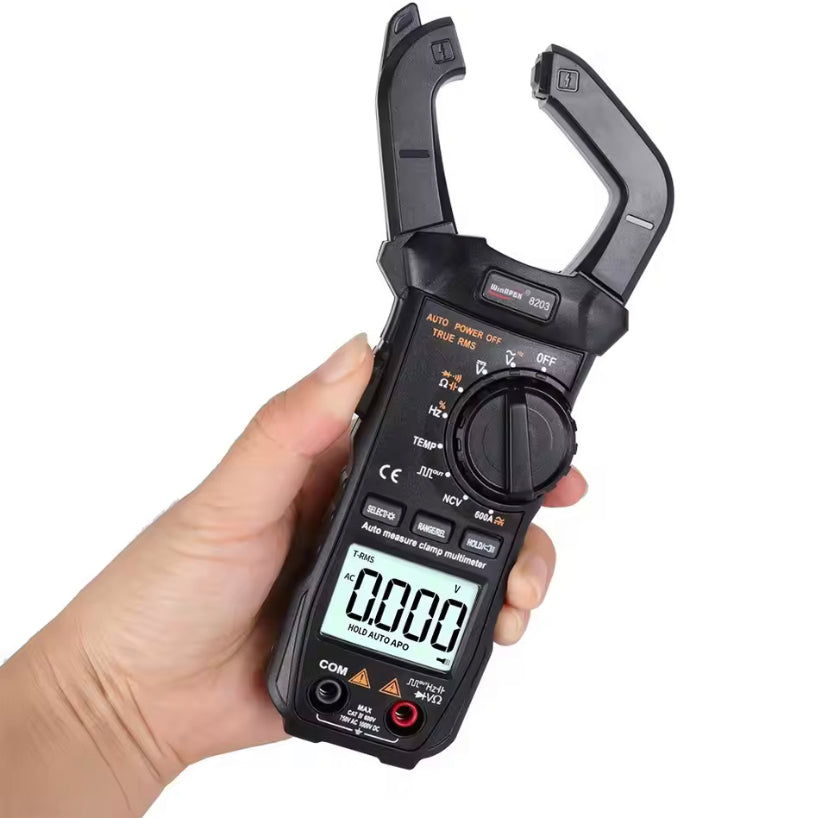

• Jaw opening for clamp: approx. 40 mm

• True RMS capability (for AC voltage/current)

• Non-contact voltage (NCV) detection

• Auto-range, data hold, back-light LCD display

• Square-wave output functionality (in certain versions)

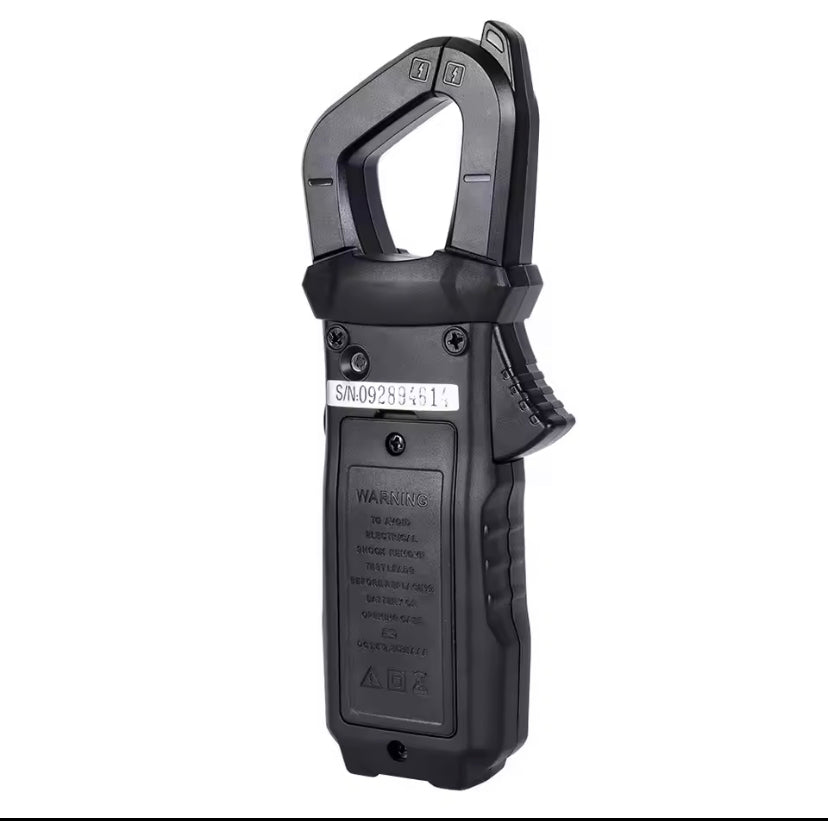

• Battery power: 2 × 1.5 V AAA batteries

• Dimensions: approx. 176 × 67 × 33 mm

• Weight: approx. 305 g

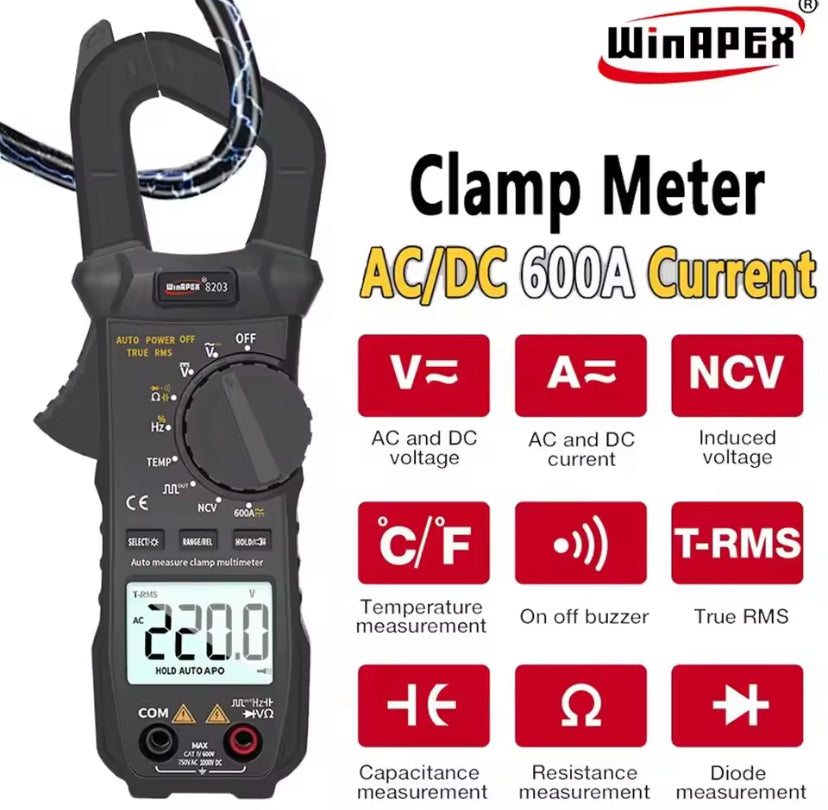

Measurement Ranges & Capabilities

Voltage

• DC Voltage: 6 V, 60 V, 600 V, 1000 V

• AC Voltage: 6 V, 60 V, 600 V, 750 V

Current (Clamp)

• AC Current: 60 A, 600 A

• DC Current: 60 A, 600 A

Resistance

• Ranges: 600 Ω, 6 kΩ, 60 kΩ, 600 kΩ, 6 MΩ, 40 MΩ

Capacitance

• Ranges: 60 nF, 600 nF, 6 µF, 60 µF, 600 µF, 6 mF, 30 mF

Frequency

• From 10 Hz up to 10 MHz (various steps)

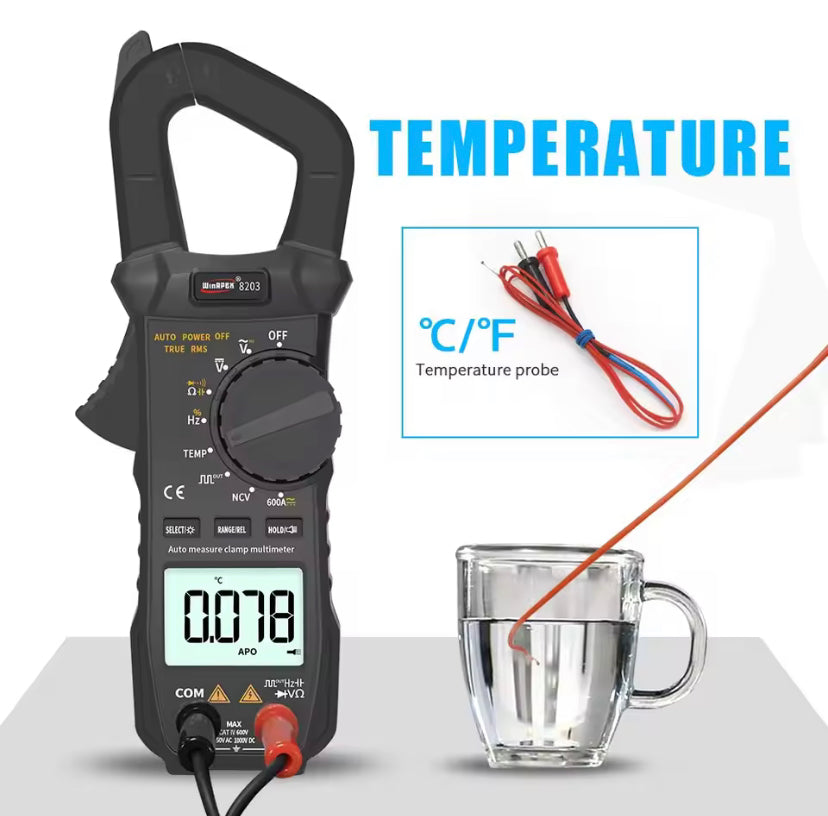

Temperature

• Range: −20 °C to approx. +1000 °C (−4 °F to ~1832 °F)

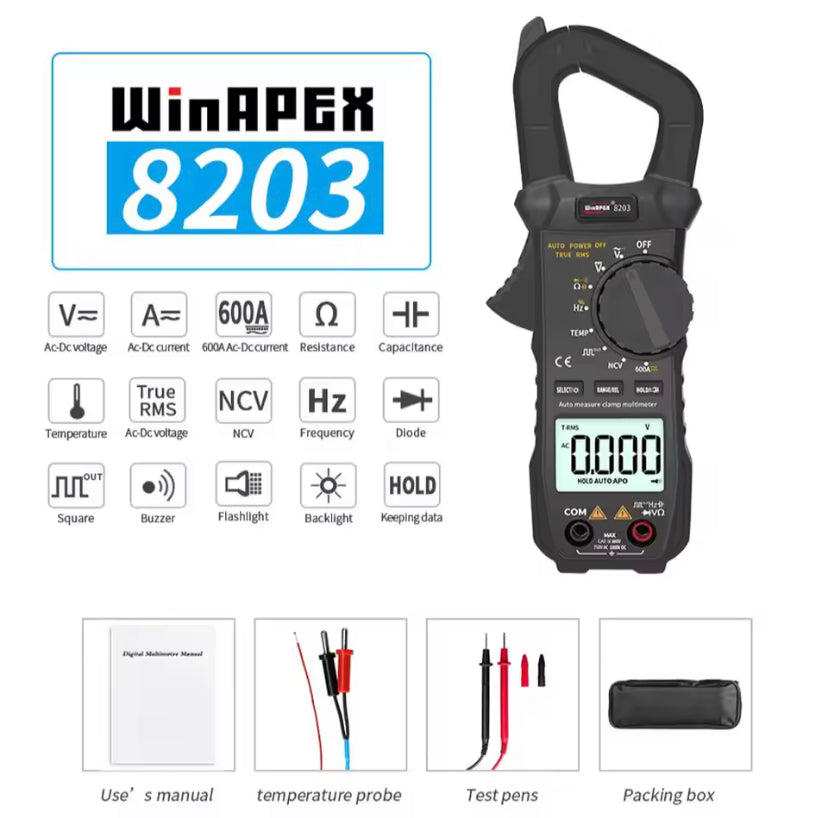

Key Additional Functions

• Zero-line / fire-line testing

• Diode test & continuity buzzer

• Auto power-off

• Flashlight built into the unit for low-light environments
