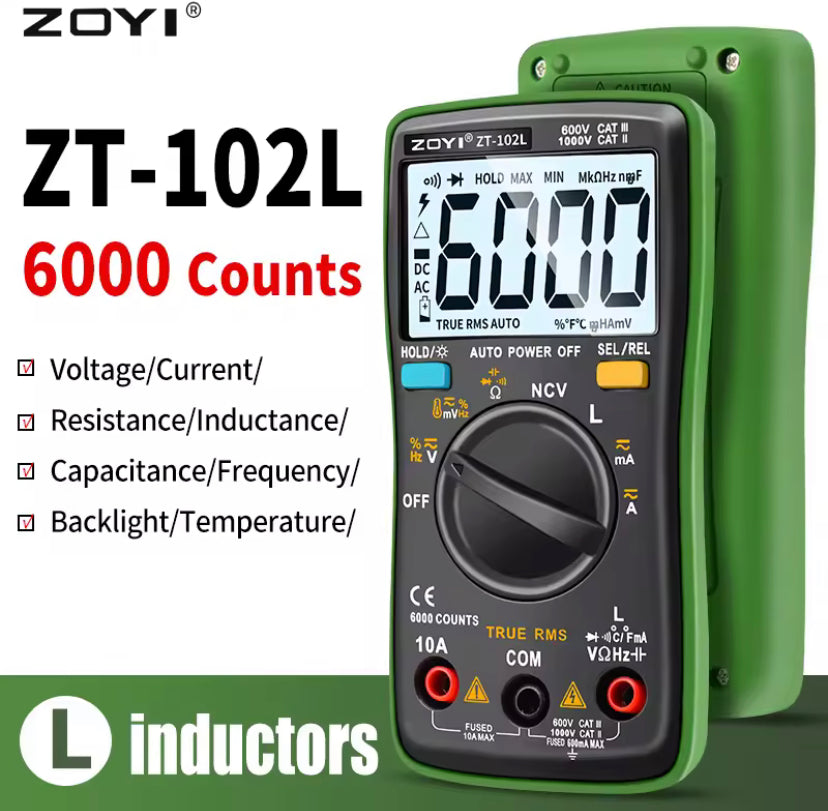

ZOYI New ZT102L Digital Multimeter 6000 Counts Auto Range Backlight AC/DC Ammeter Volt Ohm Tester Portable Meter Multimetro

ZOYI New ZT102L Digital Multimeter — Specifications

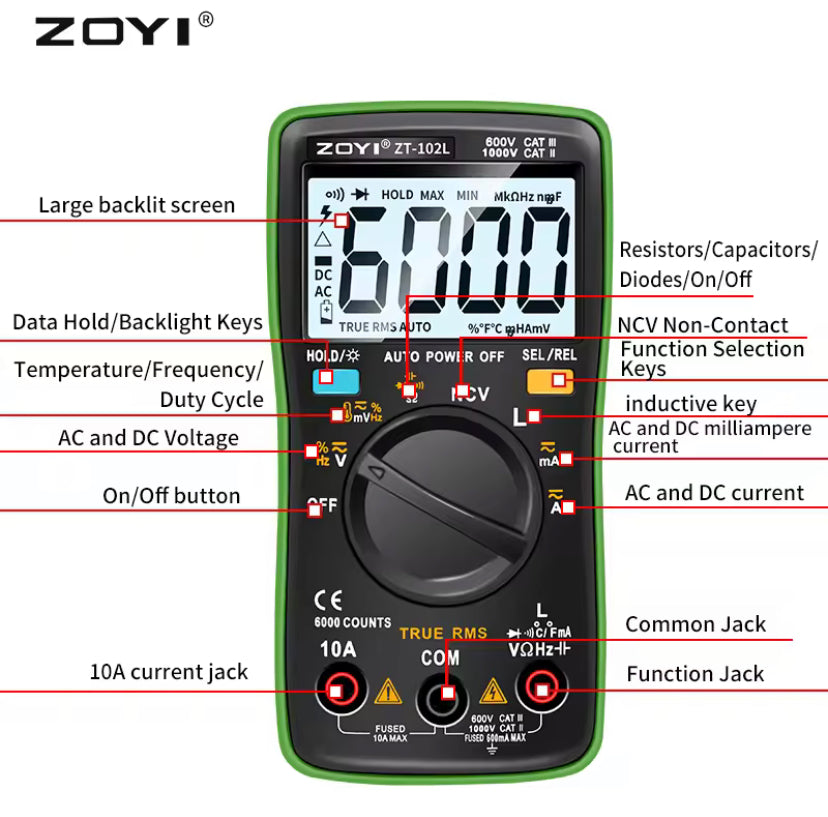

General

• 6000-count LCD display with backlight

• Auto-ranging

• True RMS (AC measurements)

• Data Hold

• Auto power-off

• Low battery indicator

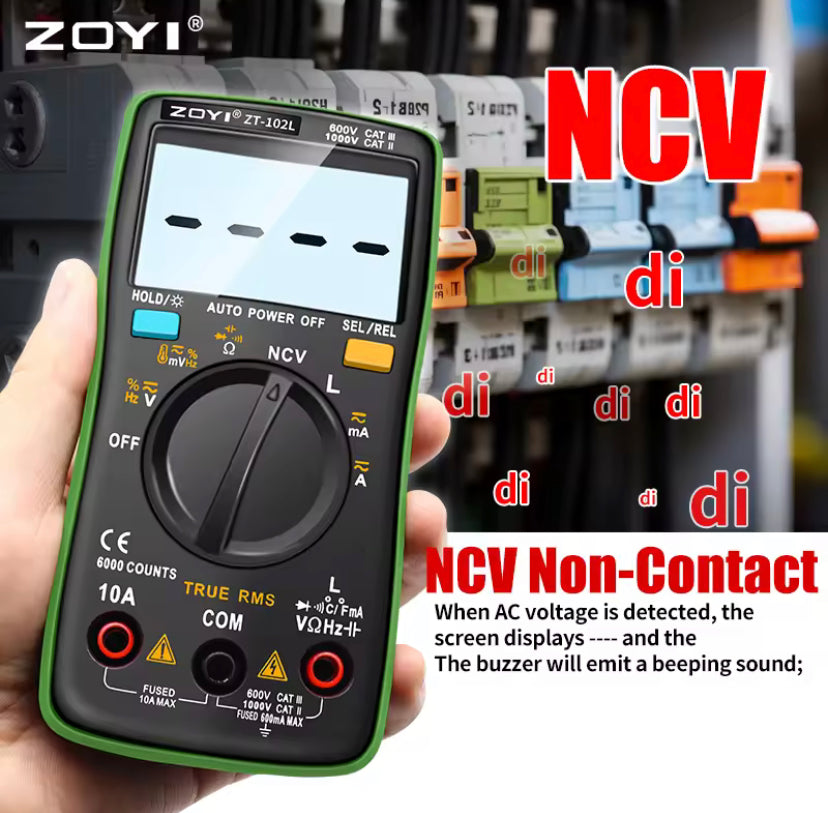

• Non-Contact Voltage (NCV) detection

• Continuity buzzer

• Diode test

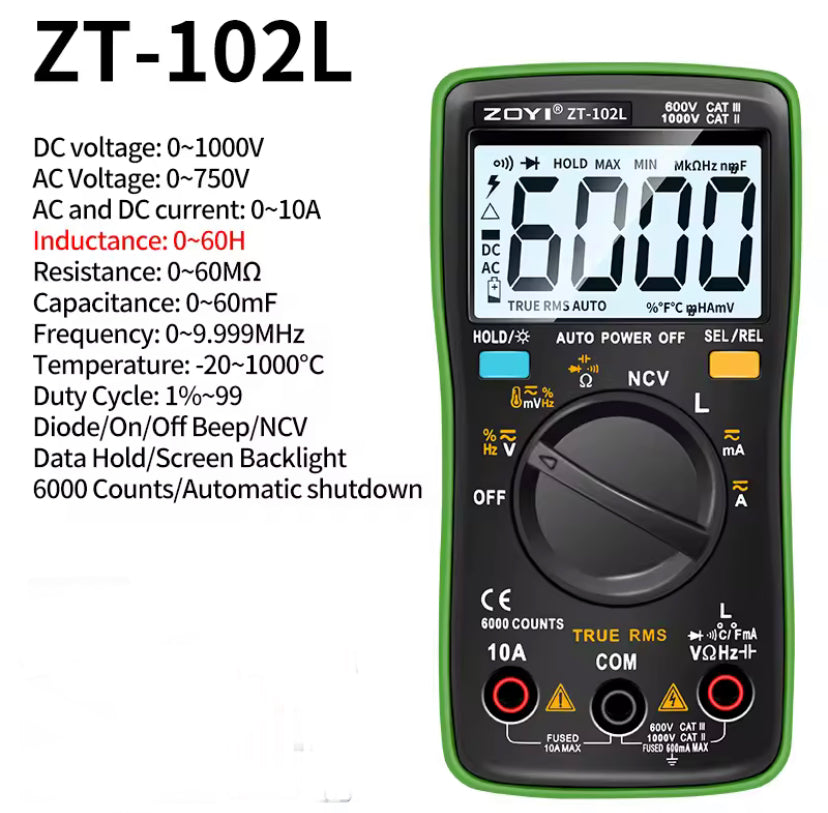

Voltage

• DC Voltage: 0.001 V – 1000 V
  Accuracy: ±(0.5% + 3)

• AC Voltage: 0.01 V – 750 V
  Accuracy: ±(1.0% + 3)

Current

• DC Current: up to 10 A
  Accuracy: ±(1.2% + 3)

• AC Current: up to 10 A
  Accuracy: ±(1.5% + 3)

Resistance

• 0.1 Ω – 60 MΩ

• Continuity beeper included

Capacitance

• 0.001 nF – 60 mF

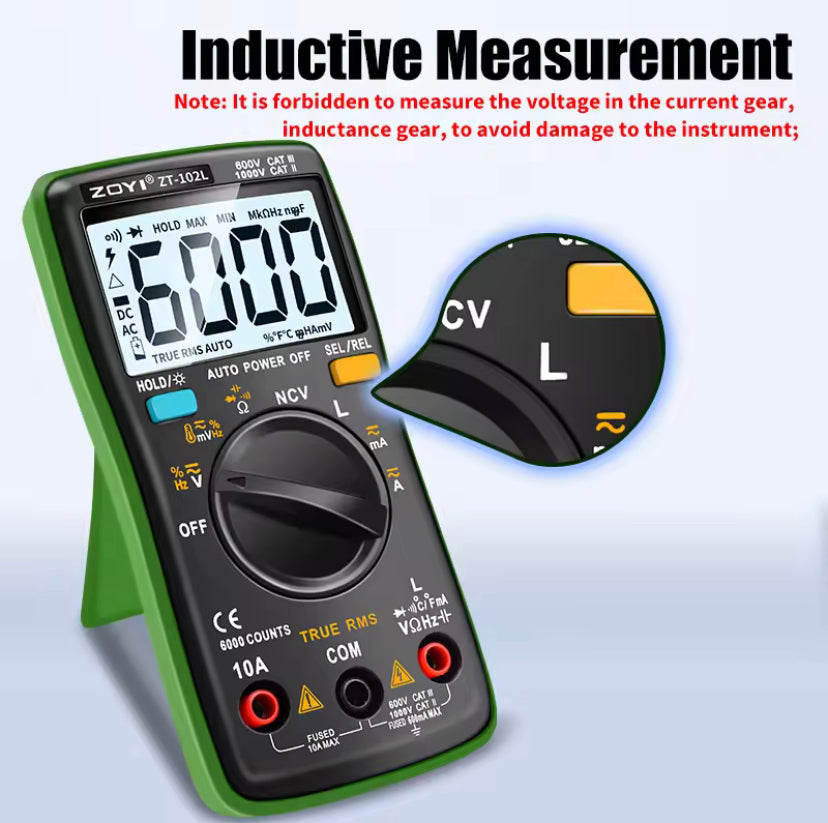

Inductance

• 0.01 mH – 60 H

Frequency & Duty Cycle

• Frequency: 0.01 Hz – 9.999 MHz

• Duty cycle: 1% – 99%

Temperature

• −20 °C to 1000 °C (with probe)

Power & Physical

• Power supply: 2 × AAA batteries

• Dimensions: approx. 130 × 65 × 32 mm

• Weight: approx. 114 g

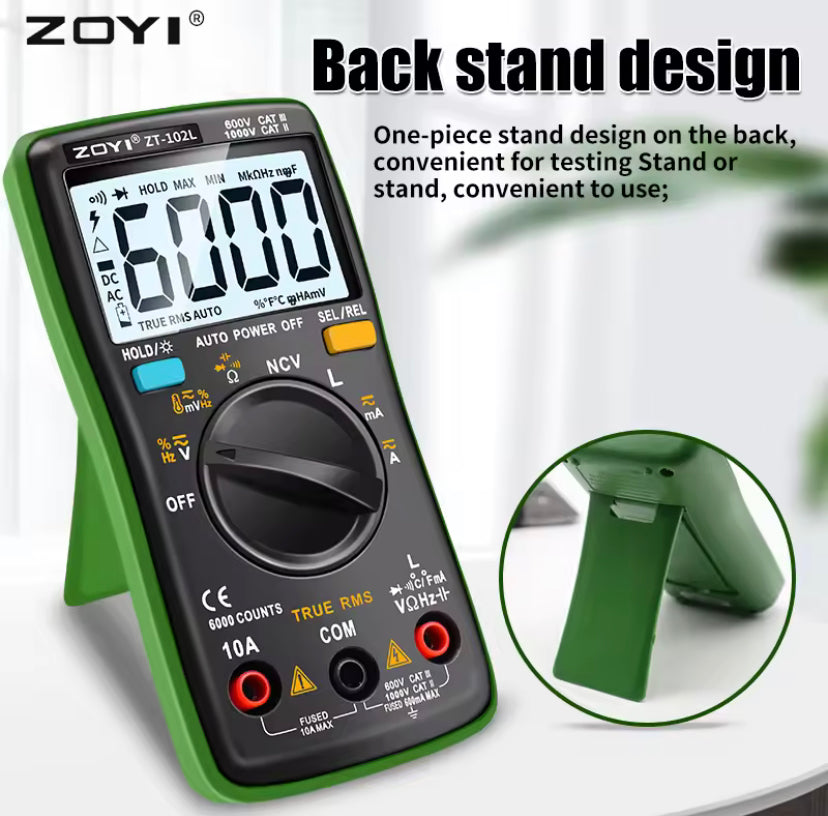

• Compact ABS housing with rear stand
